System formulas are created in the S Formulas setup screen and are
used like the dimension formulas discussed earlier in this chapter.
Unlike dimension formulas, System dimensions can be used by any
part.
To create a system formula:
U Highlight the Label Name field
U Select a System Label using the INC or DEC soft key
U Press the ENTER key
U Enter the desired formula
U Press the FINISH key
Globals setup screen
The Globals setup screen shows the current state of global variables
and is used like the Variables setup screen discussed earlier in this
chapter. Global variables are used like variables except that, unlike
variables, globals can be used by any part.

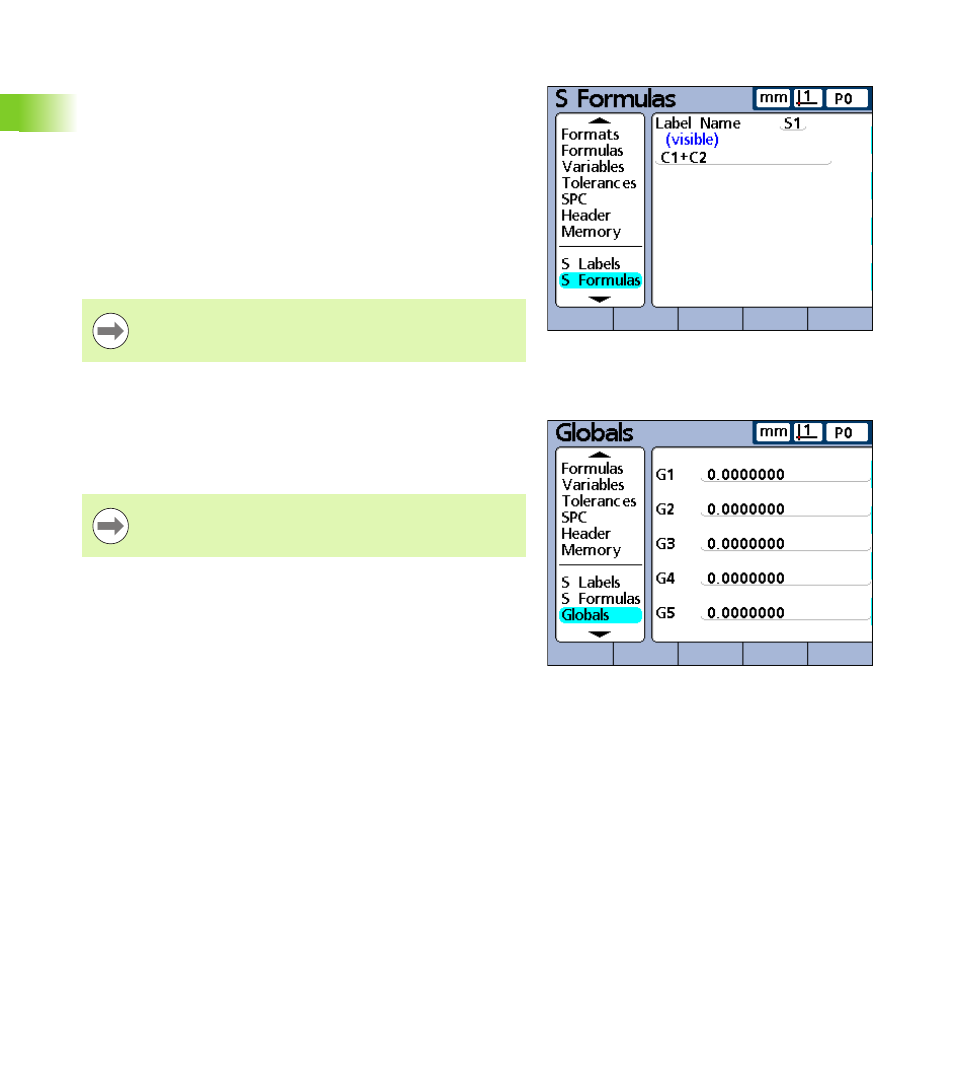

S Formulas setup screen.
Formulas are explained in the Formulas section on page
163.
Globals setup screen.
Global variable functions are defined in the Formula setup
screen. Formulas are explained in the Formulas section on
page 163.
