70

2 Installation and Specifications

2

.3

S

o

ft

wa

re

s

e

tu

p

Accessing and navigating the Setup menu

To access the Setup menu:

U

Press the MENU... soft key

U

Press the SETUP soft key. The Setup menu is displayed.

To navigate the Setup menu:

U

Use the up and DOWN ARROW cursor keys to scroll through the
Setup menu screens

U

Use the RIGHT ARROW cursor key to access setup screen menu
items

U

Use the UP and DOWN ARROW cursor keys to scroll through and
select a menu item

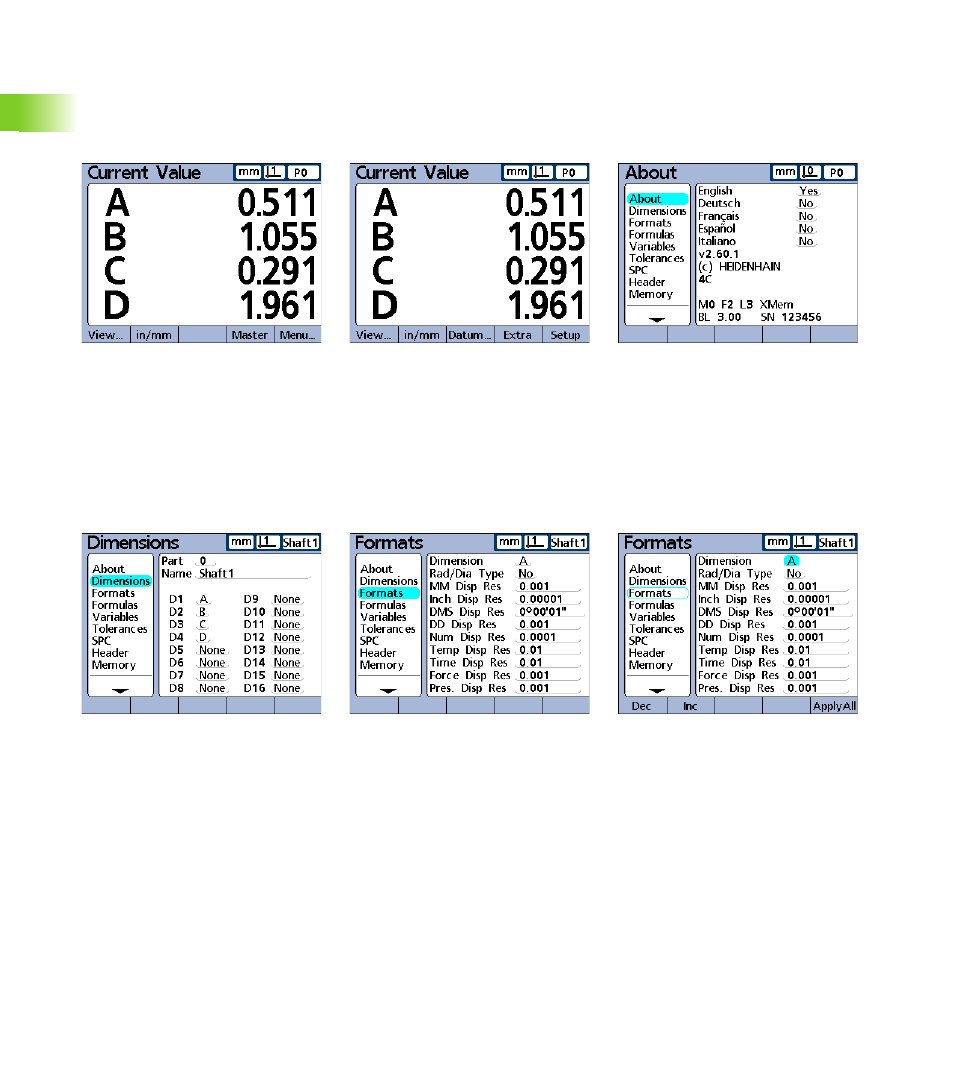

Press the MENU... soft key then press the SETUP soft key to display the Setup menu.

Pressing the DOWN ARROW cursor highlights next menu item, then pressing the RIGHT ARROW cursor highlights top screen
parameter.
