246 2 Installation and Specifications
2.4 F
o
rm
ulas
HwLx function
The hardware latch (HwLx) function is used to include the value of one
channel when a second reference channel reaches a specified value.
To insert the HwLx function:
U Press the OTHER... soft key
U Press the XTRA dimension key
U Use the arrow cursor keys to highlight HwLx
U Press the ENTER key

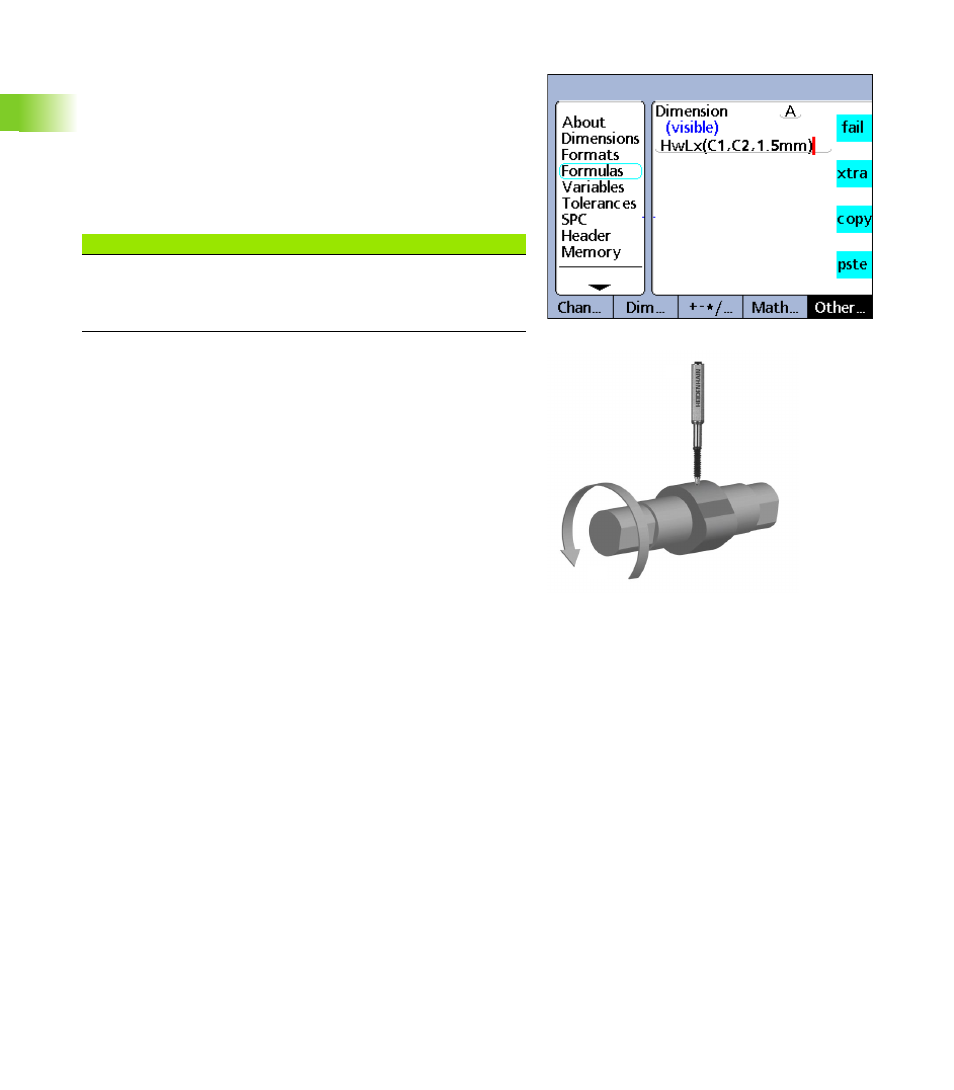

HwLx function.
C2
C1
HwLx function syntax
A = HwLx(Chan #1, Chan #2, value)
This function assigns the value of channel #2 when channel #1
reaches the specified value.
Example:
A = HwLx(C1,C2,1.5mm)
The rotational angle of the cam (C2) will be latched and the value
assigned to dimension A when the cam lift (C1) is 1.5 mm.
