ND 2100G GAGE-CHEK 205
2.4 F
o
rm
ulas

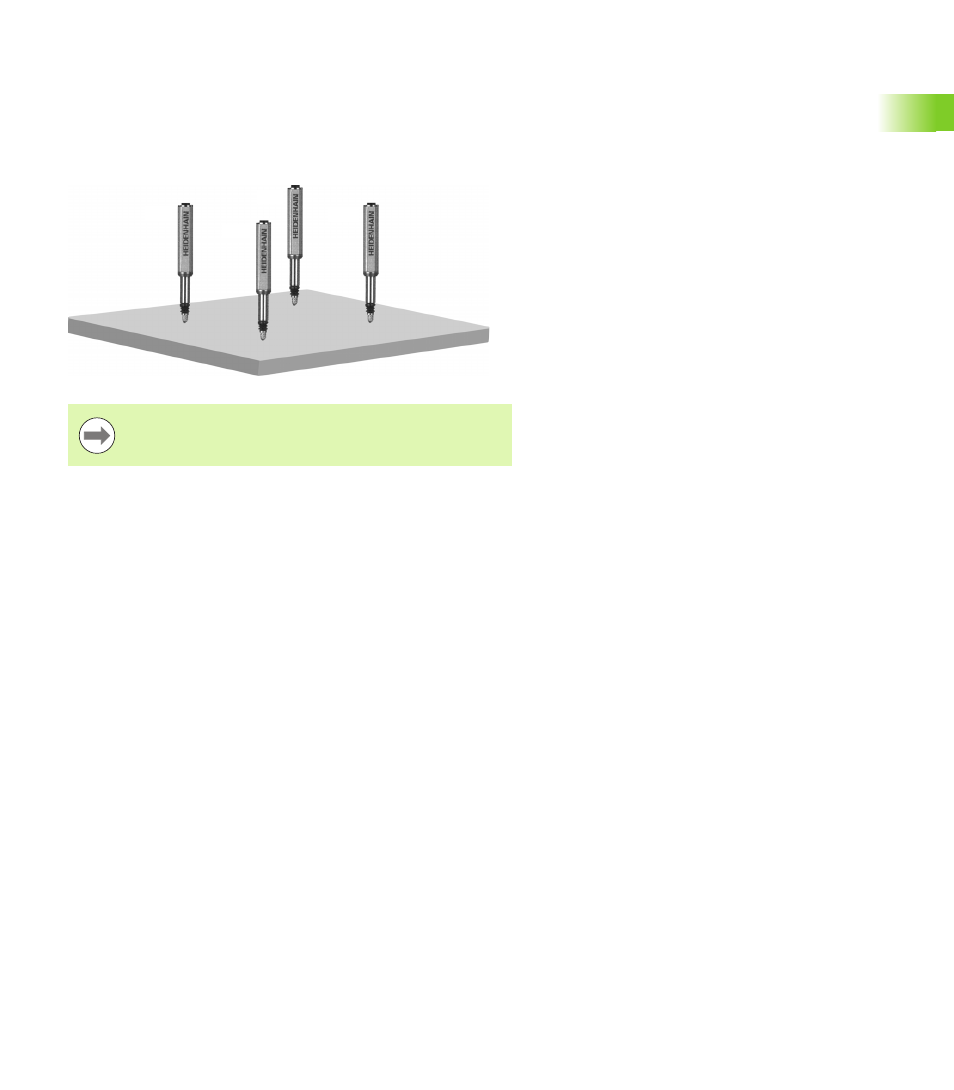

Min and max functions can be used to evaluate many inputs
simultaneously to produce a single result. The flatness measurement
in this example illustrates this (many channels to one dimension)
capability. The multiple channel inputs are distributed across a surface,
and then flatness is evaluated by simultaneously calculating the
difference between the highest and lowest points on the surface.
F = max(C1,C2,C3,C4) - min(C1,C2,C3,C4)
Min and max functions will not accept mixed units of
measure.
C1
C2
C3
C4
