p Nominal with fixed limits
A nominal value is displayed between plus and minus fixed limits.
To specify fixed limits above and below a nominal value:
U Press the LIMITS soft key
U Highlight the desired tolerance field
U Enter the desired tolerance value
U Repeat for all tolerance values
U Press the FINISH key
The example below of 3 mm ± 0.005 mm is used to show a nominal
value with fixed limits.
„ Nominal = 3.000 mm
„ High warning = 3.002
„ Low warning = 2.998
„ High limit = 3.004
„ Low limit = 2.996
„ Bar graph max = 3.005
„ Bar graph min = 2.995

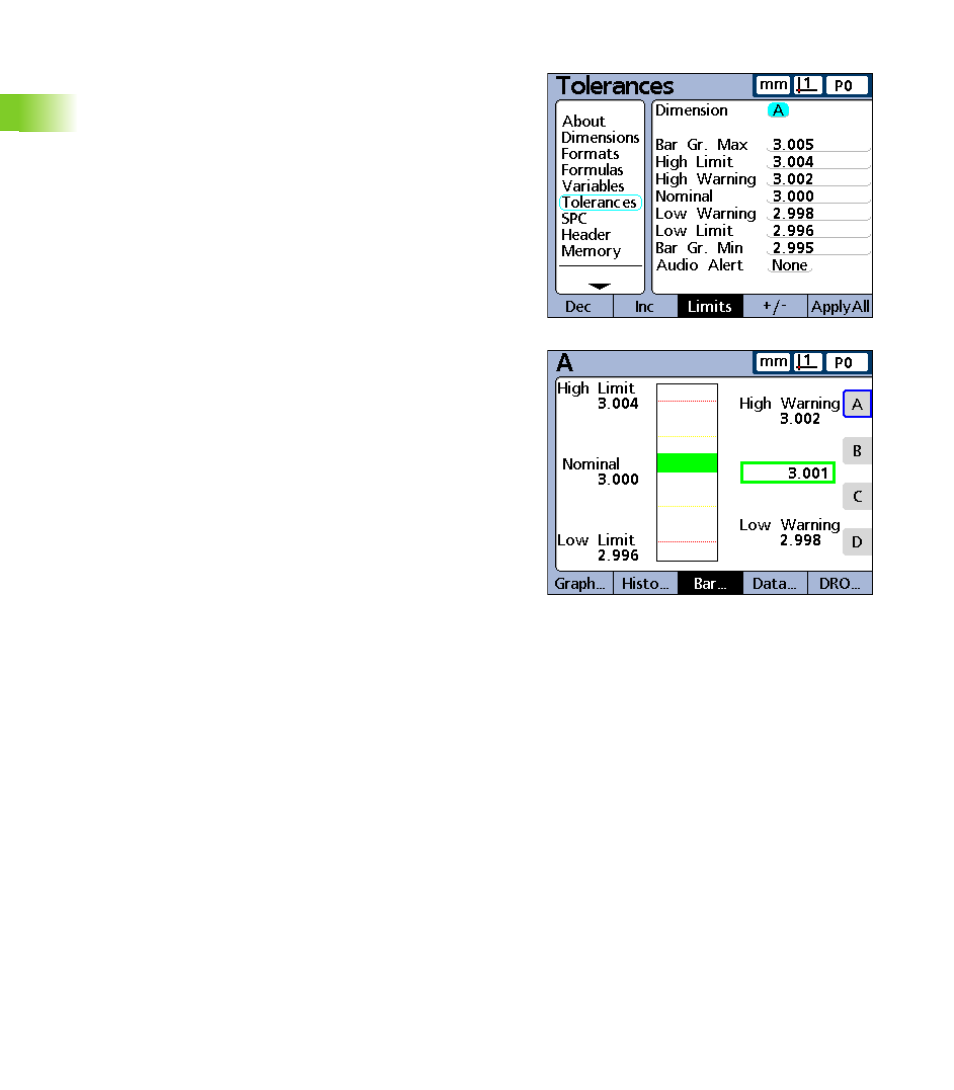

Nominal and fixed limit tolerances for dimension A.
Bar graph showing fixed limit tolerances.
