p Formulas setup screen
The ND 2100G uses formulas to define and display dimensions based
on channel inputs.
These formulas are constructed by the user to display:
„ One dimension based on one channel
ex. A=C1
„ One dimension based on multiple channels
ex. A=C1+C2
„ Multiple dimensions based on one channel
ex. A=C1
B=2*pi*C1
„ Multiple dimensions based on multiple channels
ex. A=C1
B=C2
C=C1*C2
Formulas can be constructed that display a channel as a dimension, or
that calculate a dimension from one or more channels using powerful
math, logic or other functions.
Dimension formulas are unique to the part they are created in. For
example, a dimension formula created in part 0 cannot be used in part
2. However, system dimensions are described later in this chapter and
can be used across all parts.

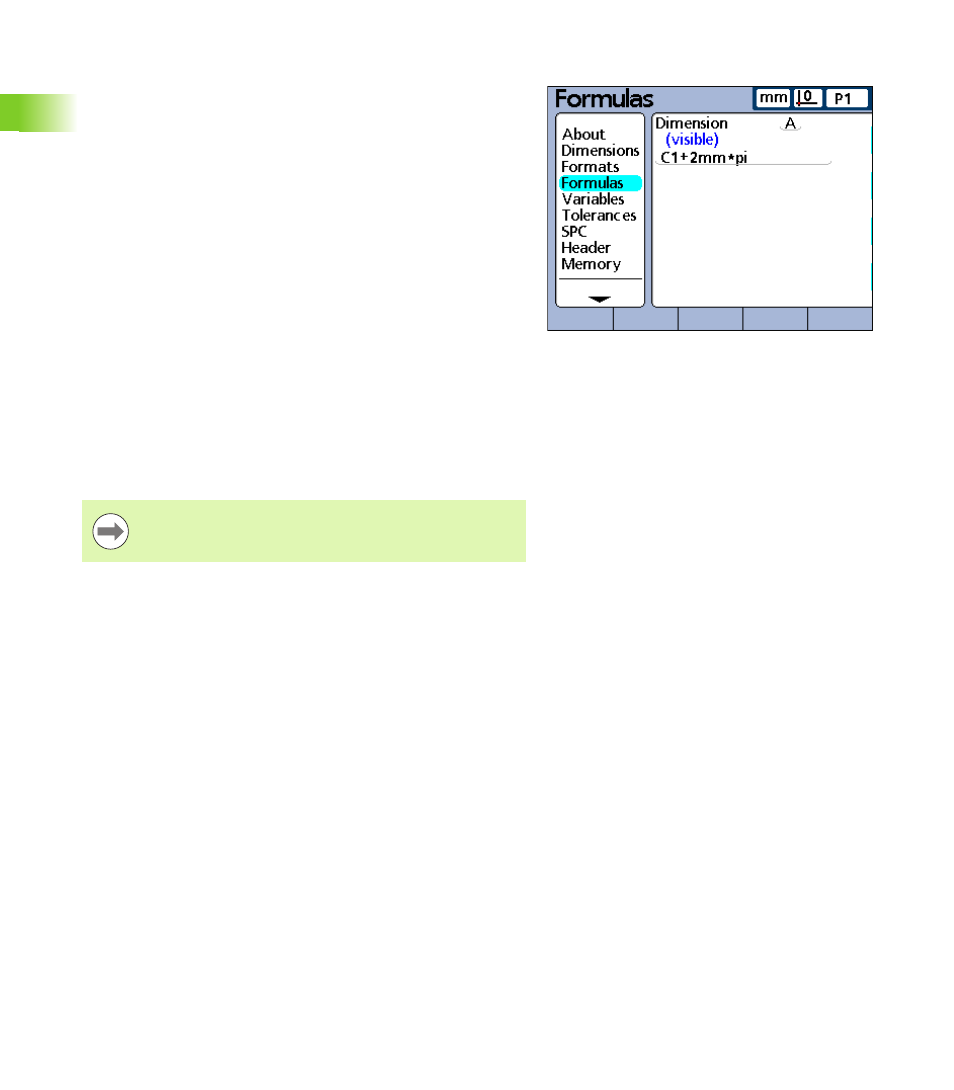

Formulas setup screen.
Refer to "Formulas" on page 163.
