Most operating parameters of the ND 2100G are configured using
screens and data fields accessed from the Setup menu. Highlighting
Setup menu items (
1 ) on the left side of the setup screen displays the
corresponding setup parameter data fields ( 3 ) and choice fields( 2 ) on
the right side of the screen.
Setup menu features:

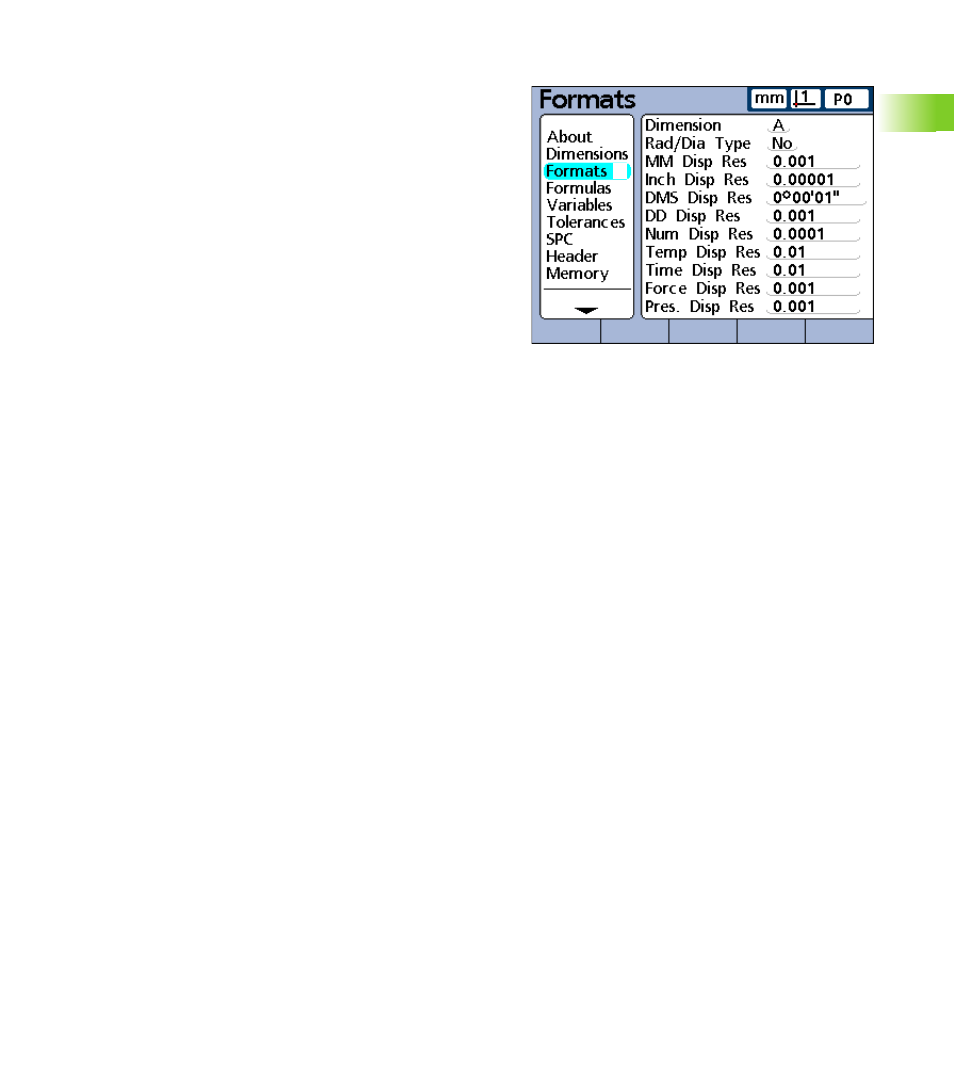

Setup screen menu items, data fields and choice
fields.
1
2
3
1 Setup menu item: Setup screen name
2 Setup choice field: Setup choices are made
3 Setup data field: Setup data are entered
