ND 2100G GAGE-CHEK 113
2
.3
S
o
ft
wa
re
s
e
tu
p Using dynamic Min/Max values for calibration
Dynamic minimum and maximum measurements can be used in place
of static artifact measurements for calibration when the calibrations
must be performed in a gage system using rotary standard parts or
rock step masters.
To specify the use of dynamic minimum and maximum values for
calibration:
U Highlight the Use DMin/DMax field
U Press the YES soft key
U Press the ENTER key
When dynamic minimum or maximum measurements are used for
calibration, the Actual value on the Master screen changes as a
standard part is rotated until the minimum or maximum values are
found. Once the minimum or maximum values are displayed, the user
enters the value for the calibration and presses the ENTER key.
When Mean calibrations are performed, the calibration of the
minimum value establishes a channel preset.
When Min-Max calibrations are performed, the minimum value
establishes a preset and the combination of the minimum and
maximum values is used to define channel resolution.

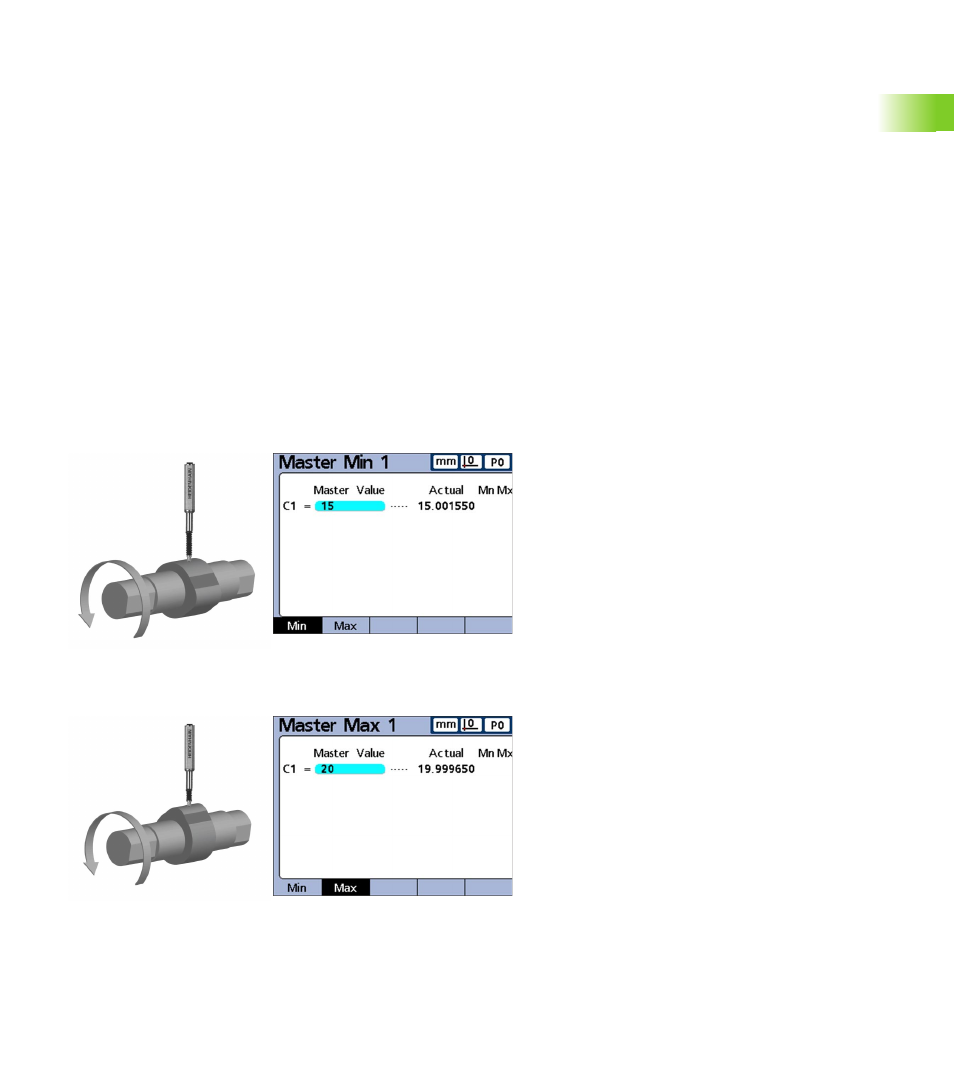

1.5 cm Dmin is measured and mastered as Min 1.
2.0 cm Dmax is measured and mastered as Max 1.
