182 2 Installation and Specifications
2.4 F
o
rm
ulas
Insert dimension functions into formulas to include values of existing
dimensions in new dimensions.
To insert a dimension into a formula:
U Press the DIM... soft key
U Press the dimension key for the dimension you would like to insert

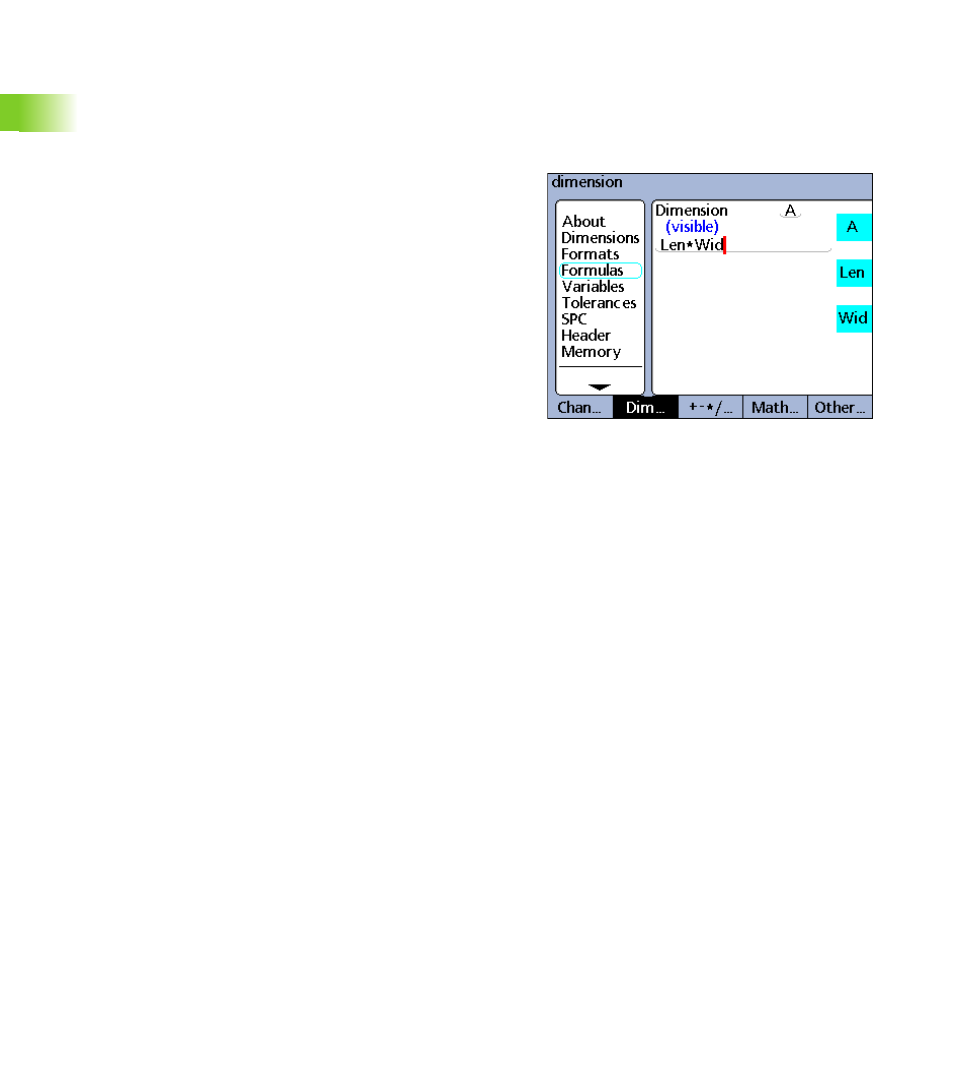

Dimension values can be assigned to other dimensions or used in
calculations as shown in this example:
Example 1: Assigned to other dimensions
A=B
Example 2: Used in Calculation
A = Len*Wid
Where:
A = Area of a rectangle
Len = Length of a rectangle
Wid = Width of a rectangle
