102 2 Installation and Specifications
2
.3
S
o
ft
wa
re
s
e
tu
p Setting the resolution for the linked channels
After balancing the master linked channels, the resolution of the first
linked channel must be taught. The resultant resolution is applied to
both linked channels.
To perform a resolution teach of the linked channels:
U Confirm that Master setting in the Master setup screen is set to
Min-Max. Change to Min-Max if necessary.
U Highlight the Resolution field of the first linked channel
U Press the TEACH soft key
U Press the MIN soft key

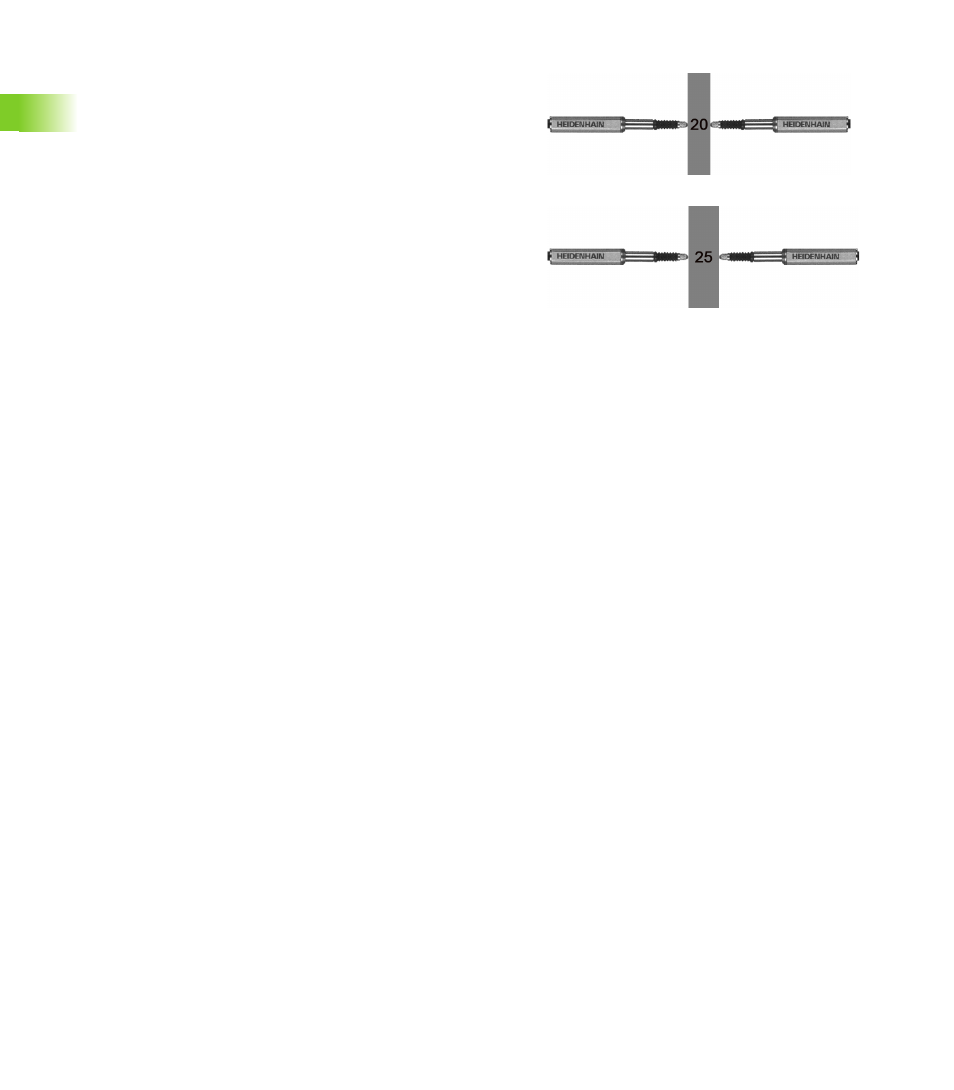

U Put the Min standard piece between the two probes as shown on
the right
U Use the numeric keypad to enter the value of the piece in the Min
field of the first linked channel
U Press ENTER to teach the Min value
U Press YES to the prompt
U Press the MAX soft key
U Put the Max standard piece between the two probes as shown on
the right
U Use the numeric keypad to enter the value of the piece in the Max
field of the first linked channel
U Press ENTER to teach the Max value
U Press YES to the prompt
U The linked channels resolutions is now taught. Press FINISH to exit
the resolution teach
The Min is mastered.
The Max is mastered.
