HEIDENHAIN ND 2100G User Manual
Page 24
24
1 Operation
1
.3 P
a
nel k
e
y descr
iptions

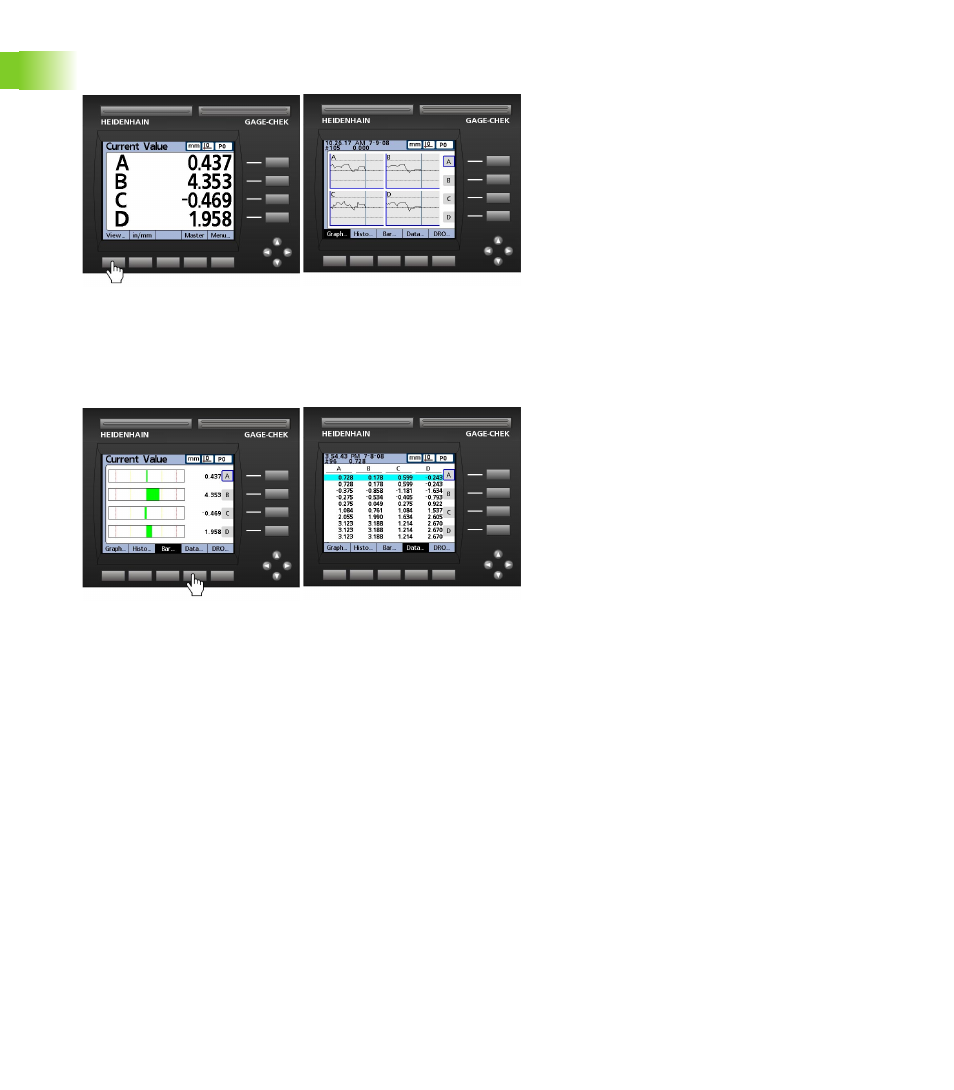

Pressing the VIEW... soft key changes soft key labels to show five
screen viewing options, graph, histogram, bar, data and DRO.
When viewing graphs of stored data, current value bars or tables of
stored data, pressing a different soft key changes to the view
indicated by the soft key label.
Pressing the VIEW... soft key causes soft key labels to change,
offering five options for viewing data.
Pressing the DATA... soft key when viewing bars causes the
dimension data table to be displayed.
