ND 2100G GAGE-CHEK 249
2.4 F
o
rm
ulas

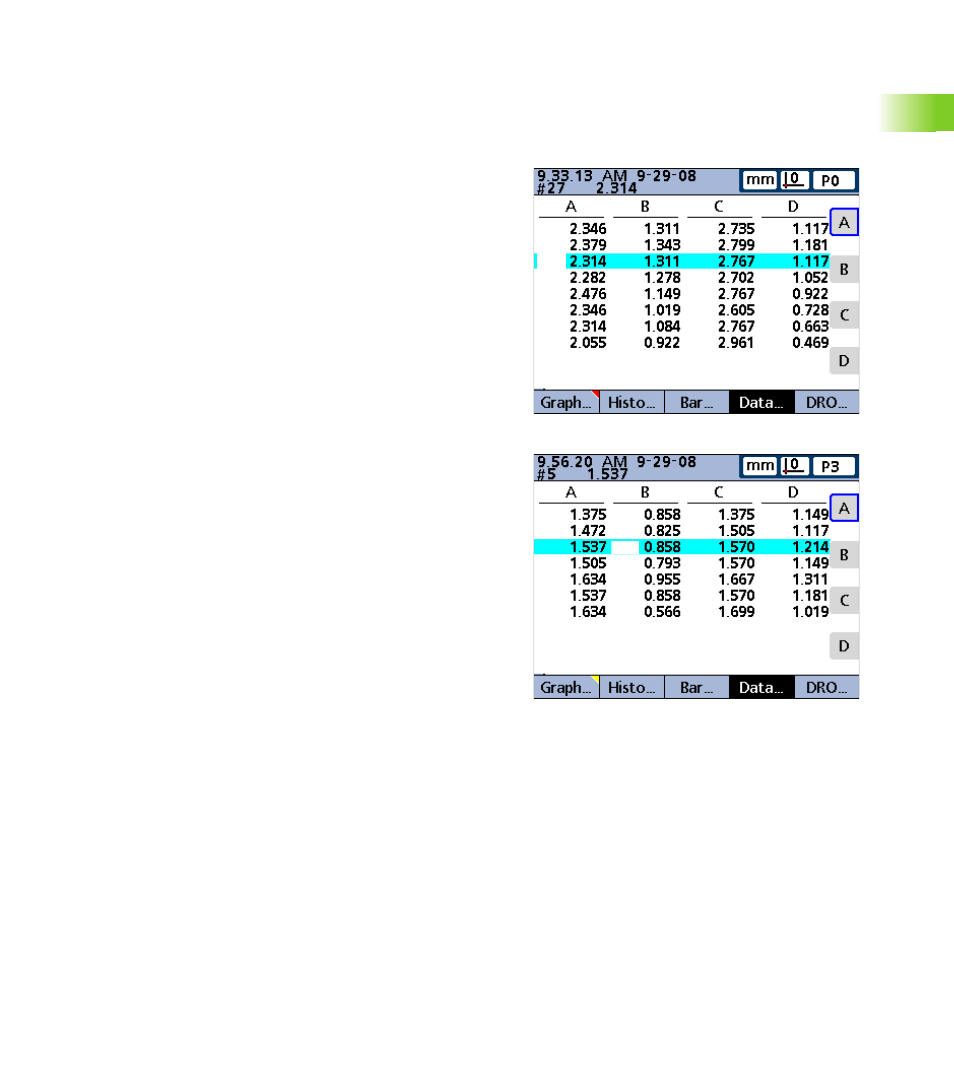

Database record elements are numbered starting with element 0 at
the top of the list for each dimension. The most recently stored value
is at the top. Value A(2) is the third element from the top of dimension
A list (not the second) as shown below.
List indexes must be positive integers. An index that exceeds the
range of a specified list results in an error message.
Example 1:
C = A(2)
C = 2.314
Example 2:
C = B(2,3)
C = 0.858
Shows the syntax of a data lookup function that uses record and part
indexes.
The formula assigns the value of the third element of the data stored
for dimension B of part 3 to dimension C.
Example 1.
A(0)
A(2)
Example 2.
B(2)
