32 1 Operation
1
.4 LCD scr
eens and menus
View soft keys for subgroups greater than one
Pressing the VIEW... soft key, when using subgroups greater than
one, changes soft key labels to show five screen viewing options. x, r,
Bar, Data and DRO.

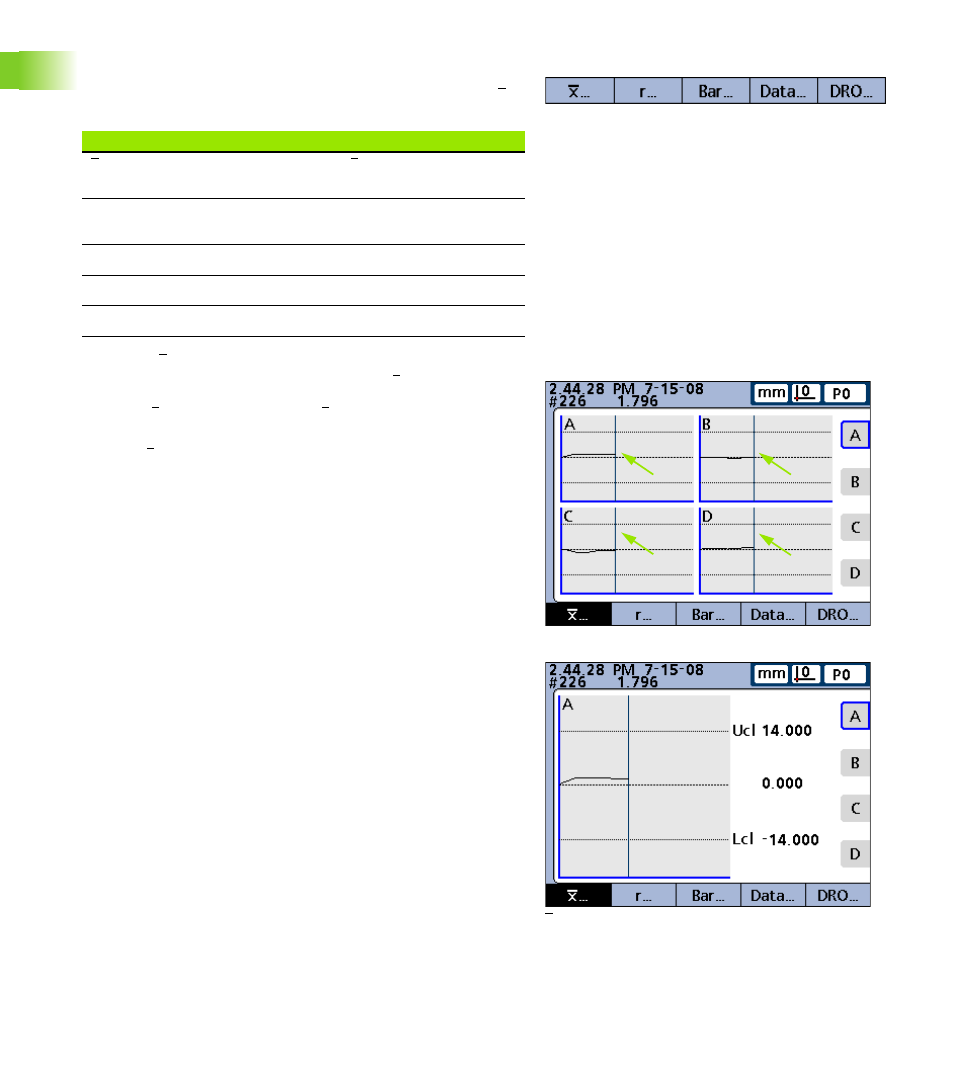

Dimension x charts for subgroups greater than one
For SPC subgroups greater than 1, the dimension x screen is displayed
in place of the dimension graph screen discussed earlier. The
dimension x screen graphs the mean (x) of each subgroup for up to 16
dimensions.
Press the x... soft key to change the number of graphs presented on
the screen. Press a dimension soft key to display a graph of a single
dimension.
Use the arrow cursor keys to scroll the graphs when more data is
stored than will fit on the screen.
Individual subgroups are selected by a vertical line on the graph. Move
the vertical line left and right through the stored data using the arrow
cursor keys. The time and date when the selected subgroup data was
stored are shown in the upper left corner of the screen. The ID number
of the subgroup and the value of the data for the dimension are also
shown in the upper left corner. Displays of single dimensions also
show the control limits.
VIEW soft keys for subgroups greater than one.
View soft keys Function
x... Displays the mean (x) of each subgroup for up
to 16 dimensions
r... Displays the range ( r ) of each subgroup for
up to 16 dimensions
BAR... Displays data in a bar graph
DATA... Displays numerical data
DRO... Displays the DRO screen
Vertical line.
x charts for subgroups greater than one.
