136 2 Installation and Specifications
2
.3
S
o
ft
wa
re
s
e
tu
p RS-232 setup screen
The RS-232 setup screen contains fields for specifying the RS-232
serial port settings for communication with a computer or RS-232
channel input device.
Uart Id
ND 2100G units that include a second RS-232 serial port for RS-232
input device connections must be configured to communicate with
computers on either the primary or secondary port. Typically,
computer communication takes place on the primary port, and RS-232
probe networks are attached to the secondary port. However, either
port can be designated as the communication port.
To specify Uart Id:
U Highlight the Uart Id field
U Press the INC or DEC soft key to specify the desired port
U Press the ENTER key
Baud rate
The Baud field is used to specify the baud rate of serial data.
To specify Baud rate:
U Highlight the Baud field
U Press the DEC or INC soft key to decrease or increase the baud rate
from 1200 to 115,200
U Press the ENTER key
Word length
The Word Len field is used to specify the number of bits contained in
each data word.
To specify word length:
U Highlight the Word Len field
U Press the 7 or 8 soft key to specify the word length
U Press the ENTER key

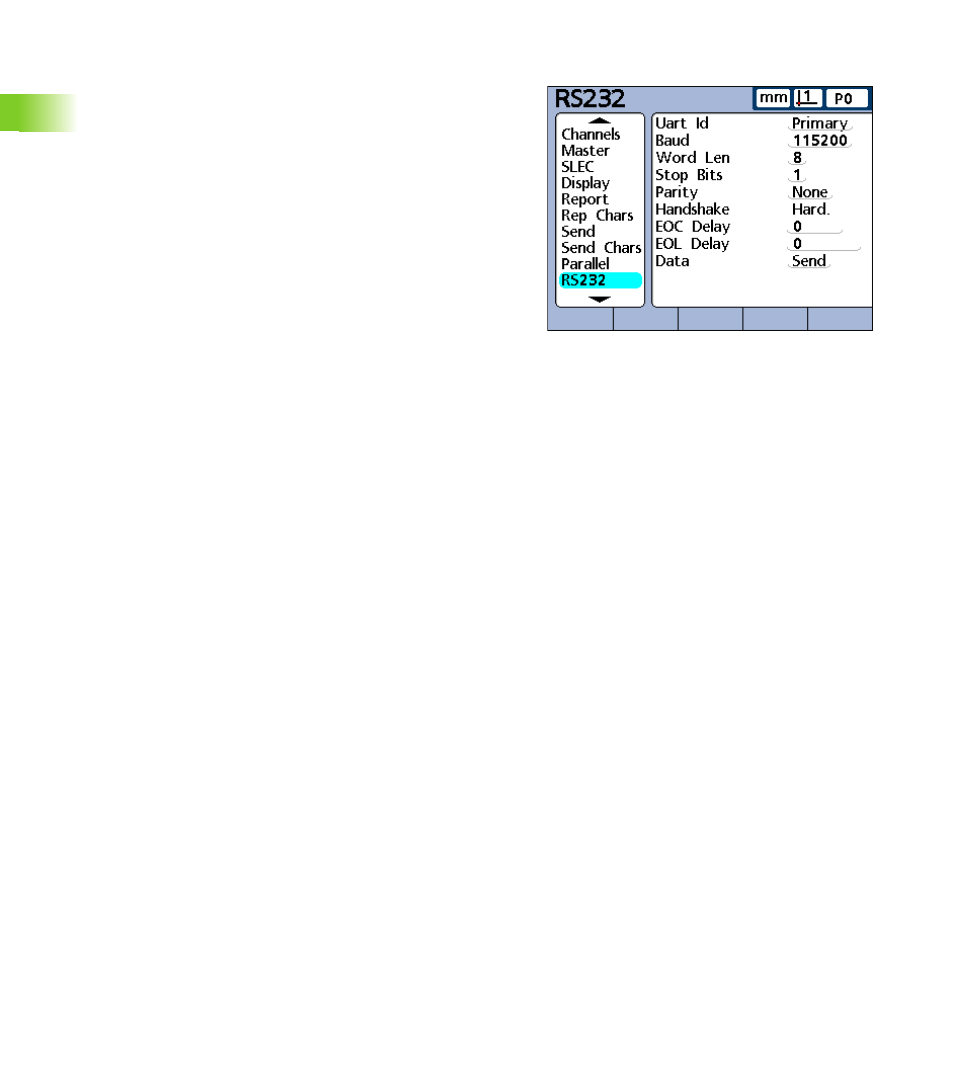

RS232 setup screen.
