Master screen for calibrating transducer ranges
When the Master setup screen is configured to perform full
calibrations of transducer input channels (Master type set to Min-
Max), the full range of any channel input can be calibrated at any time
using the Master function Min and Max screens. Up to 18 range
calibration values can be stored for each ND 2100G transducer input
channel. Any of these groups can be quickly recalled and applied later.

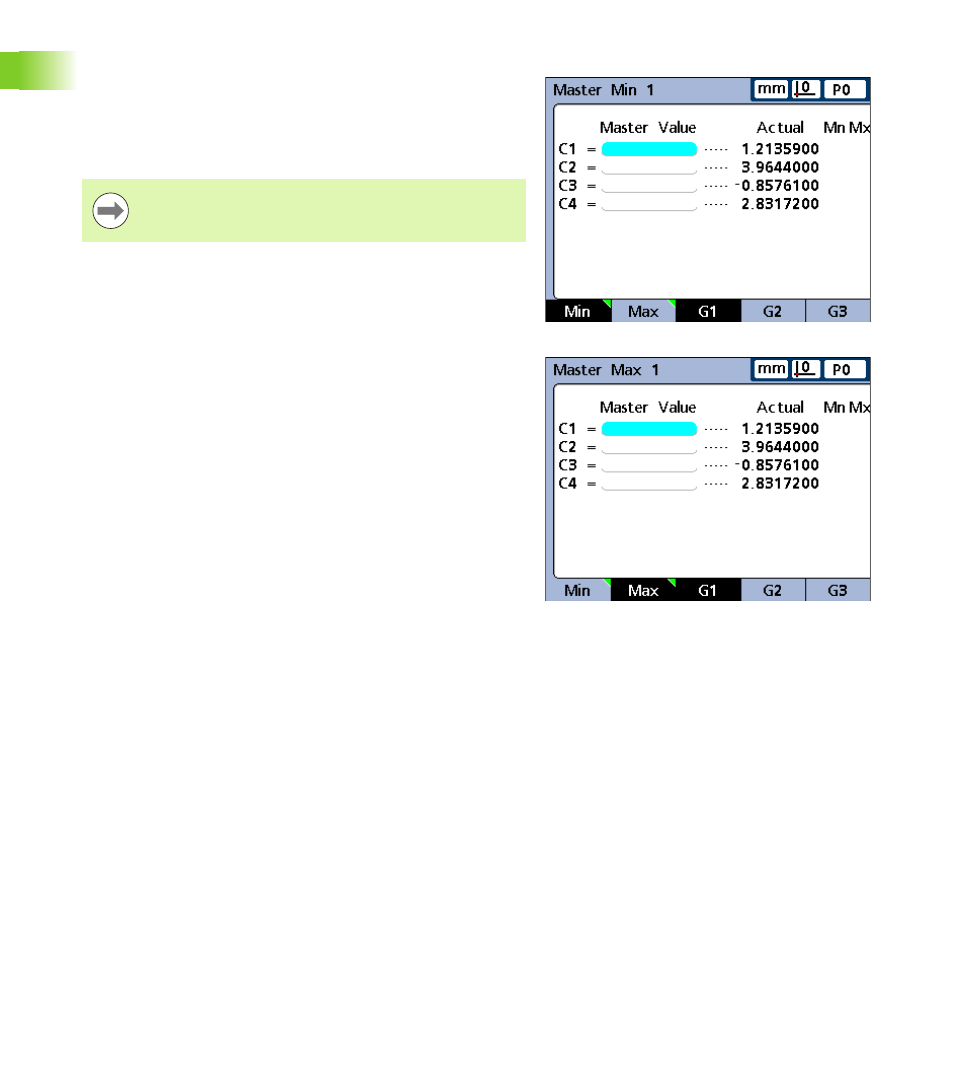

Master Min screen for calibrating transducer range.
Master Max screen for calibrating transducer range.
Instructions for calibrating transducer input channels Min
and Max range values are provided later in this chapter.
