30 1 Operation
1
.4 LCD scr
eens and menus

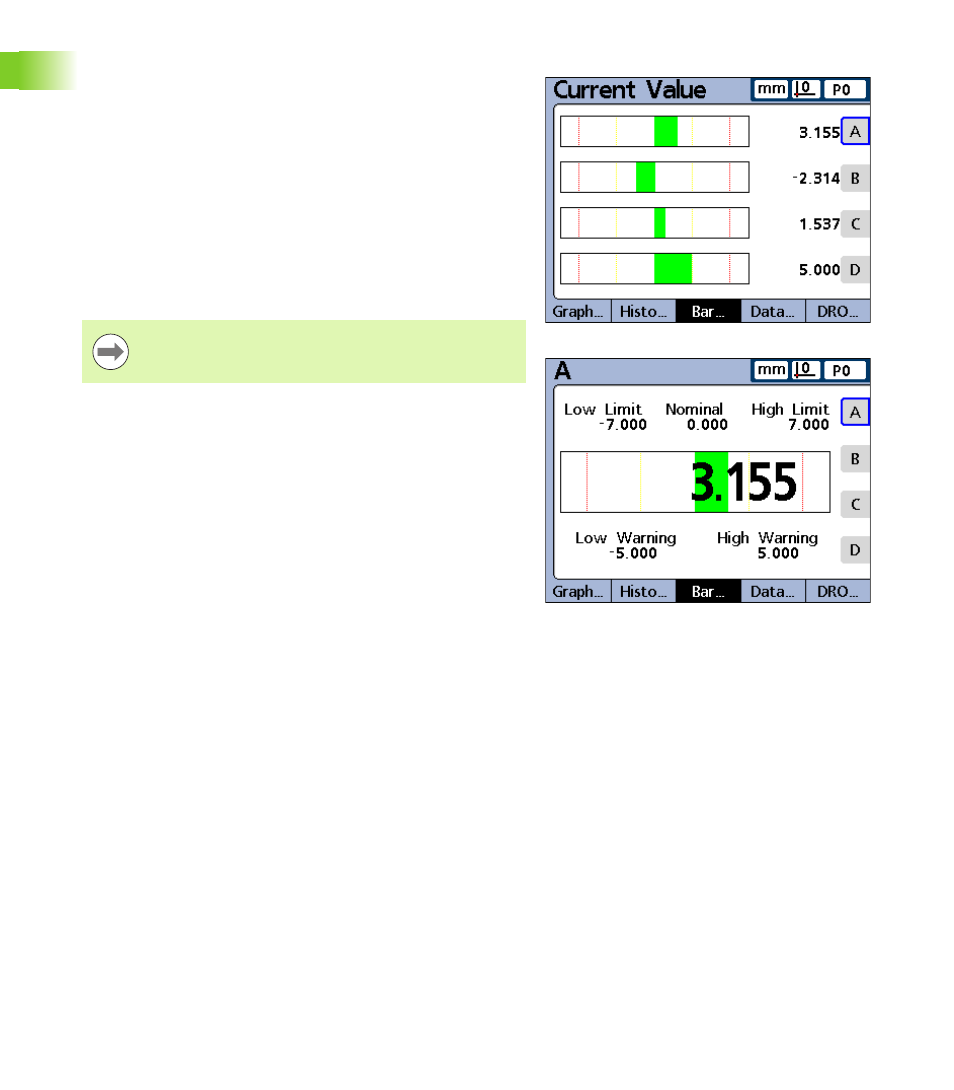

Bar and dial current value displays
The bar and dial screens provide graphic displays of the current values
of up to 16 dimensions. The default bar screen can be configured to
display current value bars in horizontal or vertical orientation using the
Display setup screen.
Bar displays of multiple dimensions show current values. Bar displays
of single dimensions include the current value, nominal value, and high
and low warning and limit values.
Press the BAR... soft key to change the number of bars presented on
the screen. Press a dimension soft key to display a bar for a single
dimension.
The display can be configured in the Display setup screen to include a
dial in addition to the bars. When the dial display is also available, press
the BAR... soft key to toggle between the bars and the dial.
Bar graphs for subgroups of one.
The display of a single dimension can be configured to be
a bar or a dial, but cannot be toggled between a single bar
and a single dial.
