210 2 Installation and Specifications
2.4 F
o
rm
ulas

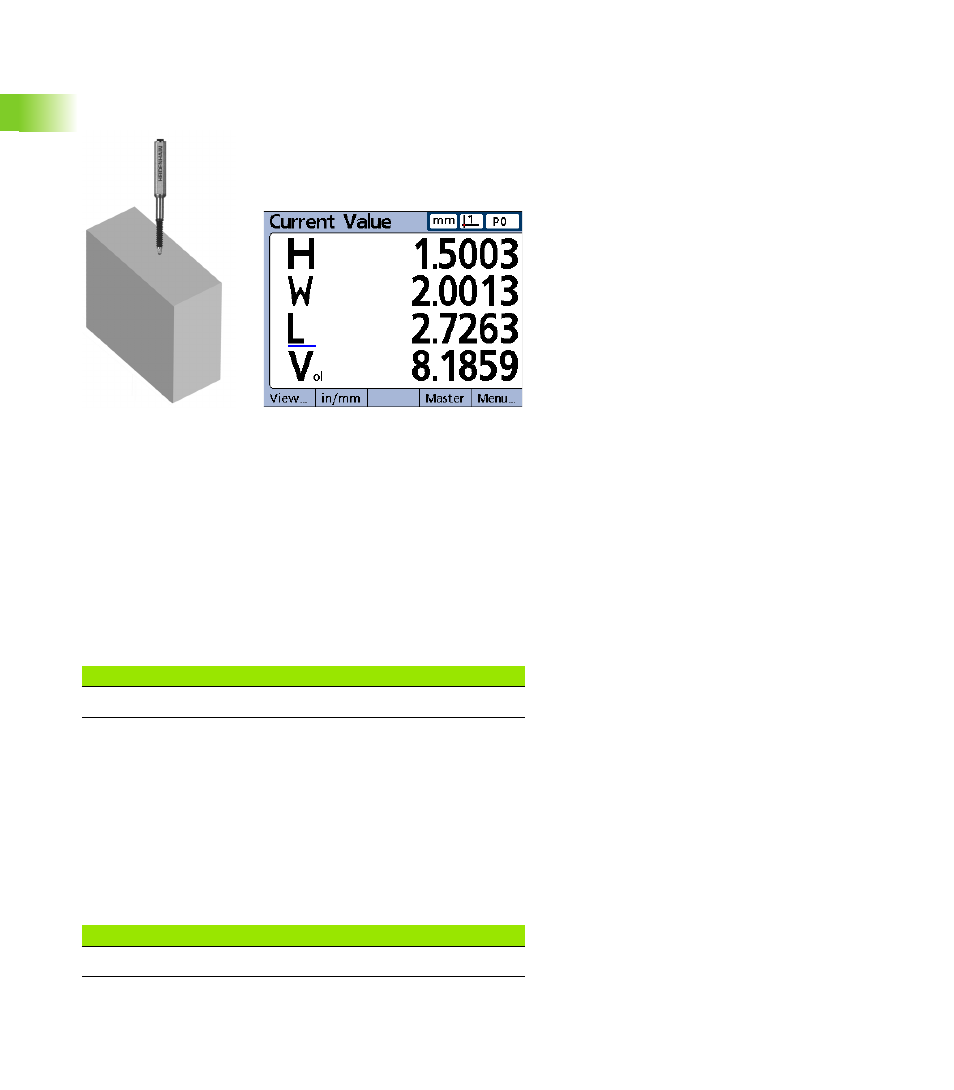

U Position the block and channel input to measure length (L)
U Press the ENTER key to store the final channel value
L = seq(3,C1)
This last step in the sequence also stores the calculation of volume
based on the values of H, W and L.
Vol = H*W*L
Upon completion of the last step, the ND 2100G returns to the first
step in the sequence to begin a new series of measurements.
This example of volume measurement illustrates that many
dimensions can be calculated from a single channel input.
Performing operations within a sequence
Operations such as sending data and engaging relay contacts can be
performed within a sequence by appending the operation using a
semicolon.
Reinitiating a sequence
Sequences can be ended prior to their completion and a new
sequence initiated.
Operations within a sequence syntax
A = seq(Step number,function);seq(Step number, operation)
Example:
A = seq(3,C1);(3,ClrTrig4)
Clears event trigger 4 when step 3 of the sequence is executed
Reinitiate a sequence syntax
seq(reinitialization step number)
