ND 2100G GAGE-CHEK 189
2.4 F
o
rm
ulas
Integer function (int)
The integer function is used to remove the fractional portion from a
term, leaving only the integer portion. The integer function does not
round mixed numbers. The fractional portion is removed. The Integer
function includes the integer value of a channel input, dimension or
collection of terms.
To insert the integer function:
U Press the MATH... soft key
U Press the INT dimension key
Parentheses for the term are provided.

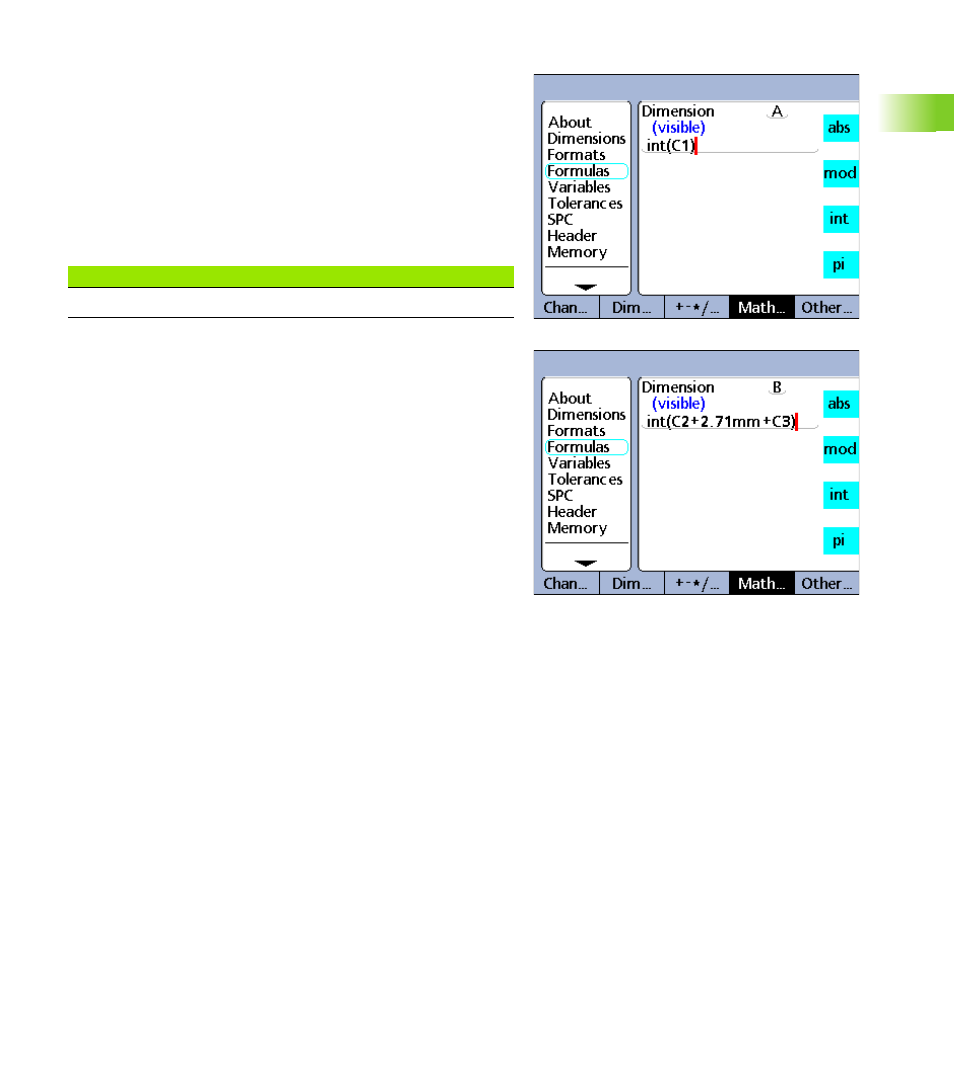

Integer function, single value.
Integer function, collection of values.
Integer function syntax
A = int(term)
Example 1:
A = int(C1)
A = 2.000 mm
when C1 = 2.9732 mm
Example 2:
B = int(C2+2.71mm+C3)
B = 6.000 mm
when (C2 = 2.21 mm and C3 =
1.789 mm
