Buttons

: Click to add a new access entry.

: Click to save changes.

: Click to undo any changes made locally and revert to previously saved values.

4.4 Port Management

Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:

Port Configuration

Configures port connection settings

Port Statistics Overview

Lists Ethernet and RMON port statistics

Port Thermal Protection

Configures thermal protection settings

Port Thermal Protection
Status

Display thermal protection status

Port Statistics Detail

Lists Ethernet and RMON port statistics

SFP Information

Display SFP information

Port Mirror

Sets the source and target ports for mirroring

4.4.1 Port Configuration

This page displays current port configurations. Ports can also be configured here. The Port Configuration screen in

Figure 4-4-1

appears.

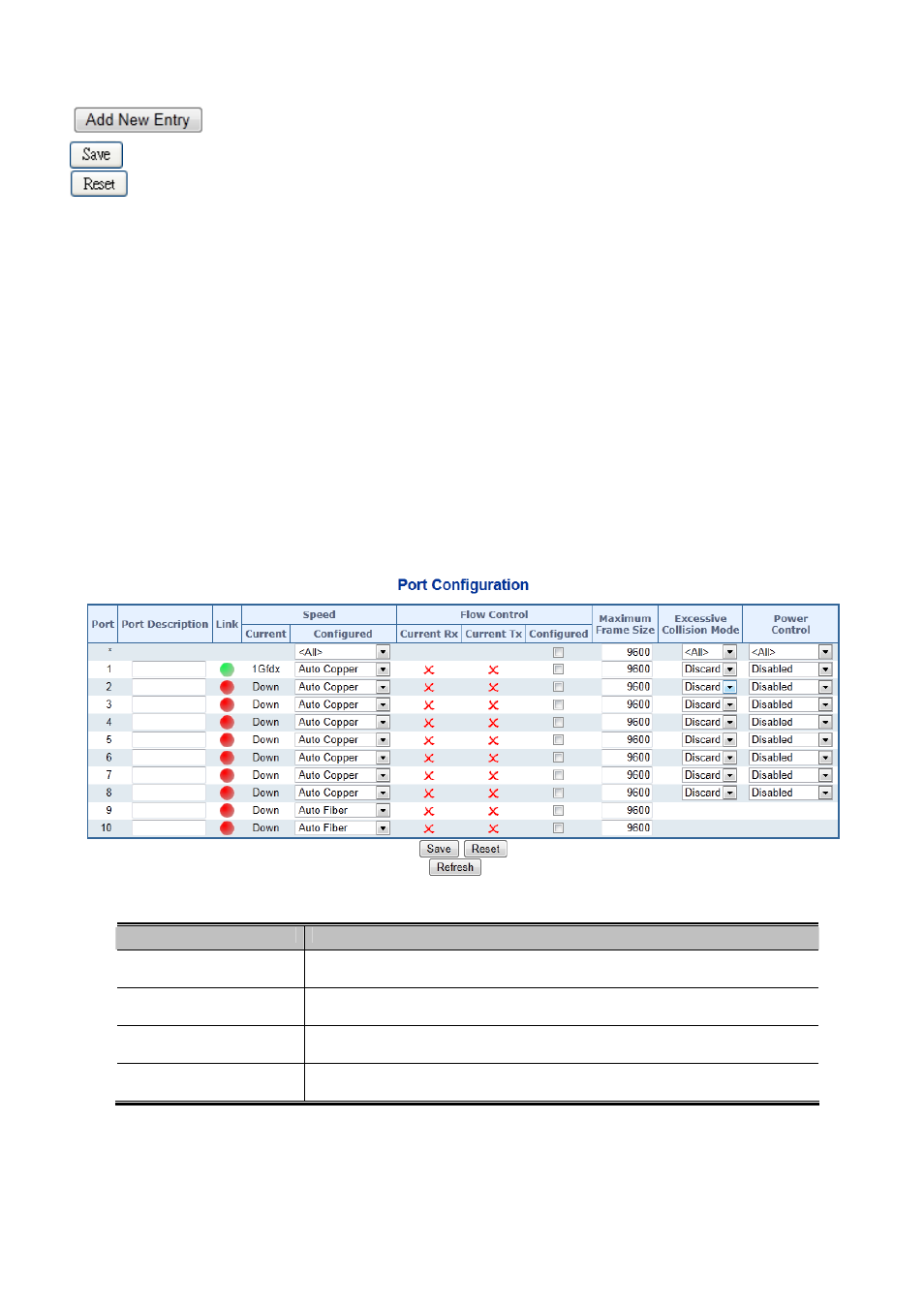

Figure 4-4-1:

Port Configuration Page Screenshot

The page includes the following fields:

Object

Description

Port

This is the logical port number for this row.

Port Description

This function provides input per port description and the available letters is 12.

Link

The current link state is displayed graphically. Green indicates the link is up and
red that it is down.

Current Link Speed

Provides the current link speed of the port.
