4.6.7 VLAN Port Status

This page provides VLAN Port Staus. The VLAN Port Status screen in

Figure 4-6-5

appears.

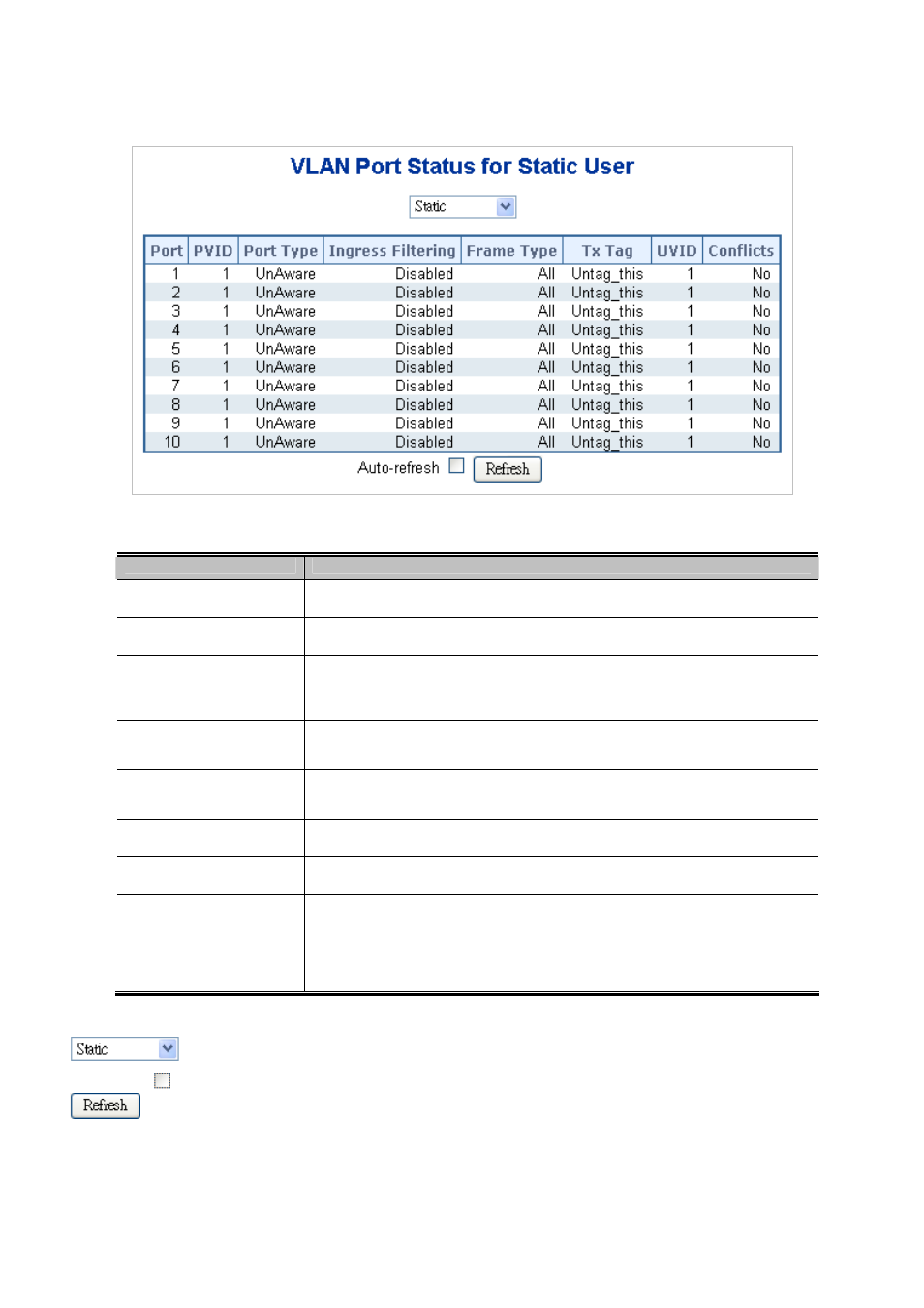

Figure 4-6-5:

VLAN Port Status for Static User Page Screenshot


The page includes the following fields:

Object

Description

Port

The logical port for the settings contained in the same row.

PVID

Shows the VLAN identifier for that port. The allowed values are 1 through 4095.
The default value is 1.

Port Type

Shows the Port Type. Port type can be any of Unaware, C-port, S-port, Custom
S-port. If Port Type is Unaware, all frames are classified to the Port VLAN ID and
tags are not removed. C-port is Customer Port. S-port is Service port. Custom
S-port is S-port with Custom TPID.

Ingress Filtering

Shows the ingress filtering for a port. This parameter affects VLAN ingress
processing. If ingress filtering is enabled and the ingress port is not a member of
the classified VLAN of the frame, the frame is discarded.

Frame Type

Shows whether the port accepts all frames or only tagged frames. This
parameter affects VLAN ingress processing. If the port only accepts tagged
frames, untagged frames received on that port are discarded.

Tx Tag

Shows egress filtering frame status whether tagged or untagged.

UVID

Shows UVID (untagged VLAN ID). Port's UVID determines the packet's behavior
at the egress side.

Conflicts

Shows status of Conflicts whether exists or Not. When a Volatile VLAN User
requests to set VLAN membership or VLAN port configuration, the following
conflicts can occur:
Functional Conflicts between feature.
Conflicts due to hardware limitation.
Direct conflict between user modules.


Buttons

: Select VLAN Users from this drop down list.

Auto-refresh

: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.

: Click to refresh the page immediately.

4.6.8 Private VLAN

The Private VLAN membership configurations for the switch can be monitored and modified here. Private VLANs can be added
or deleted here. Port members of each Private VLAN can be added or removed here.
