10 and 100 Mbps ports will be linked down while running cable diagnostic. Therefore, running cable diagnastic on a 10 or 100
Mbps management port will cause the switch to stop responding until VeriPHY is complete. The ports belong to the currently
selected stack unit, as reflected by the page header. The VeriPHY Cable Diagnostics screen in
Figure 4-15-4 appears.

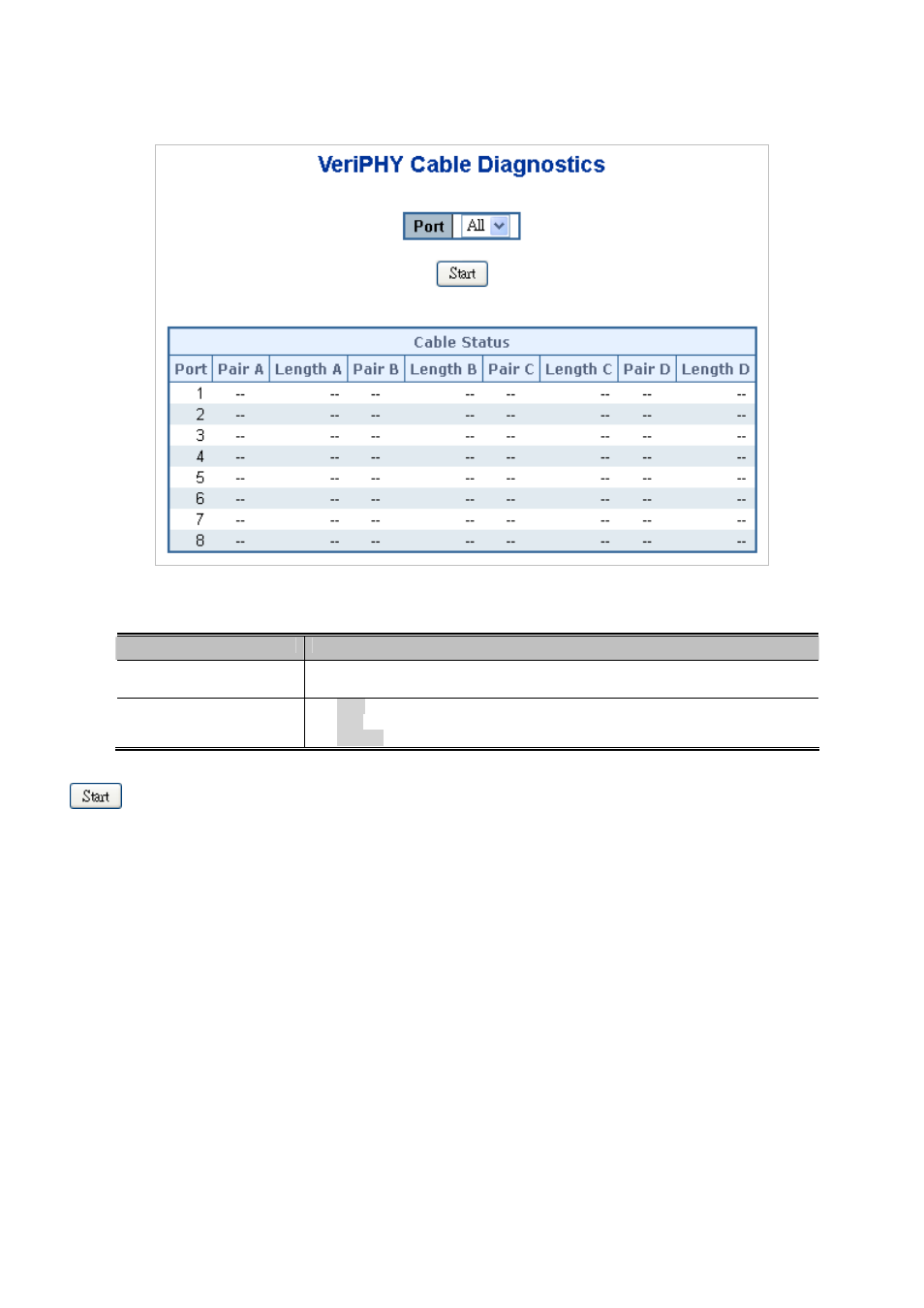

Figure 4-15-4: VeriPHY Cable Diagnostics Page Screenshot
The page includes the following fields:
Object Description

Port
The port where you are requesting Cable Diagnostics.

Cable Status
 Port: Port number.
 Pair: The status of the cable pair.
 Length: The length (in meters) of the cable pair.
Buttons
: Click to run the diagnostics.
