■ Reset Button
On the left of the front panel, the reset button is designed for rebooting the Industrial Managed Switch without turning off
and on the power. It also can reset the Industrial Managed Switch to factory default mode.

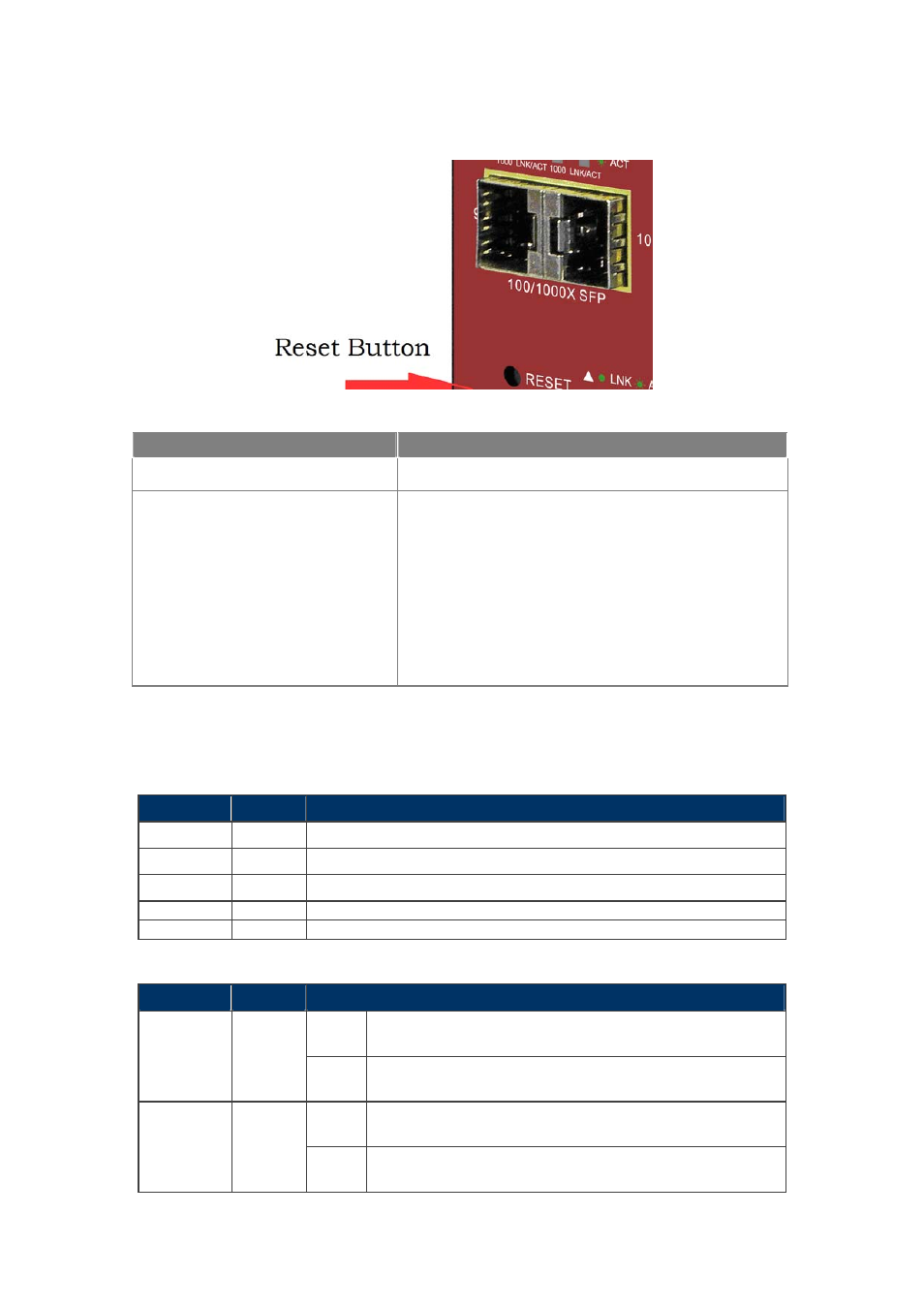

Figure 2-2: Reset Button of Industrial Managed Switch
Reset Button Pressed and Released Function
< 5 sec : System Reboot Reboot the Industrial Managed Switch
> 10 sec : Factory Default
Reset the Industrial Managed Switch to Factory Default
configuration. The Industrial Managed Switch will then reboot
and load the default settings as below:
 Default Username: admin
 Default Password: admin
 Default IP address: 192.168.0.100
 Subnet mask: 255.255.255.0
 Default Gateway: 192.168.0.254
2.1.3 LED Indicators
 System
LED Color Function
P1 Green Indicates power 1 has power.
P2 Green I ndicates power 2 has power.
Fault Green I ndicates either power 1 or power 2 has no power.
Ring Green Lights to indicate that the ERPS Ring has been created successfully.
R.O.* Green Lights to indicate that Switch has enabled Ring Owner.
 Per 10/100/1000Base-T Port
LED Color Function
Light
Indicate s the link through that port is successfully
established.
LNK / ACT Green
Blink
I ndicates that the Switch is actively sending or receiving
data over that port.
Light
Indicates that the port is successfully connecting to the
network at 1000Mbps.
1000 Orange
Off
Indicates that the port is successfully connecting to the
network at 10Mbps or 100Mbps.
