176

4.9.11.1 QoS Control Entry Configuration

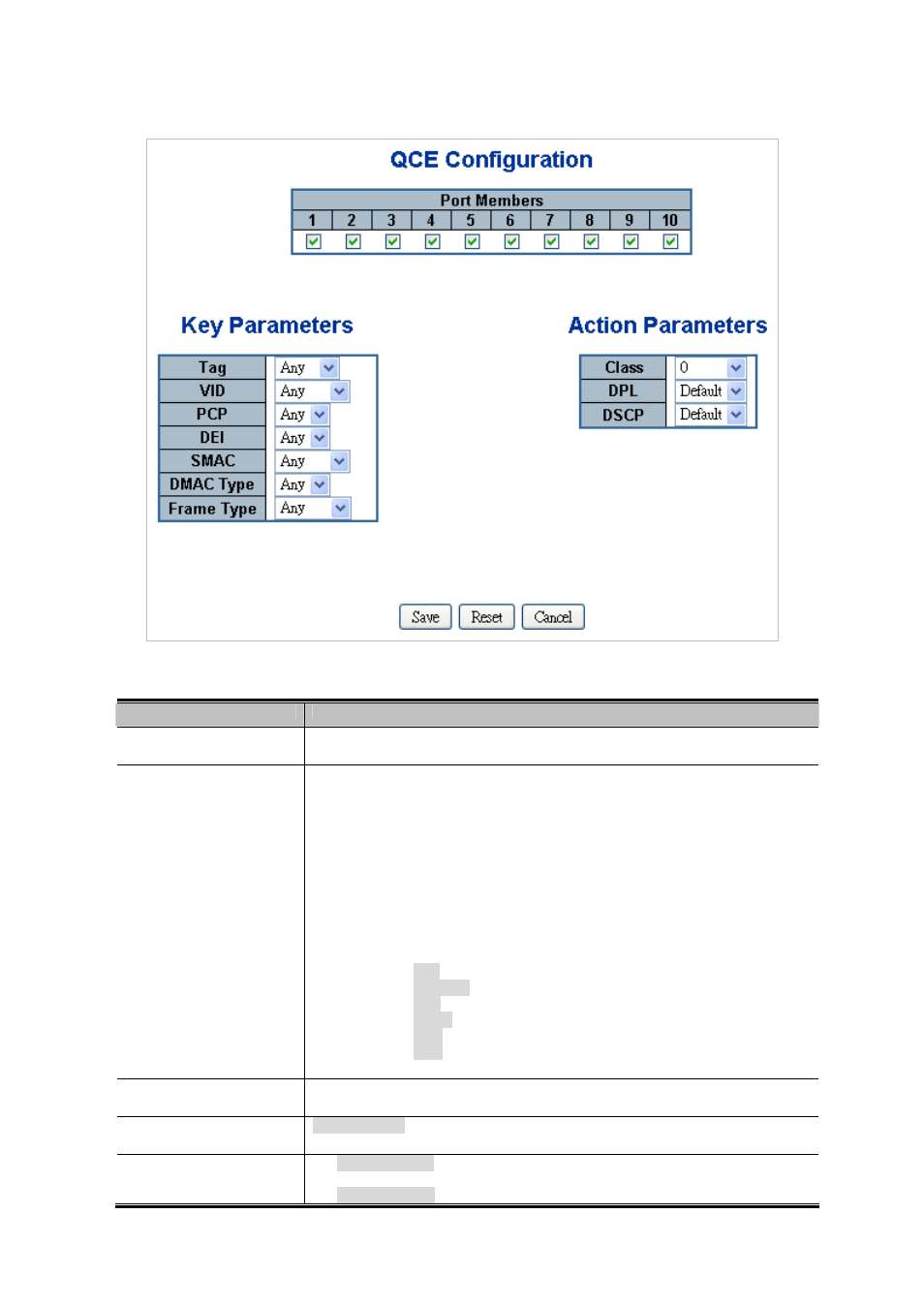

The QCE Configuration screen in

Figure 4-9-14

appears.

Figure 4-9-14:

QCE Configuration Page Screenshot


The page includes the following fields:

Object

Description

Port Members

Check the checkbox button in case you what to make any port member of the
QCL entry. By default all ports will be checked

Key Parameters

Key configuration is described as below:

Tag

Value of Tag field can be 'Any', 'Untag' or 'Tag'.

VID

Valid value of VLAN ID can be any value in the range 1-4095 or

'Any'; user can enter either a specific value or a range of VIDs.

PCP

Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4, 5,

6, 7) or range(0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or 'Any'.

DEI

Drop Eligible Indicator: Valid value of DEI can be any of values

between 0, 1 or 'Any'.

SMAC

Source MAC address: 24 MS bits (OUI) or 'Any'.

DMAC

Type Destination MAC type: possible values are unicast(UC),

multicast(MC), broadcast(BC) or 'Any'.

Frame Type

Frame Type can have any of the following values:

1. Any
2. Ethernet
3. LLC
4. SNAP
5. IPv4
6. IPv6

Note: All frame types are explained below.

Any

Allow all types of frames.

Ethernet

Ethernet Type

Valid ethernet type can have value within 0x600-0xFFFF or 'Any'

but excluding 0x800(IPv4) and 0x86DD(IPv6), default value is 'Any'.

LLC

SSAP Address Valid SSAP(Source Service Access Point) can vary from

0x00 to 0xFF or 'Any', the default value is 'Any'

DSAP Address Valid DSAP(Destination Service Access Point) can vary from
