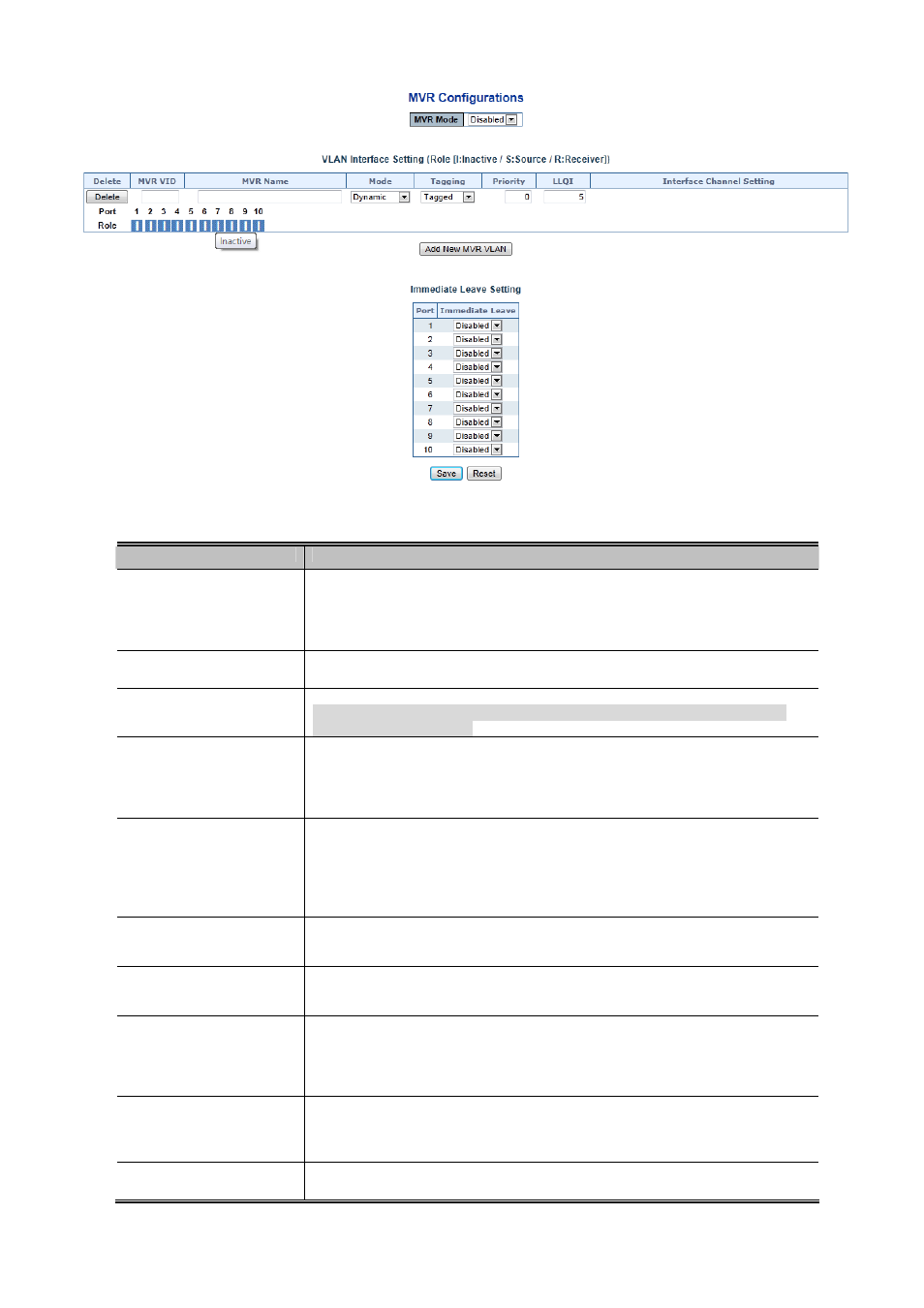

Figure 4-8-17: MVR Configuration Page Screenshot
The page includes the following fields:
Object Description
 MVR Mode Enable/Disable the Global MVR.
The Unregistered Flooding control depends on the current configuration in
IGMP/MLD Snooping.
It is suggested to enable Unregistered Flooding control when the MVR group
table is full.
 Delete Check to delete the entry. The designated entry will be deleted during the next
save.
 MVR VID Specify the Multicast VLAN ID.
Be Caution
: MVR source ports are not recommended to be overlapped with
management VLAN ports.
 MVR Name MVR Name is an optional attribute to indicate the name of the specific MVR
VLAN. Maximum length of the MVR VLAN Name string is 32. MVR VLAN Name
can only contain alphabets or numbers. When the optional MVR VLAN name is
given, it should contain at least one alphabet. MVR VLAN name can be edited for
the existing MVR VLAN entries or it can be added to the new entries.
 Mode Specify the MVR mode of operation.
 In Dynamic mode, MVR allows dynamic MVR membership reports on
source ports.
 In Compatible mode, MVR membership reports are forbidden on source
ports.
The default is Dynamic mode.
 Tagging Specify whether the traversed IGMP/MLD control frames will be sent as
Untagged or Tagged with MVR VID.
The default is Tagged.
 Priority Specify how the traversed IGMP/MLD control frames will be sent in prioritized
manner.
The default Priority is 0.
 LLQI Define the maximun time to wait for IGMP/MLD report memberships on a
receiver port before removing the port from multicast group membership. The
value is in units of tenths of a seconds.
The range is from 0 to 31744.
The default LLQI is 5 tenths or one-half second.
 Interface Channel
Setting
When the MVR VLAN is created, click the Edit symbol to expand the
corresponding multicast channel settings for the specific MVR VLAN. Summary
about the Interface Channel Setting (of the MVR VLAN) will be shown besides
the Edit symbol.
 Port The logical port for the settings.
