User’s Manual of NS3550-8T-2S

172

: Click to undo any changes made locally and revert to previously saved values.

4.9.9 DSCP Translation

This page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in
Ingress or Egress. The DSCP Translation screen in

Figure 4-9-11

appears.

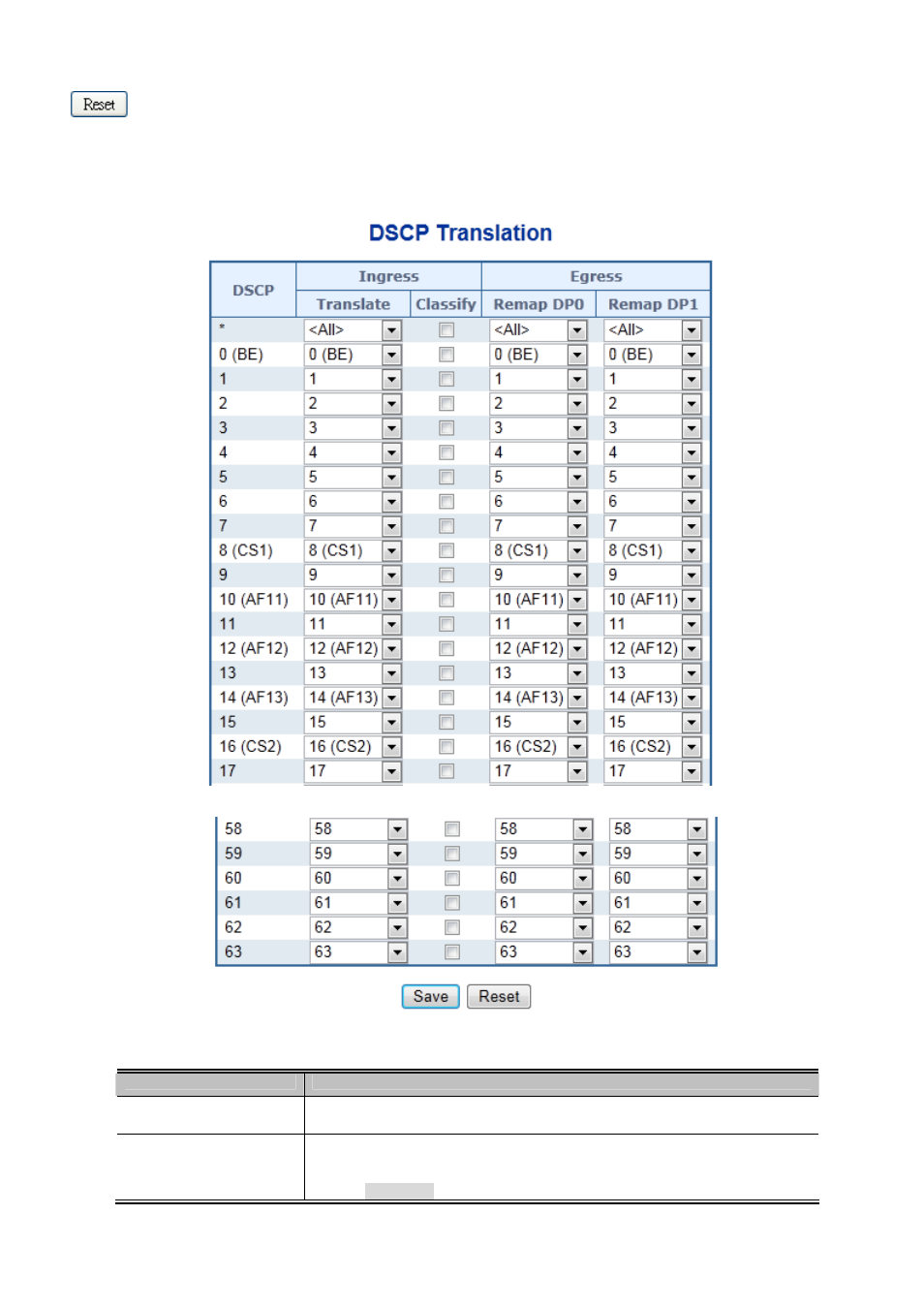

Figure 4-9-11:

DSCP Translation Page Screenshot

The page includes the following fields:

Object

Description

DSCP

Maximum numbers of supported DSCP values are 64 and valid DSCP value
ranges from 0 to 63.

Ingress

Ingress side DSCP can be first translated to new DSCP before using the DSCP
for QoS class and DPL map.
There are two configuration parameters for DSCP Translation –

Translate
