4.9.10 DSCP Classification
This page allows you to map DSCP value to a QoS Class and DPL value. The DSCP Classification screen in
Figure 4-9-12
appears.

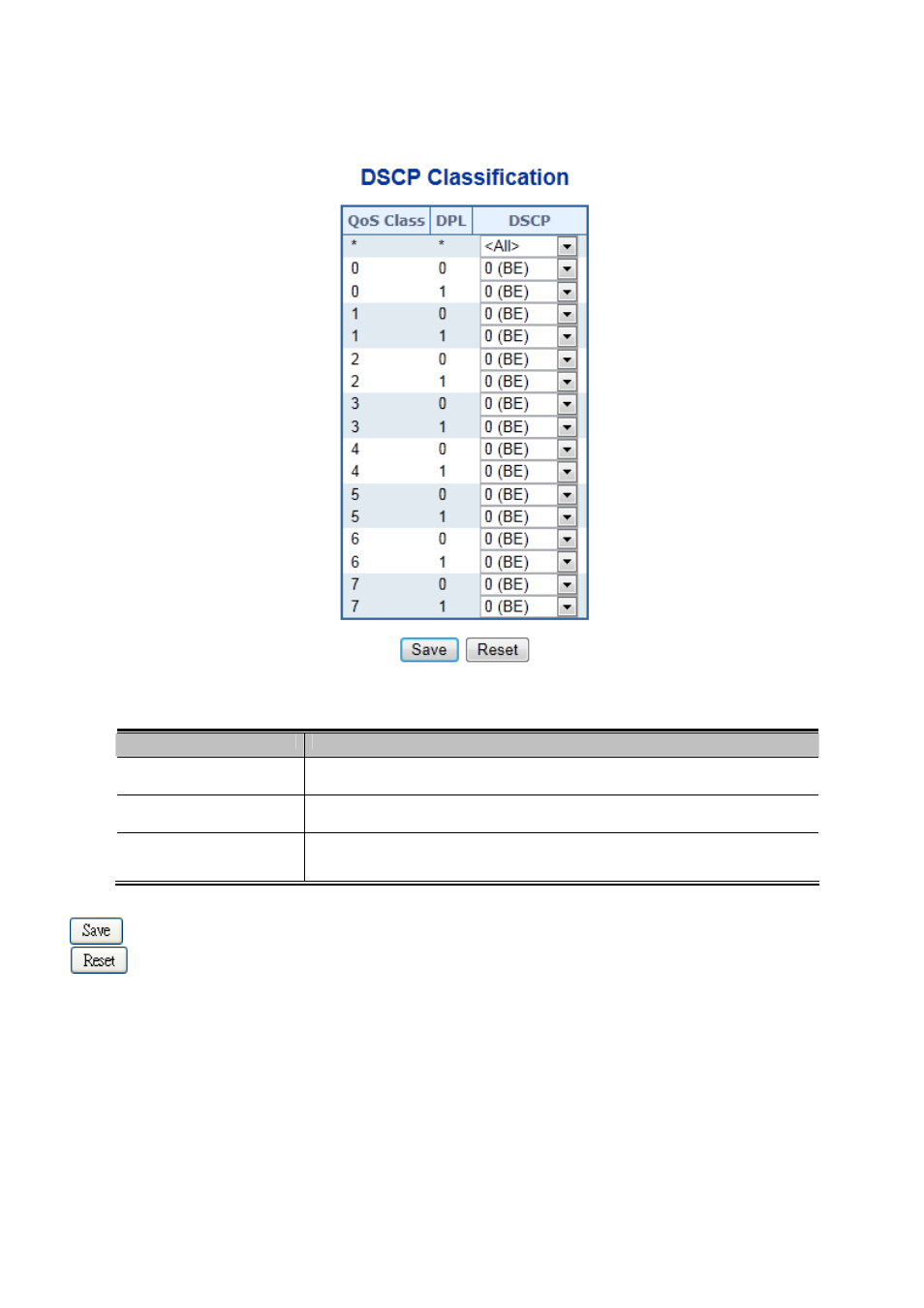

Figure 4-9-12:
DSCP Classification Page Screenshot
The page includes the following fields:
Object
Description
QoS Class
Available QoS Class value ranges from 0 to 7. QoS Class (0-7) can be mapped
to followed parameters.
DPL
Drop Precedence Level (0-1) can be configured for all available QoS Classes.
DSCP
The Configuration All with available values will assign to whole QoS Class.
Select DSCP value (0-63) from DSCP menu to map DSCP to corresponding QoS
Class and DPL value
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.9.11 QoS Control List
This page shows the QoS Control List(QCL), which is made up of the QCEs. Each row describes a QCE that is defined. The
maximum number of QCEs is 256 on each switch.
Click on the lowest plus sign to add a new QCE to the list.
The QoS Control List screen in
Figure 4-9-13
appears.
