: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.2.16 Web Firmware Upgrade
This page facilitates an update on the firmware controlling the Industrial Managed Switch. The Web Firmware Upgrade screen
in
Figure 4-2-19 appears.

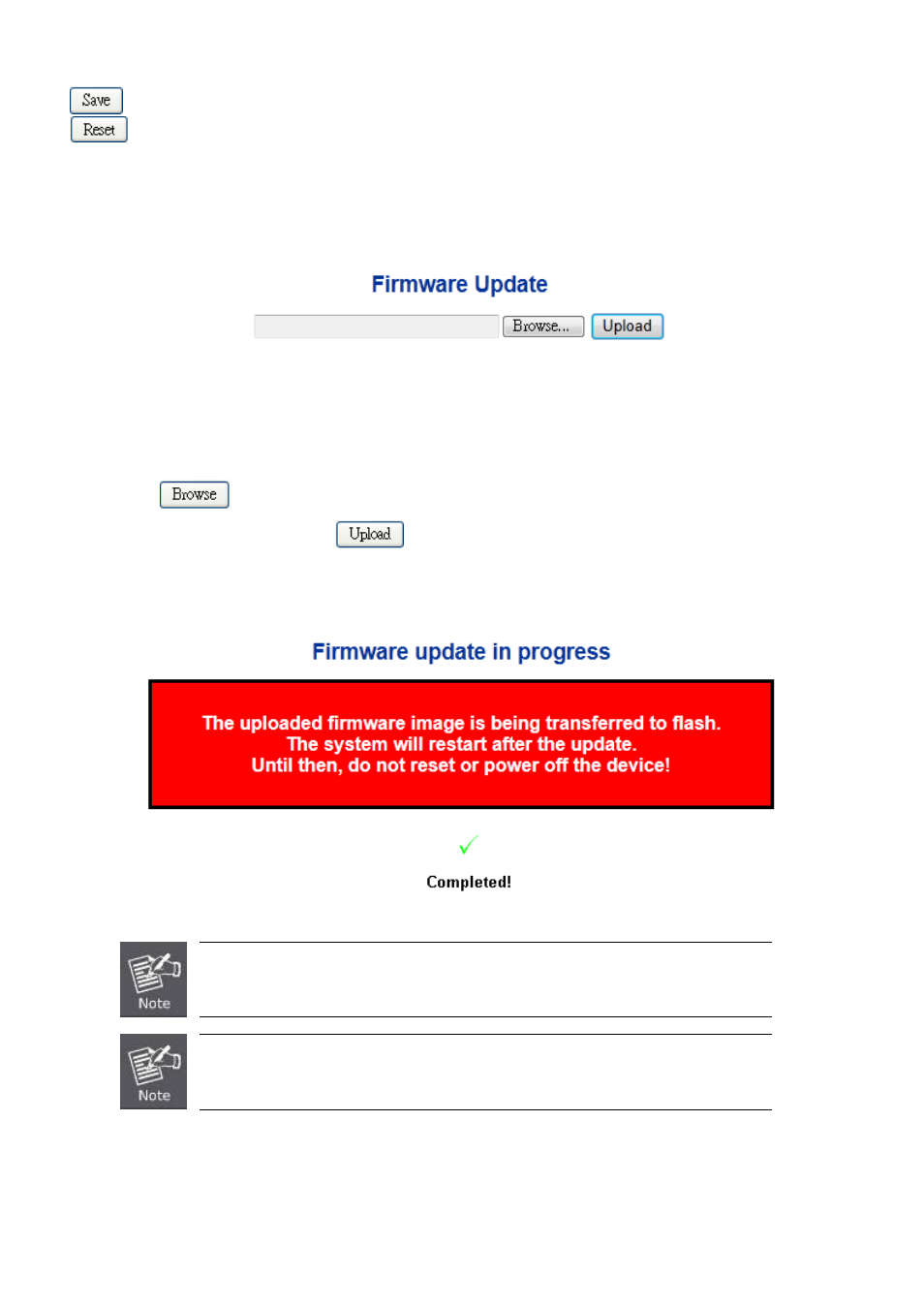

Figure 4-2-19: Web Firmware Upgrade Page Screenshot
To open Firmware Upgrade screen perform the folling:
1. Click System -> Web Firmware Upgrade.
2. The Firmware Upgrade screen is displayed as in Figure 4-2-19 .
3. Click the “ “button of the main page, the system would pop up the file selection menu to choose firmware.
4. Select on the firmware and then click “ ”, the Software Upload Progress would show the file upload status.
5. Once the software is loaded to the system successfully, the following screen appears. The system will load the new
software after reboot.
Figure 4-2-20: Software successfully Loaded Notice Screen
DO NOT Power OFF the Industrial Managed Switch until the update progress is complete.
Do not quit the Firmware Upgrade page without pressing the “OK” button after the image is
loaded. Or the system won’t apply for the new firmware. User has to repeat the firmware
upgrade processes again.
4.2.17 TFTP Firmware Upgrade
The Firmware Upgrade page provides the functions to allow a user to update the Industrial Managed Switch firmware from
the TFTP server in the network. Before updating, make sure you have your TFTP server ready and the firmware image is on the
TFTP server. The TFTP Firmware Upgrade screen in
Figure 4-2-21 appears.
