4.15.3 Remote IP Ping Test

This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues on special port.

After you press “Test”, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon
reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. The
ICMP Ping screen in

Figure 4-15-3

appears.

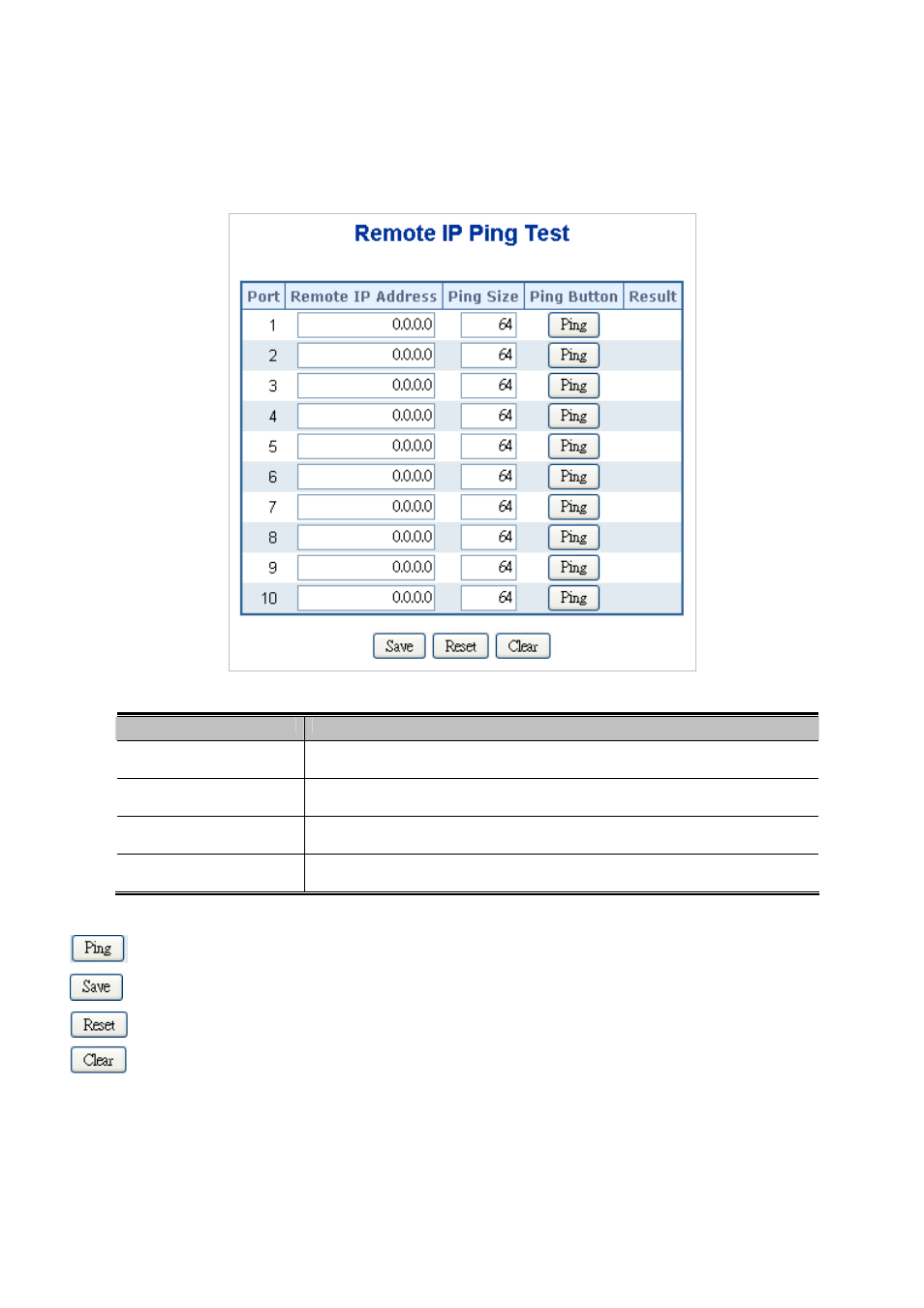

Figure 4-15-3:

Remote IP Ping Test Page Screenshot

The page includes the following fields:

Object

Description

Port

The logical port for the settings.

Remote IP Address

The destination IP Address.

Ping Size

The payload size of the ICMP packet. Values range from 8 bytes to 1400 bytes.

Result

Display the ping result.

Buttons

: Click to start ping process.

: Click to save changes.

:

Click to undo any changes made locally and revert to previously saved values.

: Clears the local counters. All counters (including global counters) are cleared upon reboot.

4.15.4 Cable Diagnostics

This page is used for running the Cable Diagnostics.

Press to run the diagnostics. This will take approximately 5 seconds. If all ports are selected, this can take approximately 15
seconds. When completed, the page refreshes automatically, and you can view the cable diagnostics results in the cable status
table. Note that Cable Diagnostics is only accurate for cables of length 7 - 140 meters.
