User’s Manual of NS3550-8T-2S

264

Priority

Priority is the Layer 2 priority to be used for the specified application type.One of
eight priority levels (0 through 7)

DSCP

DSCP is the DSCP value to be used to provide Diffserv node behavior for the
specified application type as defined in IETF RFC 2474. Contain one of 64 code
point values (0 through 63).

Auto-negotiation

Auto-negotiation

identifies if MAC/PHY auto-negotiation is supported by the link

partner.

Auto-negotiation

status

Auto-negotiation status

identifies if auto-negotiation is currently enabled at the

link partner. If Auto-negotiation is supported and Auto-negotiation status is
disabled, the 802.3 PMD operating mode will be determined the operational MAU
type field value rather than by auto-negotiation.

Auto-negotiation

Capabilities

Auto-negotiation Capabilities

shows the link partners MAC/PHY capabilities.


Buttons
Auto-refresh

: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.

: Click to refresh the page immediately.

4.14.5 Neighbor

This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an
LLDP neighbor is detected. The LLDP Neighbor Information screen in

Figure 4-14-4

appears.

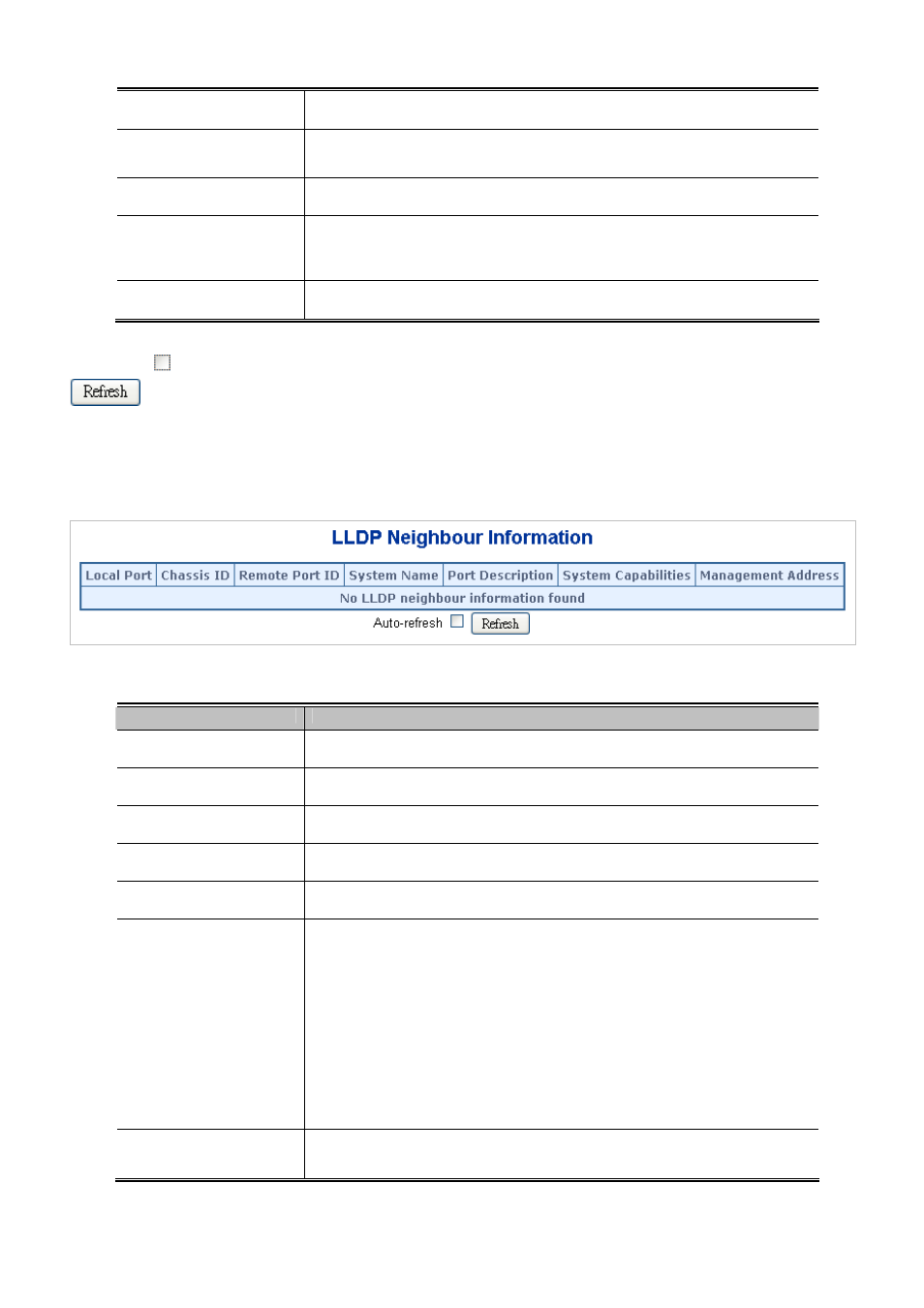

Figure 4-14-4:

LLDP Neighbor Information Page Screenshot

The page includes the following fields:

Object

Description

Local Port

The port on which the LLDP frame was received.

Chassis ID

The Chassis ID is the identification of the neighbor's LLDP frames.

Remote Port ID

The Remote Port ID is the identification of the neighbor port.

System Name

System Name is the name advertised by the neighbor unit.

Port Description

Port Description is the port description advertised by the neighbor unit.

System Capabilities

System Capabilities describes the neighbor unit's capabilities. The possible
capabilities are:

1. Other
2. Repeater
3. Bridge
4. WLAN Access Point
5. Router
6. Telephone
7. DOCSIS cable device
8. Station only
9. Reserved

When a capability is enabled, the capability is followed by (+). If the capability is
disabled, the capability is followed by (-).

Management Address

Management Address is the neighbor unit's address that is used for higher layer
entities to assist the discovery by the network management. This could for
instance hold the neighbor's IP address.


Buttons
