4.17.8 RMON History Details
This page provides details of RMON history entries; screen in Figure 4-17-8 appears.

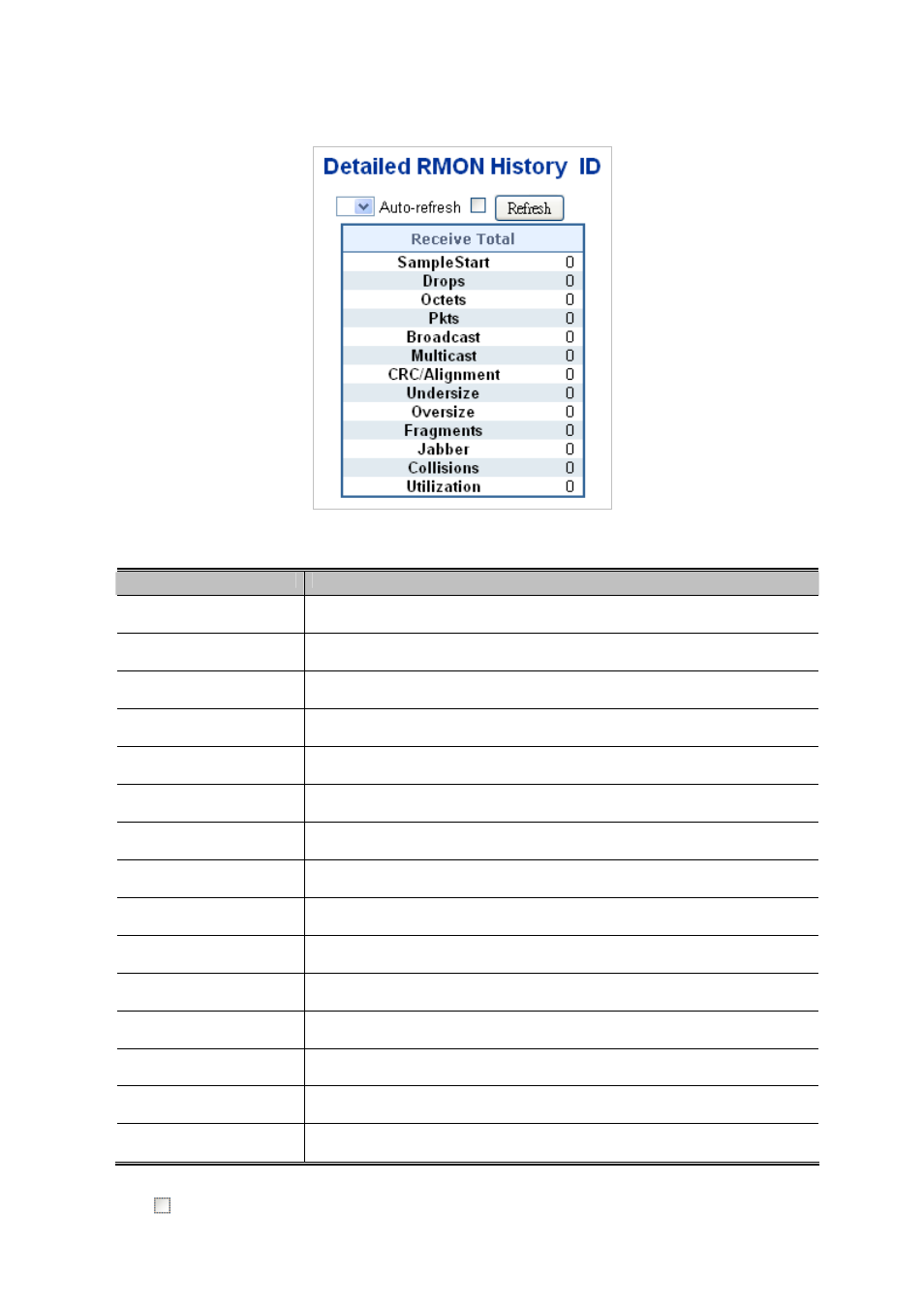

Figure 4-17-8: RMON history detailed page screenshot
The page includes the following fields:
Object Description
 History Index Indicates the index of History control entry.
 Sample Index Indicates the index of the data entry associated with the control entry
 Sample Start The total number of events in which packets were dropped by the probe due to
lack of resources.
 Drops The total number of events in which packets were dropped by the probe due to
lack of resources.
 Octets The total number of octets of data (including those in bad packets) received on
the network.
 Pkts The total number of packets (including bad packets, broadcast packets, and
multicast packets) received.
 Broadcast The total number of good packets received that were directed to the broadcast
address.
 Multicast The total number of good packets received that were directed to a multicast
address.
 CRC / Alignment The total number of packets received that had a length (excluding framing bits,
but including FCS octets) of between 64 and 1518 octets.
 Undersize The total number of packets received that were less than 64 octets.
 Oversize The total number of packets received that were longer than 1518 octets.
 Fragments The number of frames which size is less than 64 octets received with invalid
CRC.
 Jabber The number of frames which size is larger than 64 octets received with invalid
CRC.
 Collisions The best estimate of the total number of collisions on this Ethernet segment.
 Utilization The best estimate of the mean physical layer network utilization on this interface
during this sampling interval, in hundredths of a percent.
Buttons
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
