42
 Logging on the Industrial Managed Switch
1. Use Internet Explorer 7.0 or above Web browser and enter the factory-default IP address to access the Web interface.
The factory-default IP Address is as follows:
http://192.168.0.100
2. When the following login screen appears, please enter the default username "admin" with password “admin” (or the
username/password you have changed via console) to login the main screen of Industrial Managed Switch. The login
screen in
Figure 4-1-2 appears.

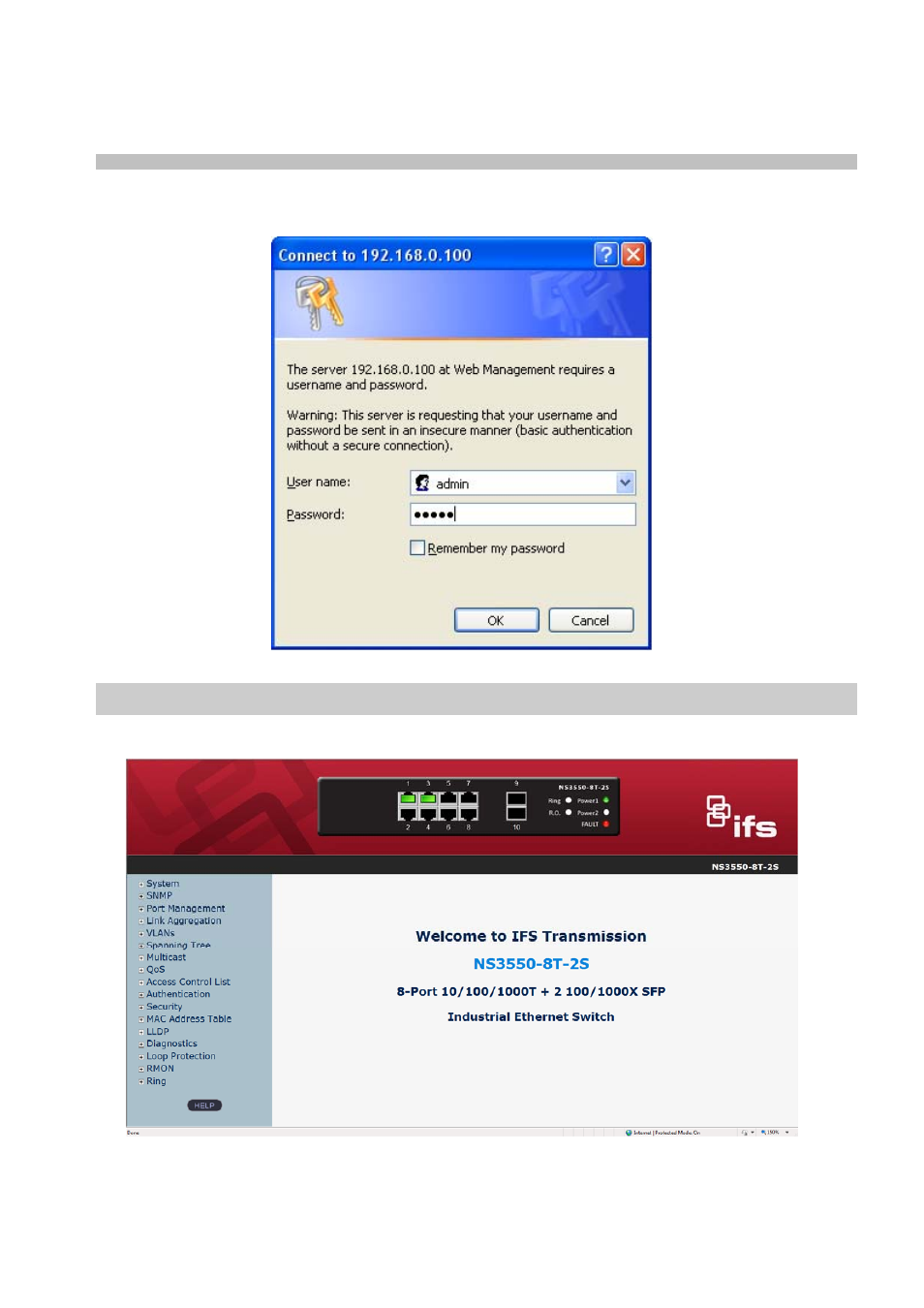

Figure 4-1-2: Login Screen
Default User name: admin
Default Password: admin
After entering the username and password, the main screen appears as Figure 4-1-3 .
Figure 4-1-3: Default Main Page
Now, you can use the Web management interface to continue the switch management or manage the Industrial Managed
Switch by Web interface. The Switch Menu on the left of the web page let you access all the commands and statistics the
Managed Switch provides.
