4.9.7 Port DSCP
This page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. The Port DSCP screen in
Figure 4-9-9 appears.

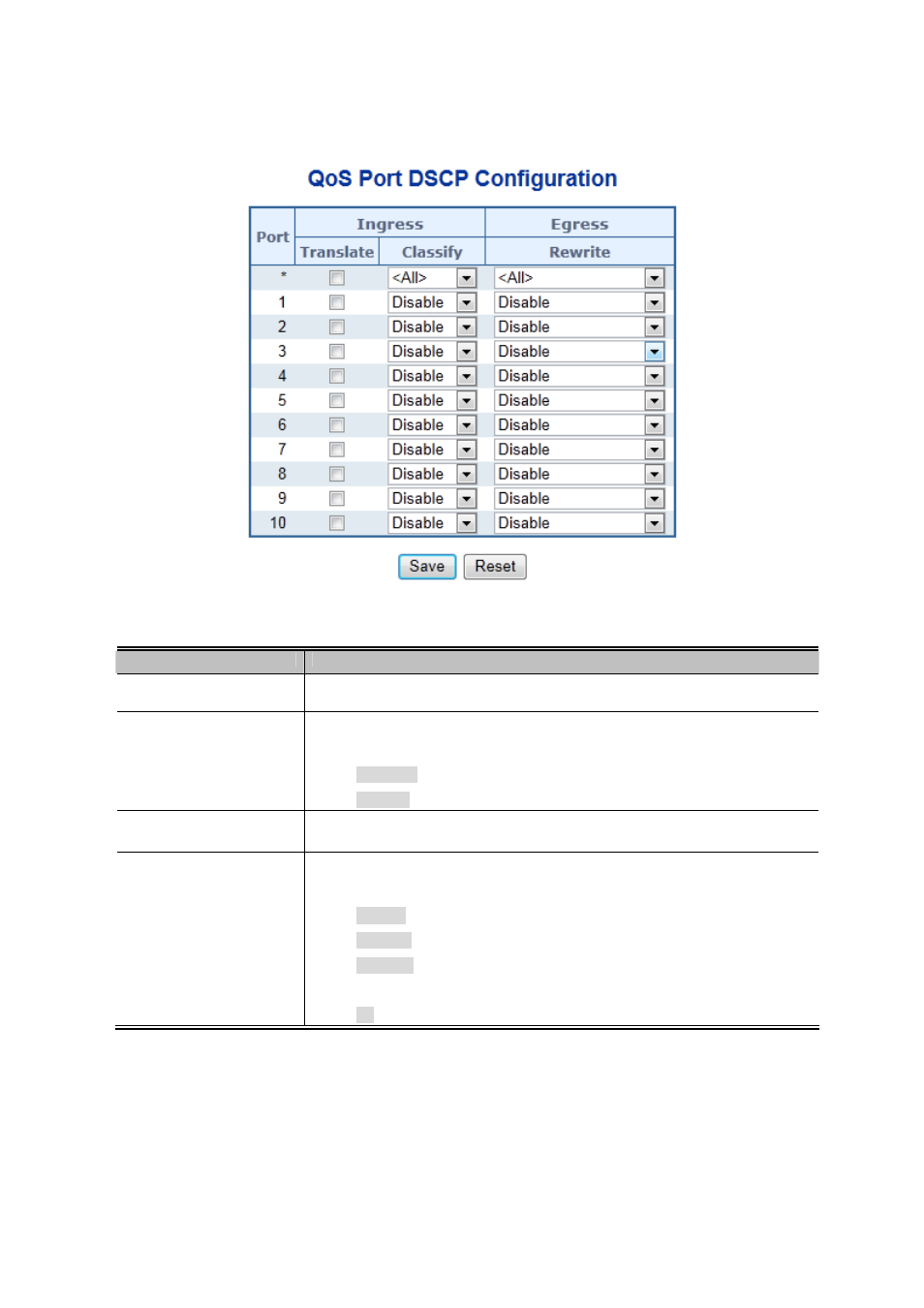

Figure 4-9-9 : QoS Port DSCP Configuration Page Screenshot
The page includes the following fields:
Object Description
 Port The Port coulmn shows the list of ports for which you can configure dscp ingress
and egress settings.
 Ingress In Ingress settings you can change ingress translation and classification settings
for individual ports.
There are two configuration parameters available in Ingress:
 Translate
 Classify
 Translate
To Enable the Ingress Translation click the checkbox. * means to select all ports
of Industrial Managed Switch.
 Classify The Configuration All with available options will assign to whole ports.
Classification for a port has 4 different values. All means all ports will have one
specific setting.
 Disable: No Ingress DSCP Classification.
 DSCP=0: Classify if incoming (or translated if enabled) DSCP is 0.
 Selected: Classify only selected DSCP for which classification is enabled
as specified in DSCP Translation window for the specific DSCP.
 All: Classify all DSCP.
