Authorized : The port is in Force Authorized or a single-supplicant mode and
the supplicant is authorized.

Unauthorized : The port is in Force Unauthorized or a single-supplicant
mode and the supplicant is not successfully authorized by the RADIUS
server.

X Auth/Y Unauth : The port is in a multi-supplicant mode. Currently X clients
are authorized and Y are unauthorized.
 Restart Two buttons are available for each row. The buttons are only enabled when
authentication is globally enabled and the port's Admin State is in an
EAPOL-based or MAC-based mode.
Clicking these buttons will not cause settings changed on the page to take effect.

Reauthenticate : Schedules a reauthentication to whenever the quiet-period
of the port runs out (EAPOL-based authentication). For MAC-based
authentication, reauthentication will be attempted immediately.
The button only has effect for successfully authenticated clients on the port and
will not cause the clients to get temporarily unauthorized.

Reinitialize : Forces a reinitialization of the clients on the port and thereby a
reauthentication immediately. The clients will transfer to the unauthorized
state while the reauthentication is in progress.
Buttons
: Click to refresh the page.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.11.4 Network Access Overview
This page provides an overview of the current NAS port states for the selected switch. The Network Access Overview screen in
Figure 4-11-5 appears.

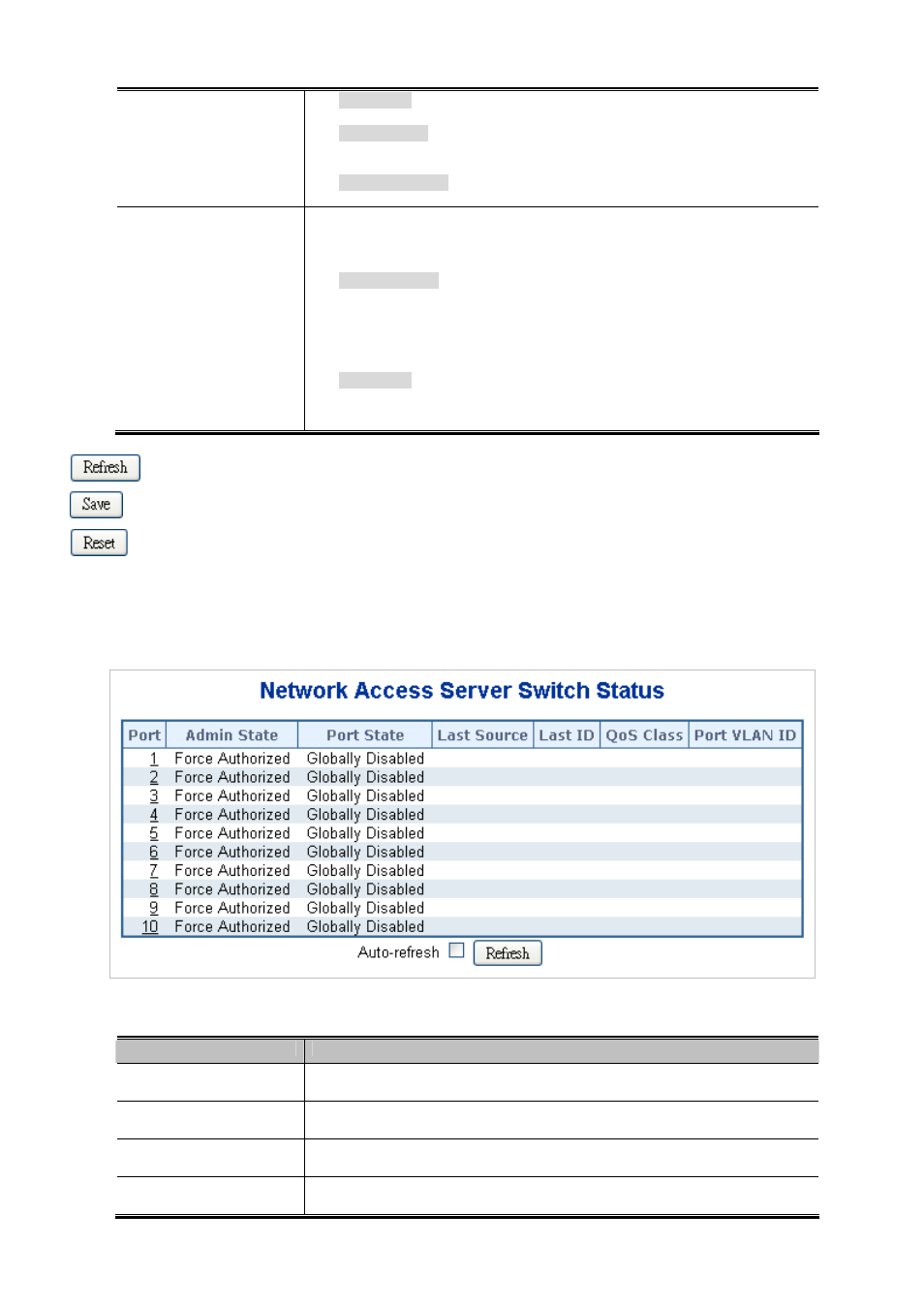

Figure 4-11-5: Network Access Server Switch Status Page Screenshot
The page includes the following fields:
Object Description
 Port The switch port number. Click to navigate to detailed NAS statistics for this port.
 Admin State The port's current administrative state. Refer to NAS Admin State for a
description of possible values.
 Port State The current state of the port. Refer to NAS Port State for a description of the
individual states.
 Last Source The source MAC address carried in the most recently received EAPOL frame for
EAPOL-based authentication, and the most recently received frame from a new
