User’s Manual of NS3550-8T-2S
293

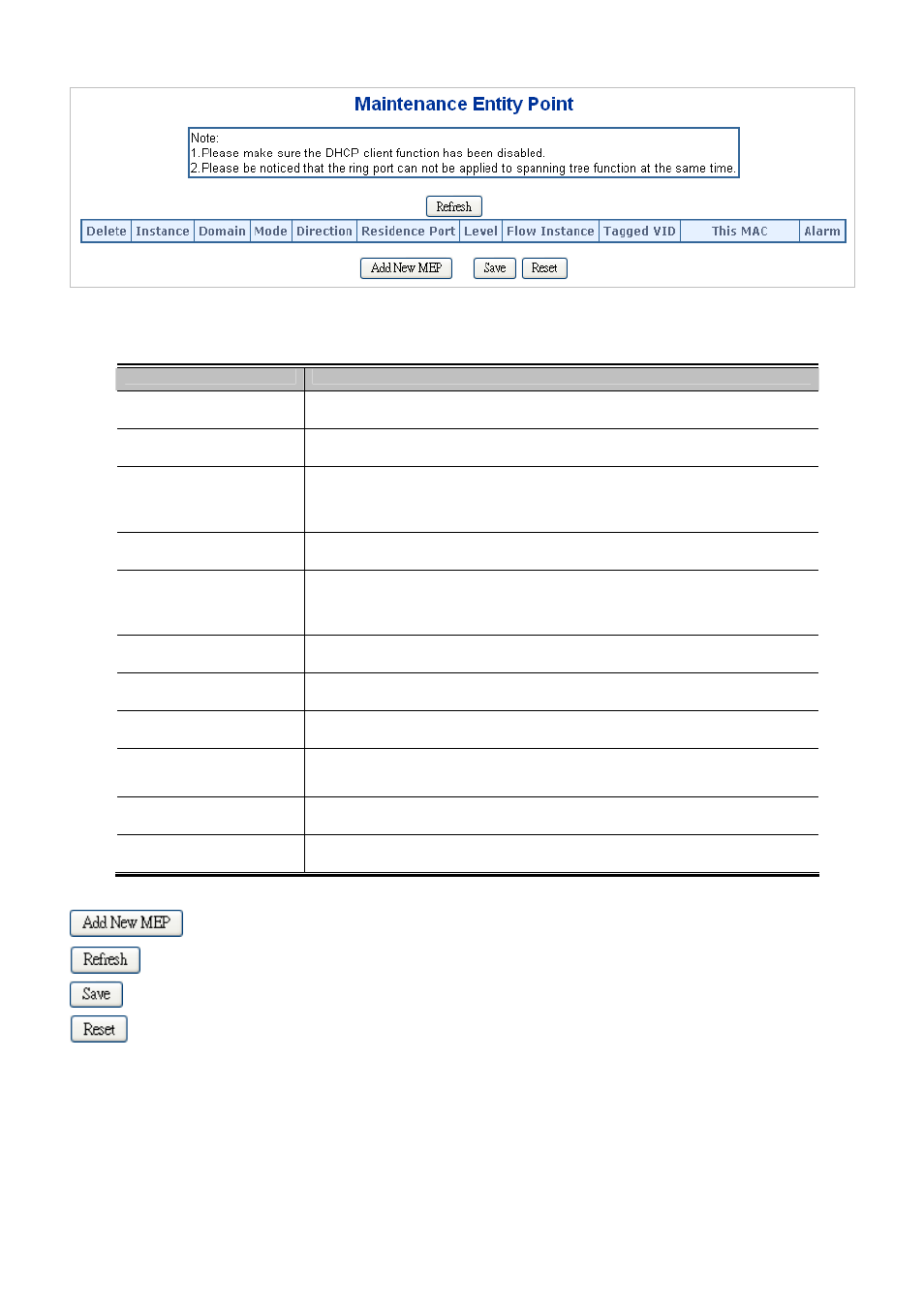

Figure 4-19-1: MEP configuration page screenshot
The page includes the following fields:
Object Description
 Delete This box is used to mark a MEP for deletion in next Save operation.
 Instance The ID of the MEP. Click on the ID of a MEP to enter the configuration page.
 Domain  Port: This is a MEP in the Port Domain. 'Flow Instance' is a Port.
 Esp: Future use
 Evc: This is a MEP in the EVC Domain. 'Flow Instance' is a EVC
 Mpls: Future use
 Mode  MEP: This is a Maintenance Entity End Point.

MIP : This is a Maintenance Entity Intermediate Point.
 Direction  Ingress: This is a Ingress (down) MEP - monitoring ingress traffic on
'Residence Port'.
 Egress: This is a Egress (up) MEP - monitoring egress traffic on 'Residence
Port'.
 Residence Port The port where MEP is monitoring - see 'Direction'.
 Level The MEG level of this MEP.
 Flow Instance The MEP is related to this flow - See 'Domain'.
 Tagged VID Port MEP : An outer C/S-tag (depending on VLAN Port Type) is added with this
VID.
Entering '0' means no TAG added.
 This MAC The MAC of this MEP - can be used by other MEP when unicast is selected (Info
only).
 Alarm There is an active alarm on the MEP.
Buttons
: Click to add a new MEP entry
: Click to refresh the page immediately.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.19.2 Detailed MEP Configuration
This page allows the user to inspect and configure the current MEP Instance.; screen in Figure 4-19-2 appears.
