4.8.17 MVR SFM Information

Entries in the MVR SFM Information Table are shown on this page. The MVR SFM (Source-Filtered Multicast) Information Table
also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by
Port. Different source addresses belong to the same group are treated as single entry.
The MVR Groups Information screen in

Figure 4-8-20

appears.

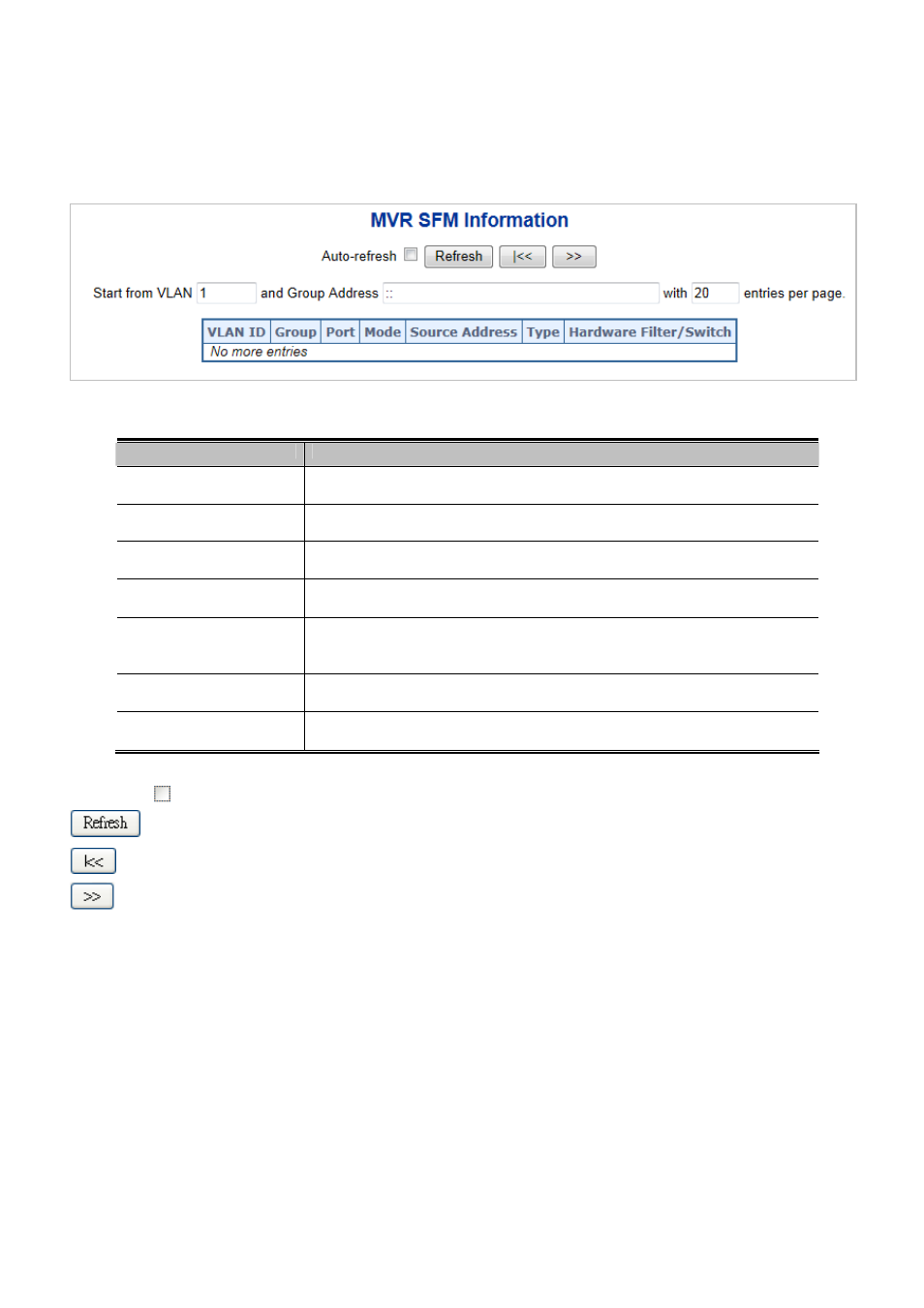

Figure 4-8-20:

MVR Groups Information Page Screenshot


The page includes the following fields:

Object

Description

VLAN ID

VLAN ID of the group.

Group

Group ID of the group displayed.

Port

Switch port number.

Mode

Indicates the filtering mode maintained per (VLAN ID, port number, Group
Address) basis. It can be either Include or Exclude.

Source Address

IP Address of the source. Currently, system limits the total number of IP source
addresses for filtering to be 128. When there is no any source filtering address,
the text "None" is shown in the Source Address field.

Type

Indicates the Type. It can be either Allow or Deny.

Hardware Filter /

Switch

Indicates whether data plane destined to the specific group address from the
source IPv6 address could be handled by chip or not.


Buttons
Auto-refresh

: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.

: Click to refresh the page immediately.

: Updates the table starting from the first entry in the MVR SFM Information Table.

: Updates the table, starting with the entry after the last entry currently displayed.
