User’s Manual of NS3550-8T-2S

67

configuration including syntax descriptions is included in the file. The file may then be modified using an editor and loaded to a
Industrial Managed Switch

.

The examples below show a small configuration file only including configuration of the MAC address age time and the learning
mode per port. When loading this file, only the included parameters will be changed. This means that the age time will be set to
200 and the learn mode will be set to automatic.

Save Configuration

1. Press

the

Save Configuration

button to save the current configuration in manager workstation. The following screens in

Figure 4-2-23

&

4-2-24

appear

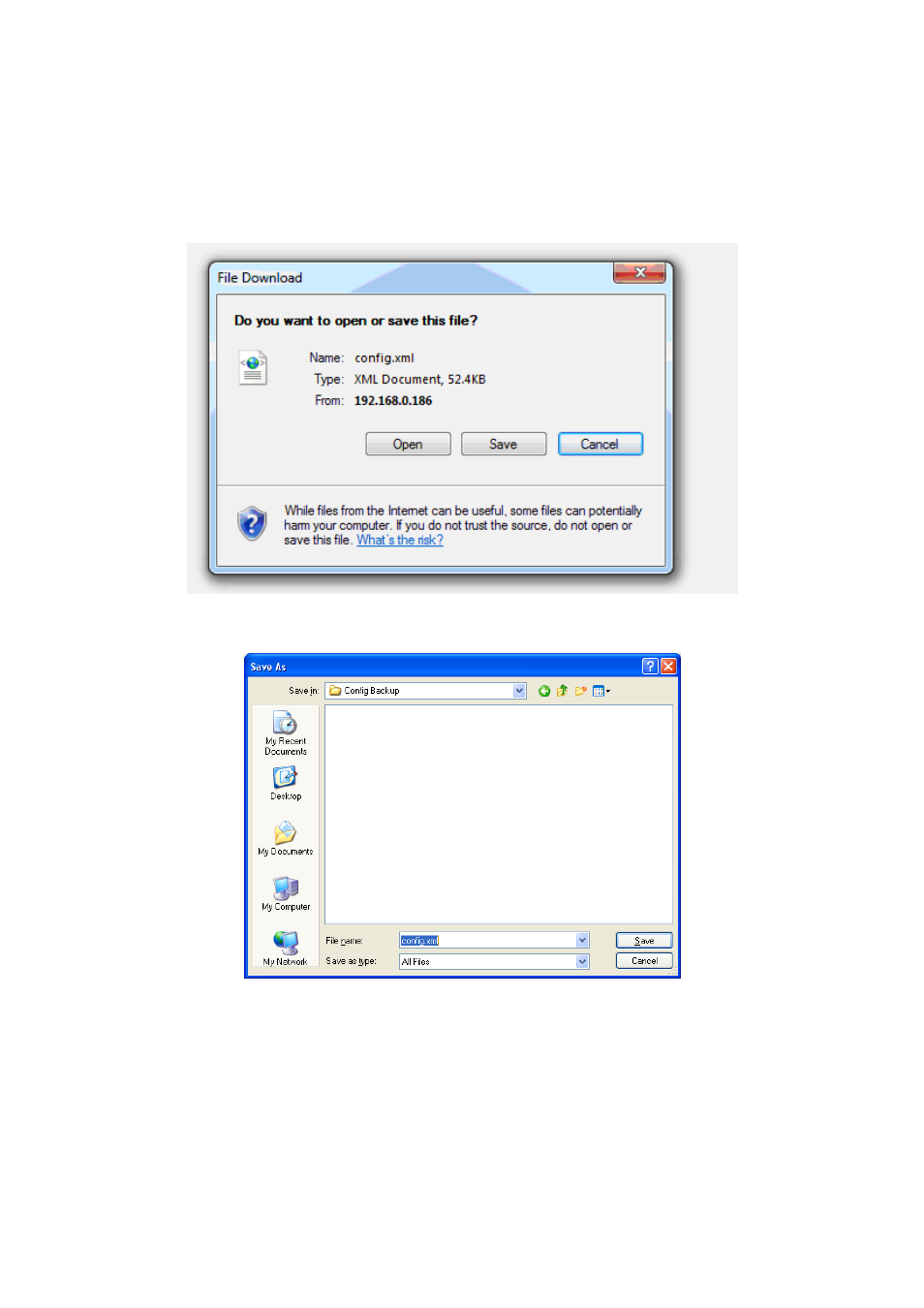

Figure 4-2-23:

File Download Screen

2. Choose the file save path in management workstation.

Figure 4-2-24:

File Save Screen
