Case 3:
Axis already stands on reference switch:
1. Movement in negative direction with profile data set 2.
2. Negative edge of the reference switch activates touch probe detection.
3. The following positive edge of the encoder zero pulse/touch probe sensor sets the
4. Absolute positioning to target position (C02643) with profile data set 2 (if
= "0").
CiA402 Homing method 08
Processes:
Case 1:
Axis does not activate reference switch on the way to the limit switch:
1. Movement in positive direction with profile data set 1.
2. Reversing to positive travel range limit switch.
3. Positive edge of the reference switch activates profile data set 2.
4. Reversing with negative edge of reference switch.
5. Positive edge of the reference switch activates touch probe detection.
6. The following positive edge of the encoder zero pulse/touch probe sensor sets the
7. Absolute positioning to target position (C02643) with profile data set 2 (if
= "0").

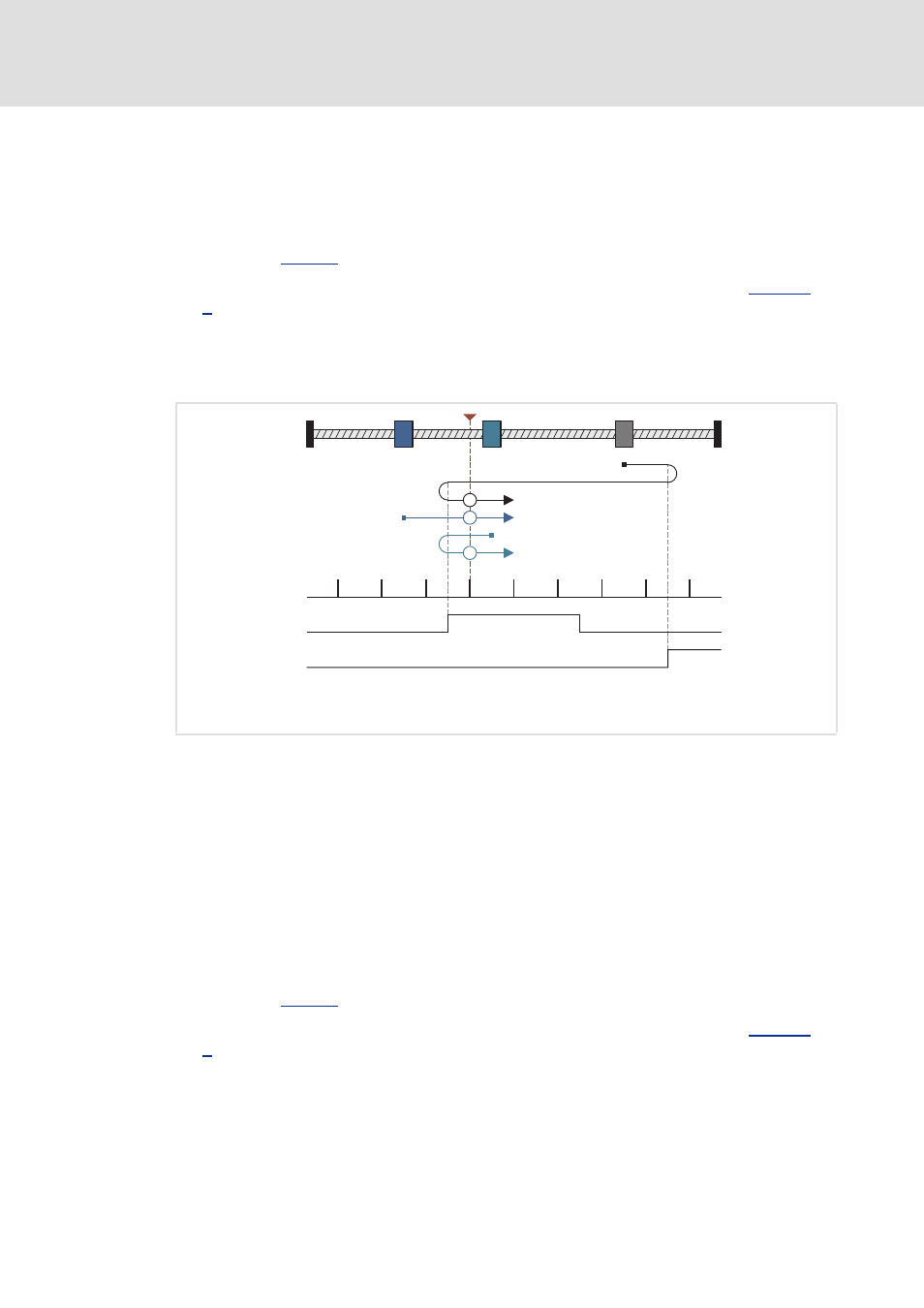

Touch probe/zero pulse
Reference switch
Positive travel range limit switch
1
3
2
0
1
2
