9400 Technology applications | CiA402 device profile
Parameter setting & configuration
Homing mode

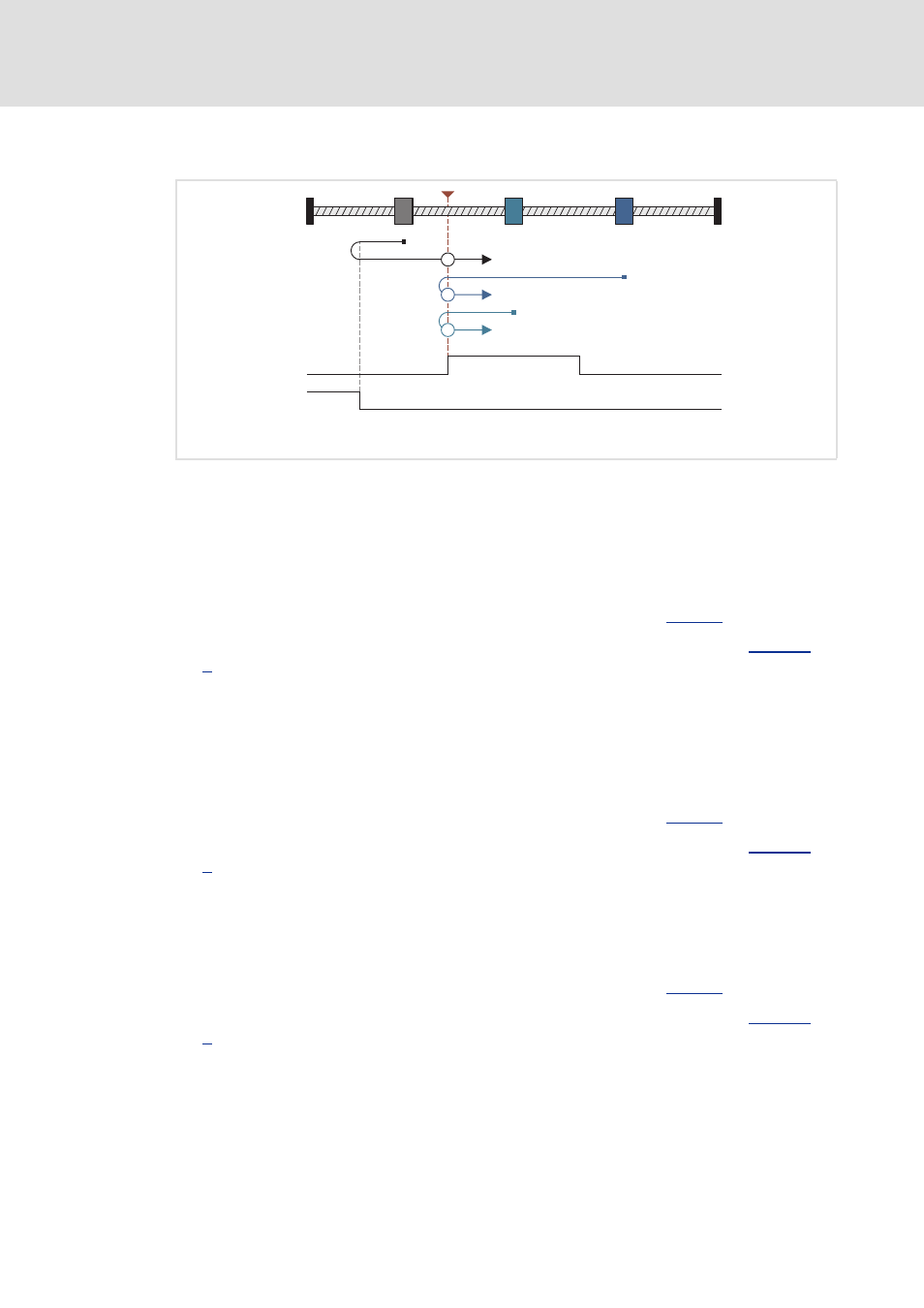

CiA402 Homing method 29
Processes:
Case 1:
Axis does not activate reference switch on the way to the limit switch:
1. Movement in negative direction with profile data set 1.
2. Reversing to negative travel range limit switch.
3. The following positive edge of reference switch sets reference (
).
4. Absolute positioning to target position (C02643) with profile data set 2 (if
= "0").
Case 2:
Axis activates reference switch first on the way to the limit switch:
1. Movement in negative direction with profile data set 1.
2. Positive edge of the reference switch activates profile data set 2.
3. Reversing with negative edge of reference switch.
4. The following positive edge of reference switch sets reference (
).
5. Absolute positioning to target position (C02643) with profile data set 2 (if
= "0").
Case 3:
Axis already stands on reference switch:
1. Movement in negative direction with profile data set 2.
2. Reversing with negative edge of reference switch.
3. The following positive edge of reference switch sets reference (
).
4. Absolute positioning to target position (C02643) with profile data set 2 (if
= "0").
Homing switch
Negative travel range limit switch
1
3
2
0
1
