Port View

5–20

Web Tools Version 3.0.x/4.0.x User Guide

Loop Tab

The Loop tab provides information about any loop on the port, including the
following:

Loop statistics

Local AL_PA statistics

If the port is not a loop-enabled port, the following information displays: “Not an
L_Port. No loop info available.” The Loop tab is shown in Figure 5–8.

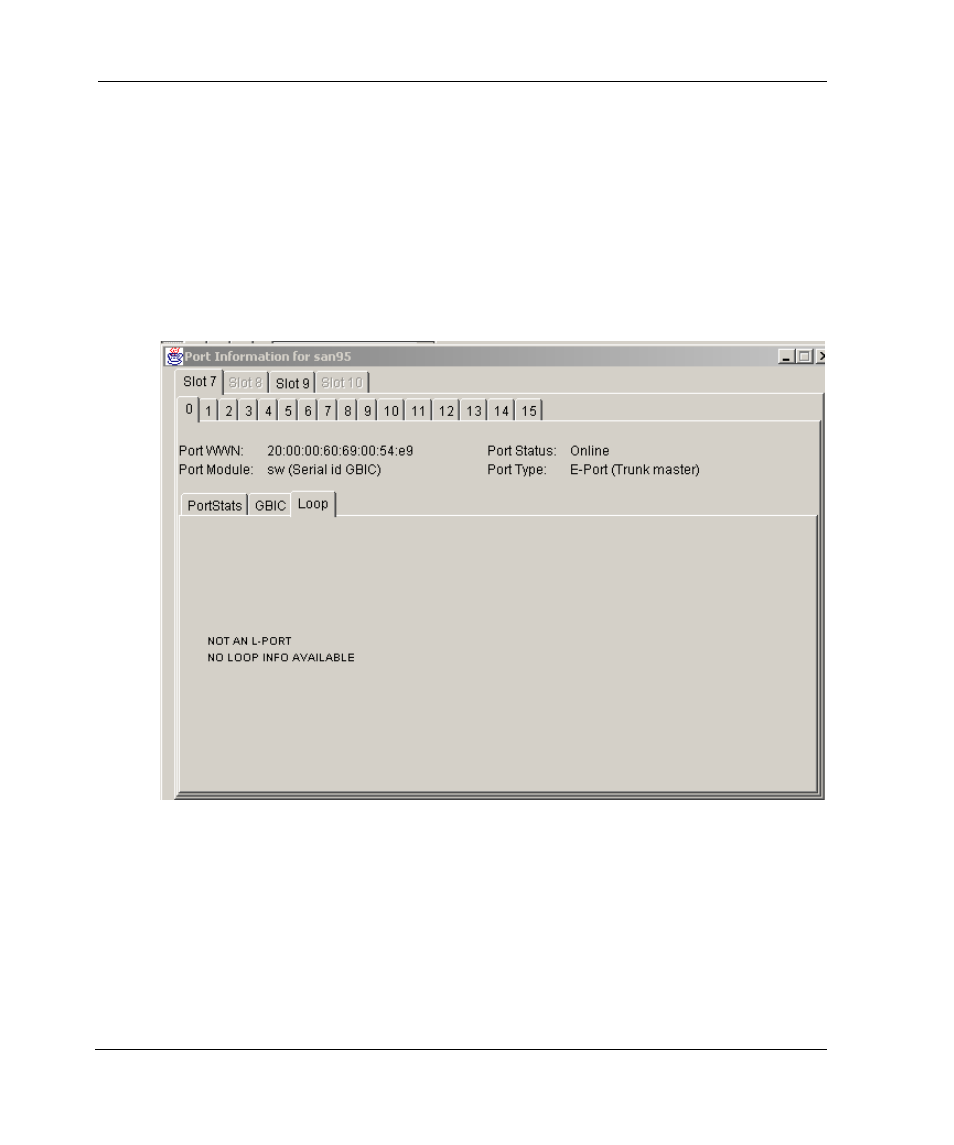

Figure 5–8: The Loop tab in the Port Information view
