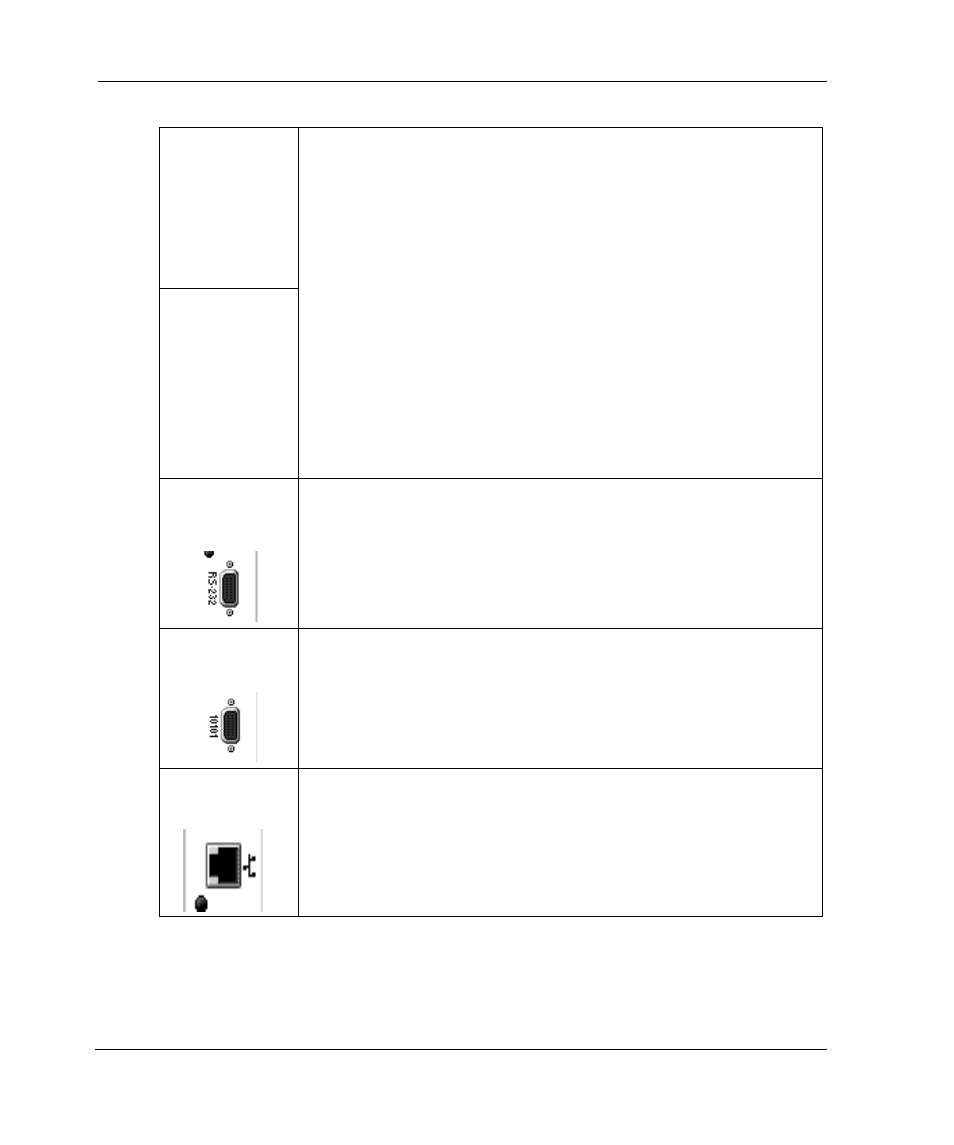

Switch View

4–4

Web Tools Version 3.0.x/4.0.x User Guide

Speed LED
(Upper)
Green=2G
Black=1G

(round light
next to each
port)

Displays the status LED color, which indicates the status of the
port.

No light - No device attached.

Steady yellow - Receiving light, but not online; check cable
connections.

Slowly flashing yellow - Disabled (diagnostics or portDisable
command).

Rapidly flashing yellow - Error, fault with port.

Steady green - Online (connected with device by cable).

Slowly flashing green - Online but segmented (loopback
cable or incompatible switch).

Rapidly flashing green - internal loopback (diagnostic)

Flickering green - Online and transmitting/receiving frames.

Yellow green - Bypass

Status LED
(Lower)

(round light
next to each
port)

Connector
Icon

Displays RS-232 Connector.

Connector
Icon

Displays Serial Port Connector.

Connector
Icon

Displays Ethernet Connector.
