Switch View
4–33 Web Tools Version 3.0.x/4.0.x User Guide 4–33

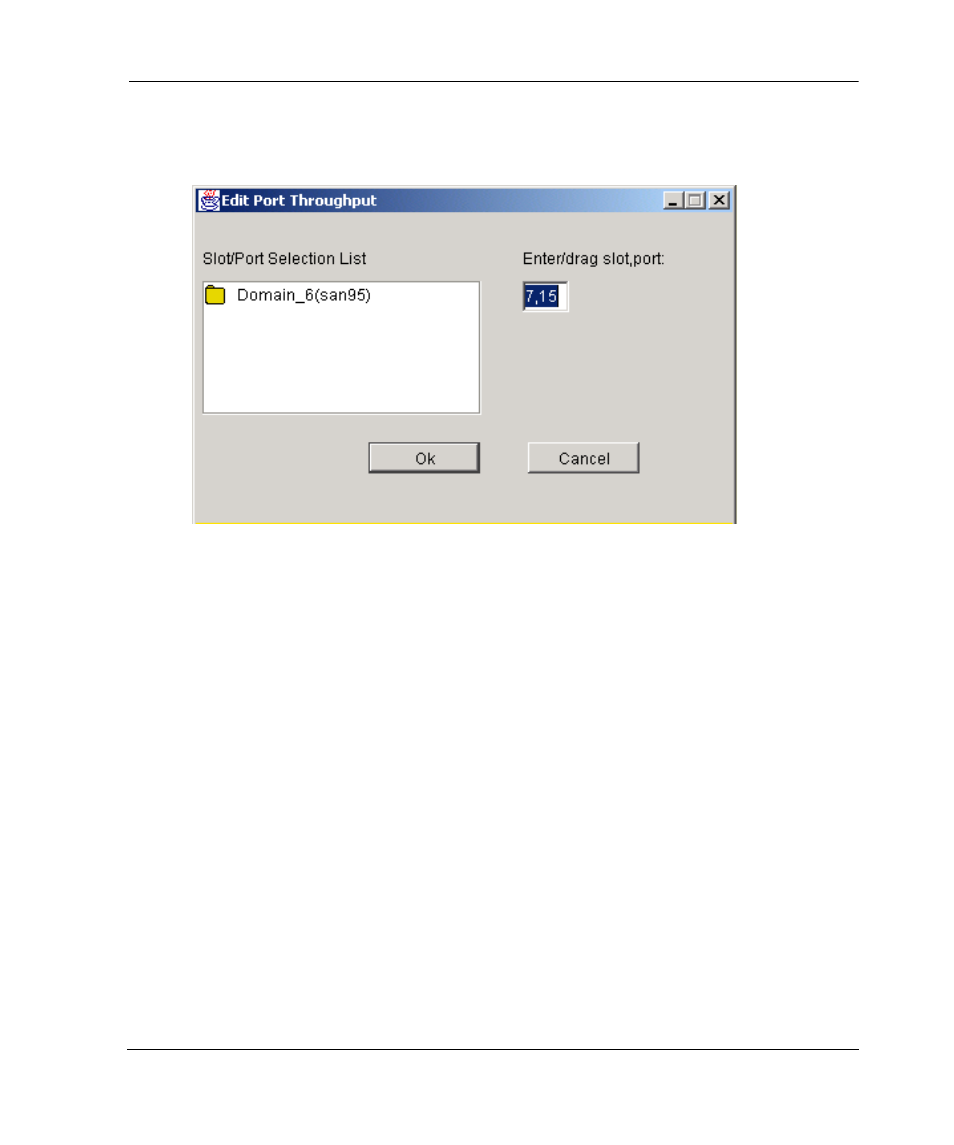

Figure 4–22 is an example of the data entry frame that displays when the Edit Canvas
button is selected.
Figure 4–22: Edit Port Throughput window
To choose the port to be graphed or configured:
1. Double-click on the folder in the Port Selection List window.
A drop-down list of ports will appear.
2. Select the port that you want to monitor or change by using one of the following
methods:
• Type the slot and port number in the Enter /Drag slot/port window.
• Drag the port “file” from the Port Selection window to the Enter/Drag Port
Number window.
3. Select OK.
Save Current Canvas Configuration
The Save Current Canvas Configuration menu saves the currently configured canvas to
the switch. It uses a canvas name and a brief description to save the canvas.
To access the Save Current Canvas Configuration menu:
1. Select the Performance icon (from the Switch View).
