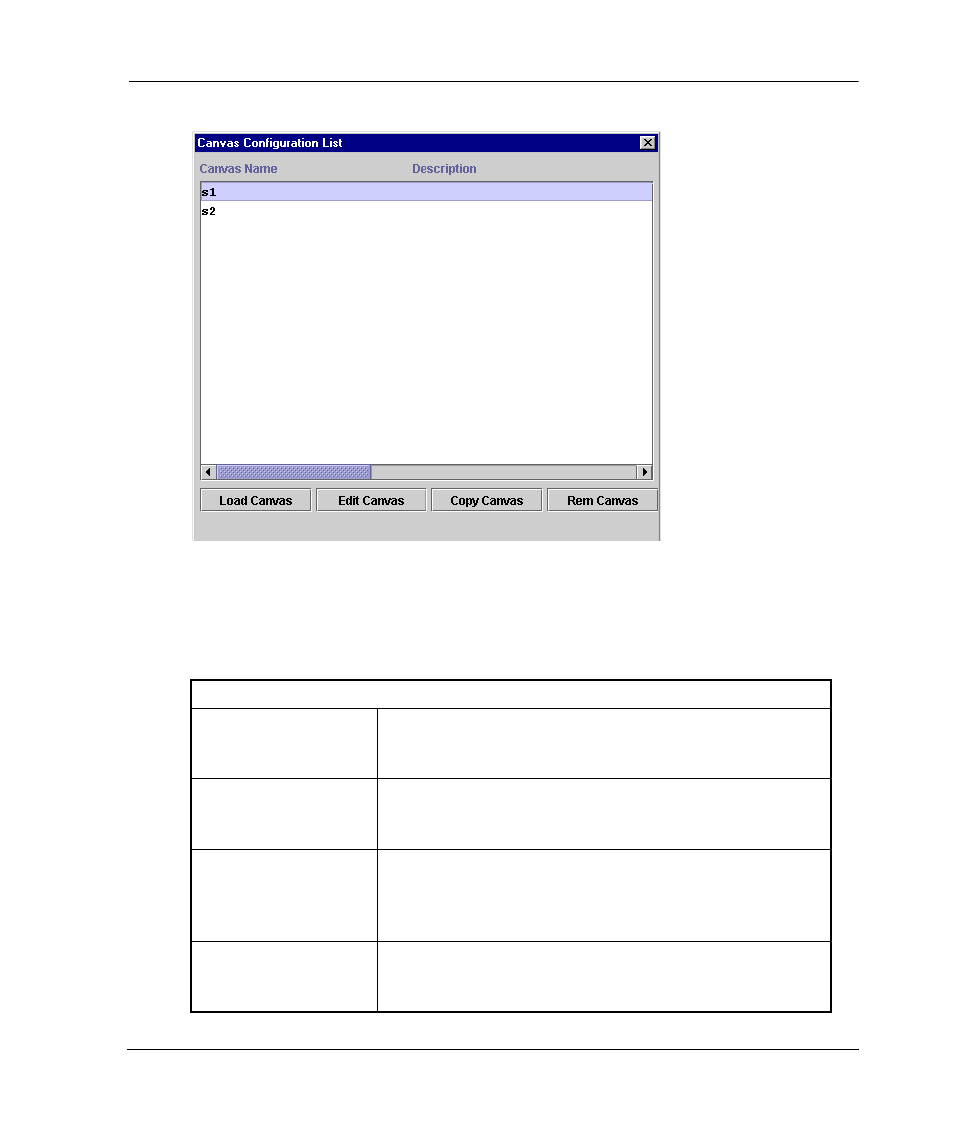

Figure 4–21: Canvas Configuration List window
Table 4–9 contains descriptions of the fields available using Display Canvas
Configurations.
Table 4–9: Display Canvas Configurations Fields
Available in Canvas Configuration List:
Load Canvas
Select to load a canvas of 1 to 8 graphs onto the
Performance Monitor facility by choosing the
highlighted canvas name.
Edit Canvas
Select to make changes to a canvas or change
configurations. A list of graphs which comprise the
highlighted canvas will appear.
Copy Canvas
Select to copy the highlighted canvas configuration
from the list to the switch flash. You will be prompted to
type in the name and description of the canvas to which
you want to copy your chosen graph.
Rem Canvas
Select to remove a highlighted canvas from the list and
the switch flash. You will be prompted with a warning
that you are going to delete the selected canvas.
