Switch View

4–18

Web Tools Version 3.0.x/4.0.x User Guide

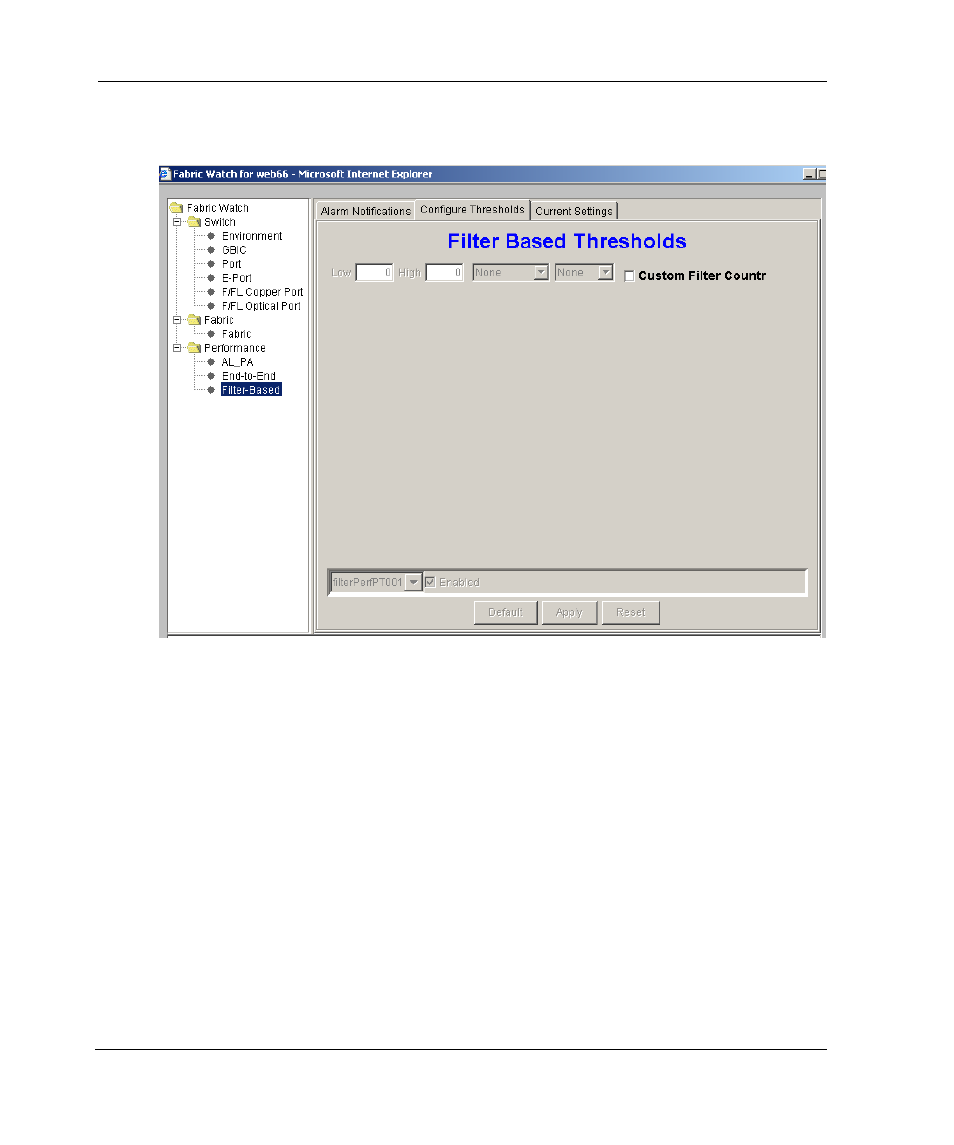

The Configure Thresholds tab is shown in Figure 4–10.

Figure 4–10: Configure Threshold tab with Filter-Based Class selected in
Performance view

Current Settings Tab

Use the Current Settings tab to view the current Fabric Watch threshold parameters for
the area selected in the Fabric Watch tree.

The Current Settings tab is shown in Figure 4–11.
