Fabric watch view v4.0.x (optional software), Accessing fabric watch view, Fabric watch view v4.0.x (optional software) –19 – HP StorageWorks 2.32 SAN Switch User Manual
Page 175: Accessing fabric watch view –19, Current settings tab in the fabric watch view –19

Switch View
4–19
Web Tools Version 3.0.x/4.0.x User Guide
4–19

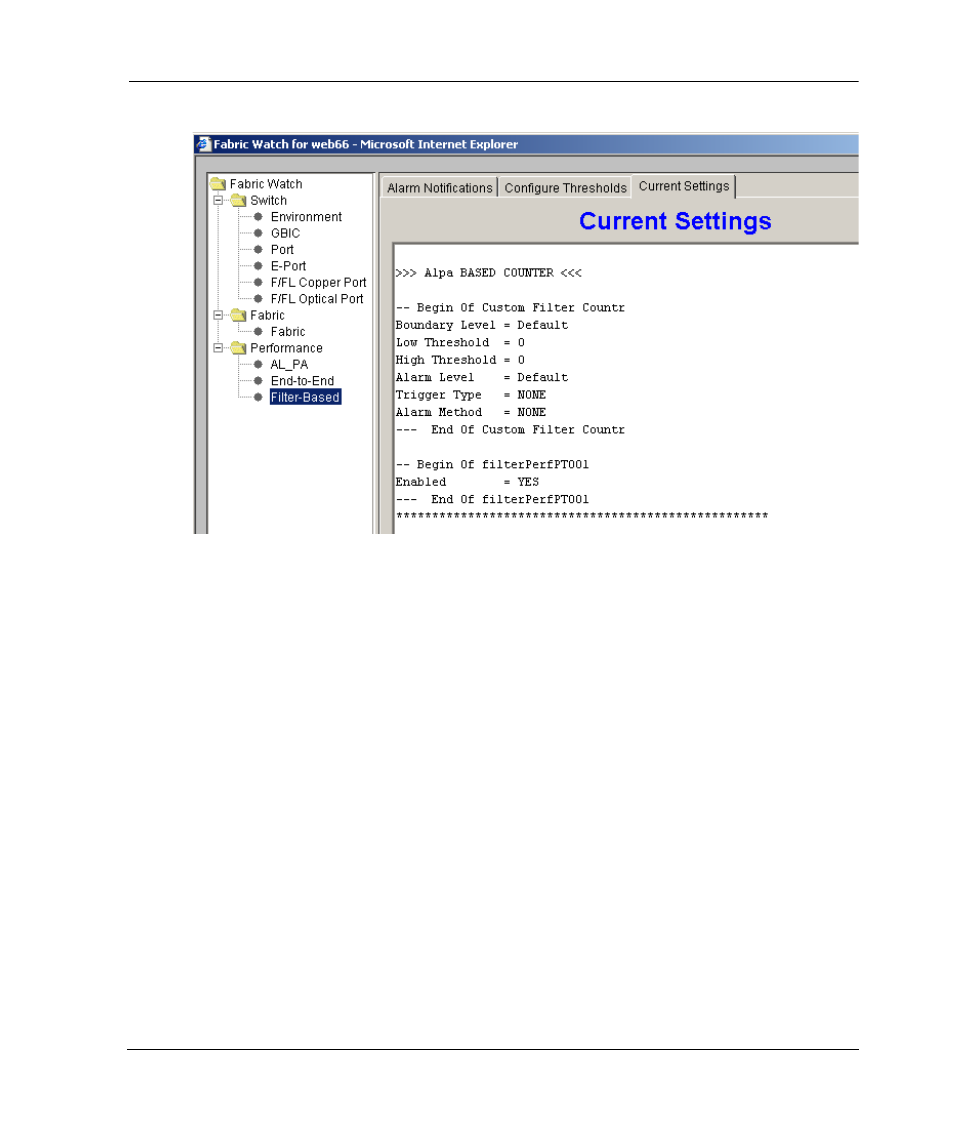

Figure 4–11: Current Settings tab in the Fabric Watch view
Fabric Watch View V4.0.x (Optional Software)
Use Fabric Watch View to monitor fabric elements for potential problem conditions.
This feature requires an active Fabric Watch license. The Fabric Watch View requires
the user to have administrative privileges. For detailed information about Fabric
Watch, refer to the HP StorageWorks Fabric Watch Version 3.0.x/4.0.x User Guide.
For information regarding Fabric Watch V3.0.x in Web Tools, see “Fabric Watch View
V3.0.x (Optional Software)” on page 4–8.
Accessing Fabric Watch View
1. Launch Web Tools, displaying Fabric View.
2. Select a Switch icon.
The Switch View displays.
3. Select the Watch icon.
