Switch View

–83

Web Tools Version 3.0.x/4.0.x User Guide

4–83

Extended Fabric Tab (Optional Software)

Use the Extended Fabric tab to manage the Extended Fabric feature. From the
Extended Fabric tab you can specify which ports are to be configured for distance and
at what level. The Extended Fabric tab appears only when the Extended License is
installed on the switch. For ports that are disabled, the rows appear grayed-out in the
table within the Extended Fabric tab. The Extended Fabric tab is shown in
Figure 4–58.

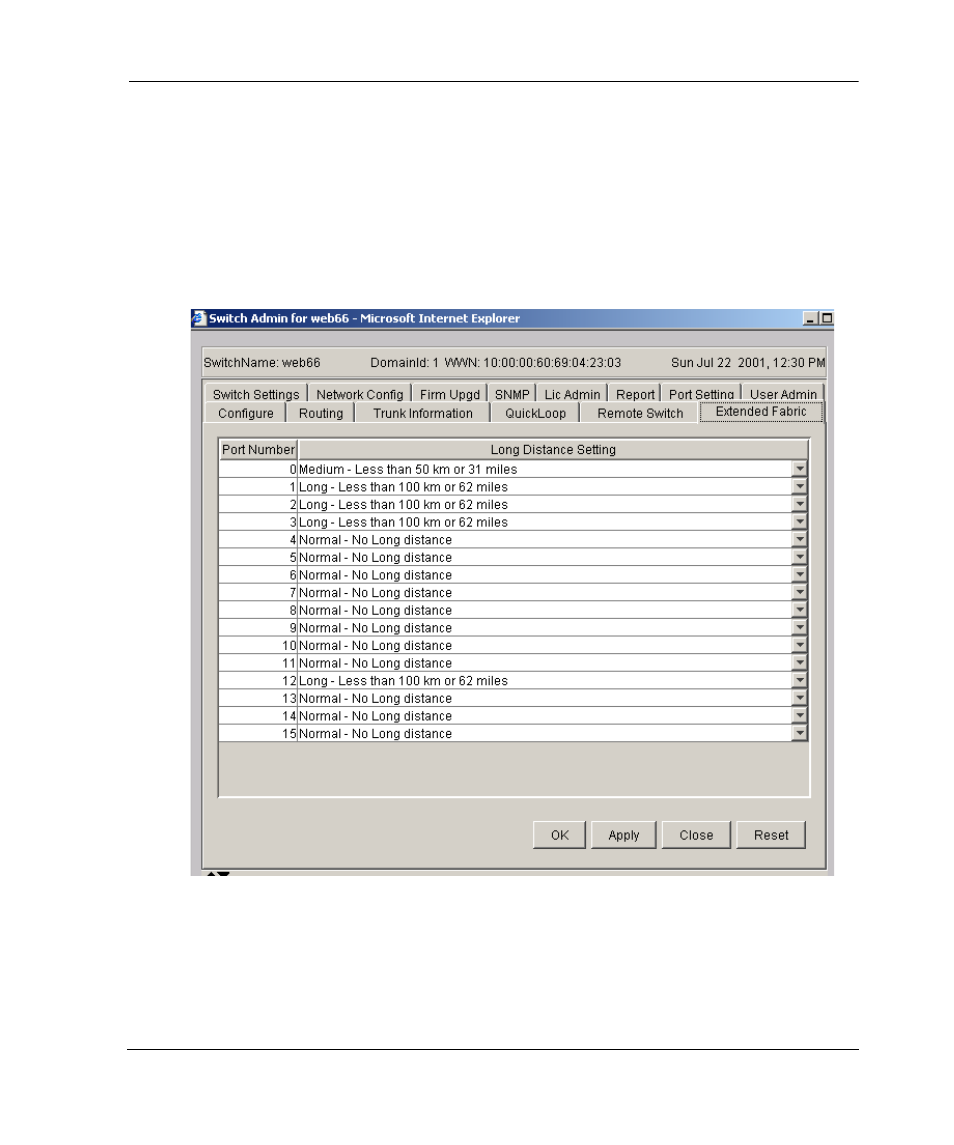

Figure 4–58: Extended Fabric tab
