Figure 1-1: fabric view, Switch view, Switch view –5 – HP StorageWorks 2.32 SAN Switch User Manual
Page 25: Fabric view –5, Figure 1–1

Introducing Web Tools
1–5
Web Tools Version 3.0.x/4.0.x User Guide
1–5
NOTE: Switch status is
calculated approximately once every 15 seconds; however the initial
display does not occur until 30-60 seconds after the switch is booted. It is calculated from the
state of data structures in the switch, and stored as the variable switchStatus.
NOTE: For all statuses that are based on errors per time interval, any errors will not cause the
status to show faulty until the entire sample interval has passed.
See Figure 1–1 for an example of Fabric View. For information about the functions
that are accessible through Fabric View, see “Fabric View” on page 3–1.

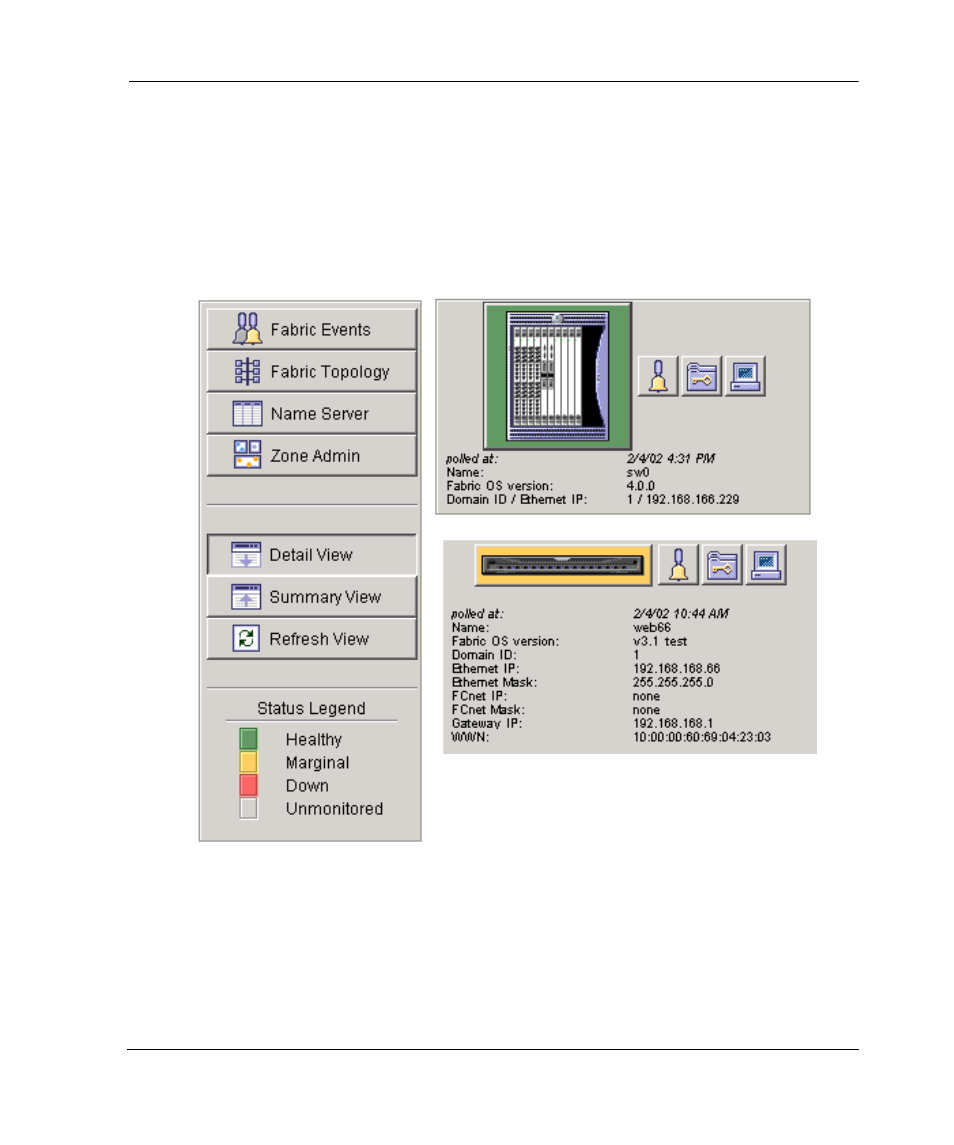

Figure 1–1: Fabric View
Switch View
Displays information about individual switches, including a real-time view of switch
status. Accessed by selecting the switch icon on a switch panel. The Switch View is
also the launch point for the Switch Events View, Telnet Interface, Fabric Watch View,
