Switch View

4–20

Web Tools Version 3.0.x/4.0.x User Guide

The Enter Network Password window displays. Login may not be required if the
user has previously logged in elsewhere.

4. Type in Administrative Username and Password.

The Fabric Watch View displays, with the Alarm Notifications tab (described in
the following section) selected by default.

Fabric Watch View Tabs

Alarm Notifications

Threshold Configuration

In addition, an organizational tree appears on the left, showing all the Fabric Watch
classes regardless of which tab is selected. To expand or contract a folder in the tree,
double-click the folder.

Alarm Notifications Tab

Use the Alarm Notifications tab to view the Fabric Watch notifications.

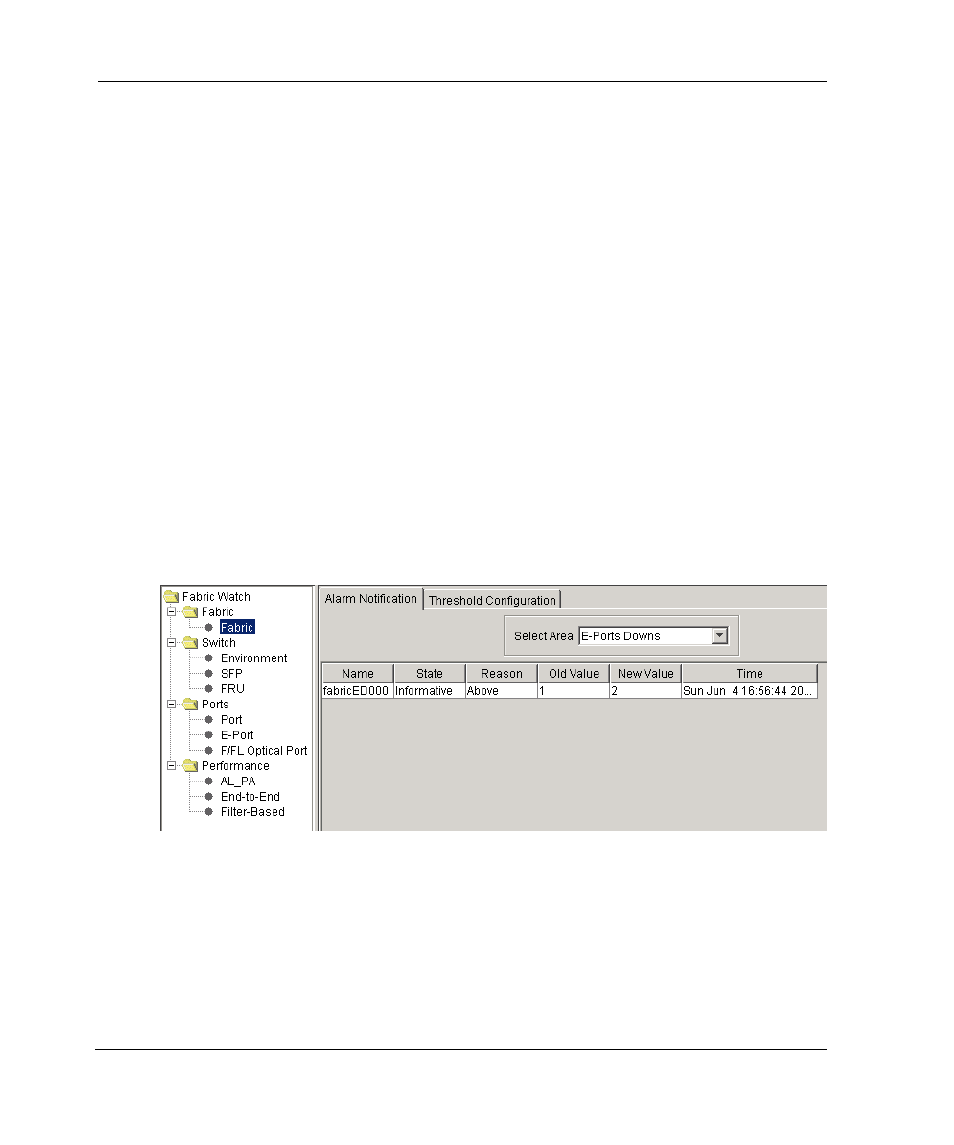

The Alarm Notifications tab is shown in Figure 4–12.

Figure 4–12: The Alarm Notifications tab in the Fabric Watch view
