Switch View

4–42

Web Tools Version 3.0.x/4.0.x User Guide

To choose the port that you want to graph:

1. Double-click on the folder in the Port Selection List window.

A drop-down list of ports appears.

2. Select the port that you want to monitor or change by using one of the following

methods:

Type the port number in the Enter /Drag Port Numbers window.

Drag the port “file” from the Port Selection window to the Enter/Drag Port
Number window.

NOTE: For 4.0.x, it is required that the slot/port combination is entered.

3. Select OK.

A graph displaying the CRC errors for the chosen port will be displayed.

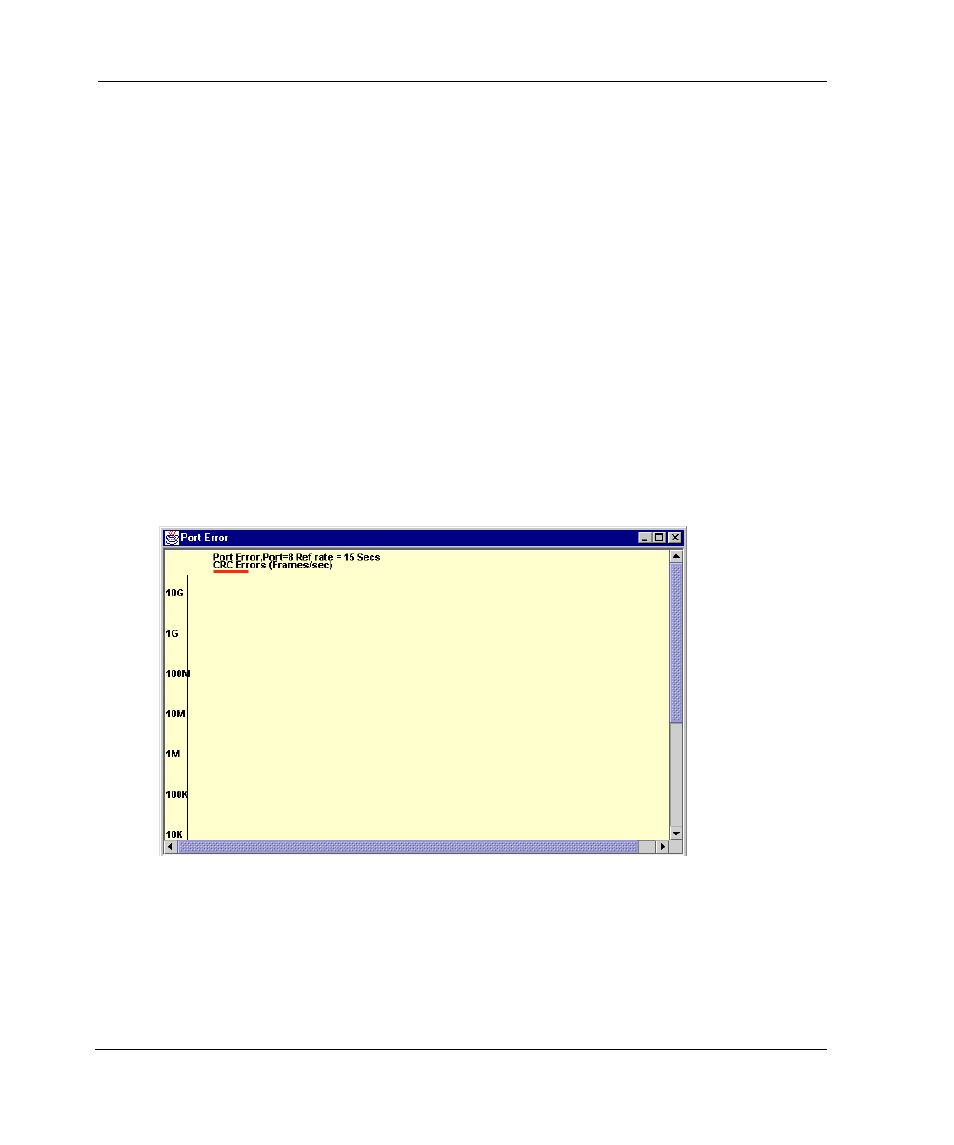

An example of a Port Error Graph, displaying a line of CRC errors for a given port, is
shown in Figure 4–32.

Figure 4–32: Port Error graph example
