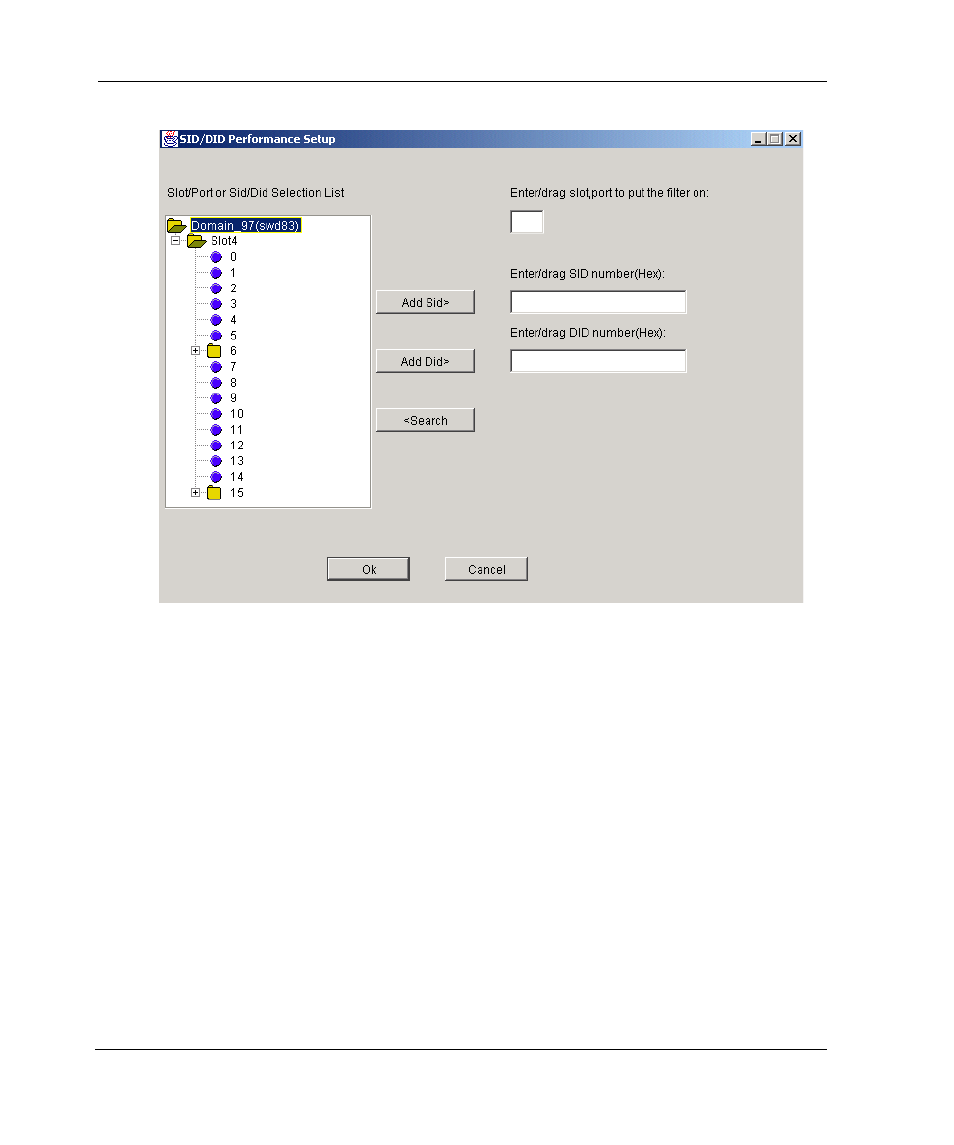

Figure 4–42: SID/DID Performance Setup data entry window

To choose the port and SID/DID that you want to graph:

1. Double-click on a folder in the Slot/Port Selection List window.

A drop-down list of slot/ports appears.

2. Select the slot/port that you want to monitor or change by using one of the

following methods:

•

Type the slot/port number in the Enter /Drag Slot, Port Numbers window.

•

Drag the slot/port “folder” from the Port Selection window to the Enter/Drag
Slot, Port Number window.

3. Select the slot/port “folder”, or the small icon that appears next to it. A drop-down

list of SID/DID files appears.

4. Select the SID/DID numbers that you want to graph by using one of the following

methods:
