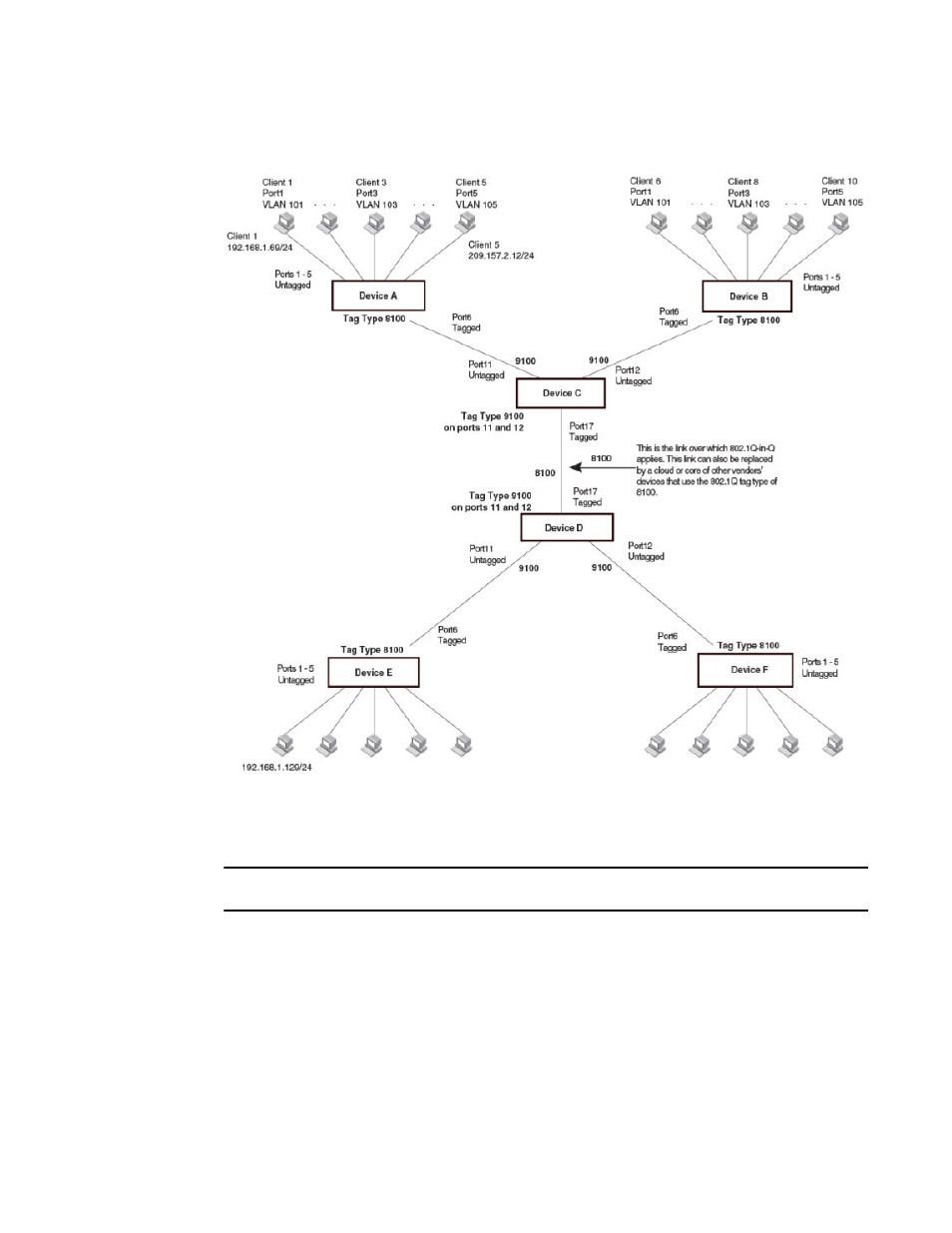

FIGURE 90 Example 802.1ad configuration

Configuring 802.1ad tag profiles

NOTE
802.1ad tag profiles are not supported on FastIron X Series devices.

The 802.1ad tagging feature supports a tag-profile command that allows you to add a tag profile with a
value of 0 to 0xffff in addition to the default tag-type 0x8100. This enhancement also allows you to add a
tag profile for a single port, or to direct a group of ports to a globally-configured tag profile.

Configuration notes for 802.1ad tagging

• One global tag profile with a number between 0 and 0xffff can be configured on stackable devices.
• On individual ports, if tag-profile is enabled, it points to the global tag profile.
Tag-profile can also be enabled for provisional ports.

Configuring 802.1ad tag profiles
